Categories | Fiber Optic Attenuator |
---|---|
Brand Name: | Fujioptics |
Model Number: | Fuji-A005 |
Certification: | ROHS ,ISO ,CE |
Place of Origin: | MADE IN CHINA |
MOQ: | 100pcs |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000pcs |
Delivery Time: | 5-10 working days |
Packaging Details: | PE Bag and carton |
Model Number:: | MTP/MPO Loopback attenuator |
Connector: | MTP/MPO Standard, Elite/Lowloss) |
Ferrule type: | 12F, 16F, 24F, 32F |
End face:: | PC or APC optional |
Fiber Mode:: | SM (G657A2) or MM (OM4 BI, OM3BI) |
Link loss tolerance between channels:: | (1-25) dB ± 0.5 dB |
Insert Loss:: | ≤1.5dB (SM), ≤1.0dB (MM) |
Return Loss:: | SM APC >60dB, MM >25dB |

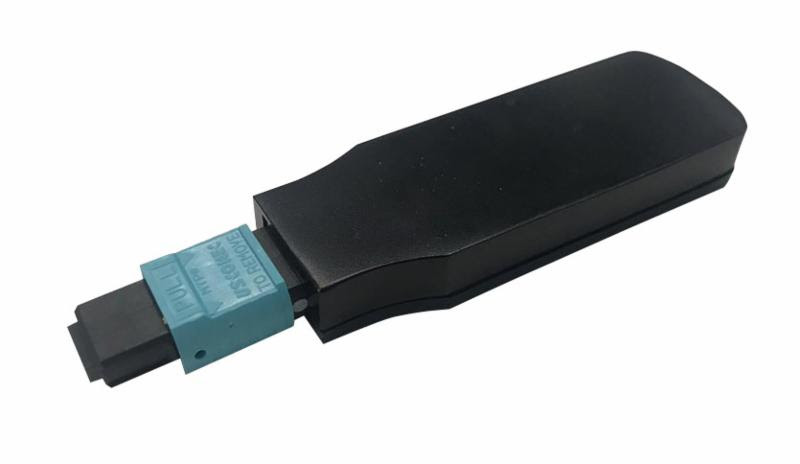

MTP / MPO LOOPBACK ATTENUATOR
INTRODUCTION
MPO/MTP Loopback Attenuator provides a fast and efficient solution to test the performance to transmit and the receiving sensitivity of the optical network device. The unique patented design provides this Loopback attenuator with great advantages in terms of precise control of uniformity attenuation value per channel.
Q1. What is your delivery time?
-- Generally, it will take 3~15 days after the order confirmed. The
exact delivery time will depends on the
items and quantity. The shipping method can be as your request.
Q2. Can you Produce according to the samples or drawing?
-- Yes, we can produce by your samples or technical drawings. OEM
service is available.
Q3. Do you have a MOQ?
-- Our regular products don't have MOQ. The MOQ is depend on the
specific product.
Q4. Can you do OEM project?
05. What is your Samples Policy?
--Common Samples is free, but customers need to pay shipping cost.
![]() |
