Medium Frequency Aluminum shell furnace KGPS-500KW /750kg

Categories Metal Smelting Furnace
Model Number: KGPS-500KW /750kg
MOQ: 1 set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 10 working days after receiving advanced payments
Place of Origin: China
Brand Name: JIN GE CHAO TONG
Certification: CE
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Melting capacity: 750kg
Rated power: 500KW
Furnace body: Aluminum shell
Input voltage: 380V 50-60HZ
Mid-frequency: 1000HZ
Mid-frequency voltage: 750V
DC current: 800A
Melted metal: Steel, iron, stainless steel, scrap, aluminum, copper, lead, zinc, gold, silver
Maximum temperature: 1800 ℃
Smelting time: 50 minutes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

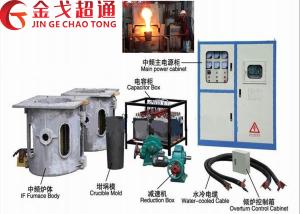

Medium Frequency Aluminum shell furnace KGPS-500KW /750kg

Easy Installation Metal Smelting Furnace With Good Startup Performance

The special electric furnace for smelting iron, aluminum, copper, zinc and other non-ferrous metals produced by our company greatly saves electricity and improves the working environment. The technology is mature and easy to operate. Service list: According to the production location, we will make production line drawings and equipment installation drawings for free.
Provide basic installation drawings of the equipment and other parts must be made by the buyer. Provide technical parameters of the auxiliary equipment. Throughout the operation, if the buyer needs to adjust the layout and use, we can provide free technical services. Throughout the operation, when we make a technical update, if the customer wants to upgrade the equipment, we only charge the cost price.



Main advantage
The melting speed is fast, the solution temperature is uniform, the oxidation combustion is less, and the composition is uniform.
Small size, small footprint, 24 hours of continuous smelting.
The smelting directly melts, and the solution can be completely emptied, and the replacement of the product is convenient.
The operation is simple, the environment is good, the transfer is convenient, and it can be started 100%.
The lining has a long service life and the product has high reliability.
It has electromagnetic stirring effect, which is advantageous for uniform composition and slag.
Easy to use and maintain.



Equipment selection
First of all, it is necessary to clearly understand the purpose of purchasing an intermediate frequency furnace, such as: hot forging or smelting liquid, or surface heat treatment, etc. This is a process problem of the operation, and secondly, it is necessary to consider the working efficiency of the equipment, for example, how much work is required in one hour? At this time, factors such as production tempo should be considered.


Technical parameters


Product NameMedium Frequency Aluminum shell furnace
ModelKGPS-500KW /750kg
Power500KW
Capacity750kg
Transformer capacity600KVA
Input voltage380V 50-60HZ
Mid frequency1000HZ
Mid-frequency voltage750V
Constant voltage500V
Constant current800A
Maximum temperature1800℃
Smelting time50 minutes

Parameter list of all models
ModelRated capacityMatching transformer’s capacityInput voltageMF frequencyMF voltageDC voltageDC currentMaximum temperature
KGPS-50KW50kg60KVA

380V 50-60HZ


1000HZ


750V


500V

80A1800℃
KGPS-100KW100kg120KVA160A1800℃
KGPS-160KW150kg200KVA256A1800℃
KGPS-200KW250kg250KVA400A1800℃
KGPS-250KW350kg315KVA500A1800℃
KGPS-350KW500kg450KVA630A1800℃
KGPS-400KW500kg480KVA640A1800℃
KGPS-500KW750kg600KVA800A1800℃
KGPS-750KW1000kg900KVA1200A1800℃
KGPS-900KW1250kg1080KVA750V 50HZ800HZ1460V990V1440A1800℃
KGPS-1000KW1500kg1200KVA750V 50HZ800HZ1460V990V1600A1800℃
KGPS-1500KW2000kg1800KVA750V 50HZ500HZ1460V990V2400A1800℃
KGPS-2000KW3000kg2500KVA6x750V 50HZ

500HZ

1460V990V3200A1800℃
KGPS-3000KW5000kg3600KVA6x750V 50HZ500HZ1820V990V4800A1800℃
