Categories | Glue Mixing Machine |
---|---|
Brand Name: | HJD |
Model Number: | GM900 |
Certification: | CE |
Place of Origin: | Shenzhen,Guangzhou,China |
MOQ: | 1 kit |
Price: | Negotiatable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 kits/month |
Delivery Time: | 10~15 working days |
Packaging Details: | Wooden frame packing |
Material: | adhesive dispensing machine |
Function: | Glue mixing ,potting,coating |
Ratio: | 1:1 ; 10:1 |
Air pressure: | 0.6-0.8 mpa |
Mixing mode: | Static /Dynamic |
Capacity: | 10L,20L,30L,60L,100L |
Power(W): | 3500W |
OEM/ODM: | Support |

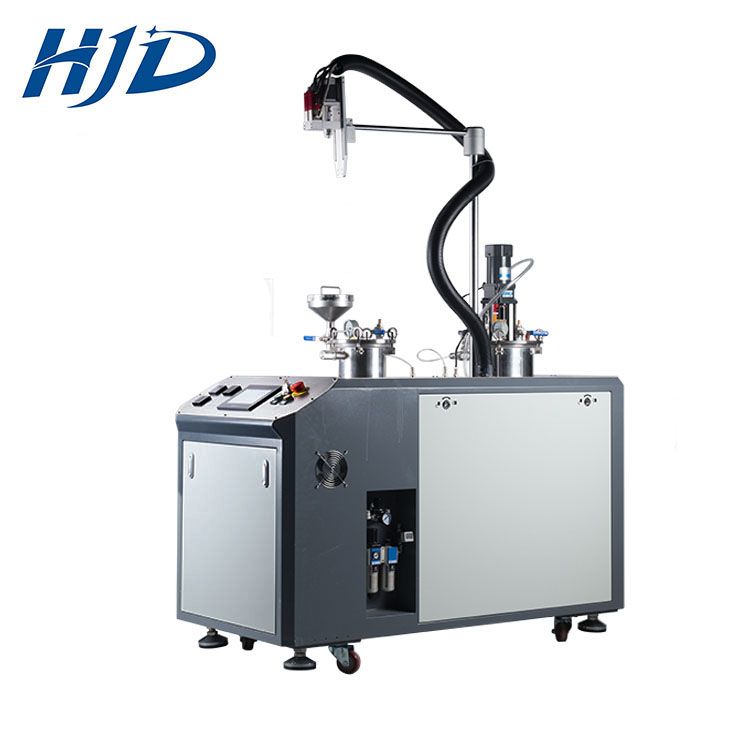

High efficiency multifunction semi automatic epoxy AB glue mixing machine factory price
Technical Parameters
Model No. | GM900 |
working radius | 1-3 m(adjustable) |
Mixing Ratio | 100:100-100:10(1:1-10:1) |
Metering Precision | ±1% |
Outflow Speed | 0.3g/sec-15g/sec |
Mixing Precision | ±1% |
mixing Mode | Dynamic mixing /Static mixing |
Glue Viscosity | Lower than 20000CPS(mPa·s) |
Control Mode | PLC + Touch Screen |
Control System | Independent R&D |
Measuring Pump(optional) | Piston pump/Gear pump/Screw pump |
Drive Mode | Stepping motor & sync belt (Optional servo motor & ball screw) |
Programming | Teach Pendant for programming |
Machine Dimension | 1350(L)*700(W)*1500(H)mm |
Working Voltage | AC 220V 50/60HZ |
Power Requirement | 3.55KW |
Air Pressure Requirement | 4.5-8KG |
Weight | Approx 340 kg |
Work Environment | Humidity: 20%~90%RH; Temperature: 0~+40°c |
Applications:
LED products ,Electronic components,Crafts
Such as: LED display, Wall washer light, LED bar, LED strip, Ads module, Mutual inductor, Capacitor, Power supply, Transformer, Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
After-sell service:
Super glue dispenser peristaltic pump main functions:
![]() |
