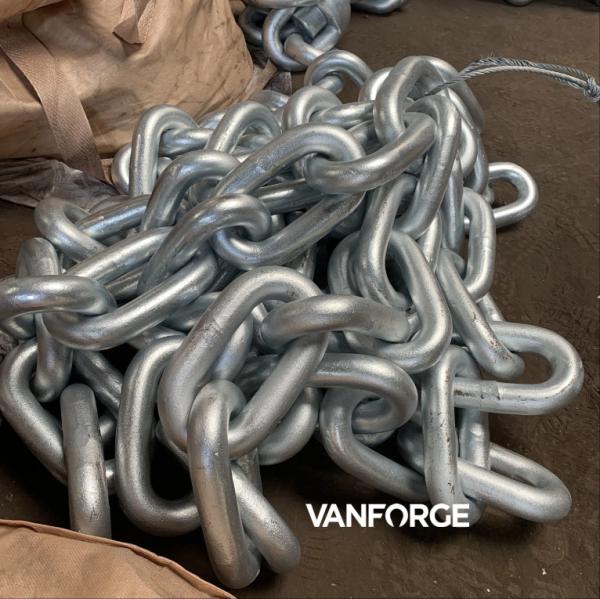

Rolled Steel Welded Stud Link Anchor Chain Customized Length For Drag Mooring Anchoring

ABS DNV BV R3 R3S R4 R5 high strength marine offshore alloy steel studless mooring chain

Description:

1. Variety: Grade1, Grade 2,Grade 3,ORQ, R3, R3S, R4 stud link anchor chain; studless anchor chain; buoy chain, D-type anchor shackle; Hatch-cover chain, lifting chain, kiln chain and others; DIN Standard chain; Special chain as per your requirements and their accessories.
2. Material grade: Anchor chain, Grade 2/U2, Grade 3/U3

Mooring chain, ORQ, R3, R3S

3. Material:20Mn (CM490),30Mn(CM690)
4. Length: 25m or 27.5m or as per your request.
5. Process: Flash but weld
6. Surface: Self Color, Black Painted, Hot Dip Galvanized
7. Certificates: ABS, BV, CCS, DNV, KR, LR, GL, NK and RINA etc.
8. Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm

9. Accessories: kenter shackle, joining shackle. anchor shackle, pear type joining shackle

buoy shackle type A, Swivel shackle

pear type link, trangle plate.

9. Difference between Stud link chain and studless chain:

Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.

11.Packing: Wire Rope Bundled, Ton Bag, Wooden Box, as required

Using range: Marine chain, Fishing &boat chain, Mine chain, Cement lifting round chain.

Name: Mooring chain

Material: Rolled steel

Color: Natural color, painted, galvanized

Standard: ISO-1704-2007,API-2F(U.S.A),GB/T-549 , Appvoved by 3 international class,such as ABS,NK,CCS

Grade: R3, R3S, R4, R4S

Brand: VANFORGE

Chain link type: Studless link

Test: Fatigue test, stress analysis, magnetic power test, ultrasonic test, fluorescent penetrant inspection, load test.

Technical data:

Application:

Production procecure:

Transportation and export:

Suzhou Vanforge Metals Co., Ltd. was set up in April 1999 with a registered capital of 230 million Yuan in Zhangjiagang Bonded Area in Jiangsu Province of China. It has developed to be an important R&D and manufacture enterprise of high performance stainless steels and nickel alloys.

Vanforge is a high-tech enterprise with 70 national patents, it has its own Special Alloy Research Center, academician workstation and post doctorate innovation practice base. Vanforge has been certificated the national laboratory accreditation of ISO/IEC 17025, and ISO9001, ISO14001, OHSAS18001, API Q1, IATF16949, GB/T23331, TUV, CCS, DNV, LR, ABS.

Vanforge has the international advanced special smelting capacity, including the German ALD 6t vacuum induction furnace, 6t consumable electrode vacuum furnace, 18t drawing-ingot protective atmosphere electroslag furnace and 1t vacuum induction furnace, 3t electroslag furnace, 18t drawing-hollow ingot electroslag furnace, and 2# Purification Furnace/1# Purification Furnace/LF/AOD/VOD refining production line, 25MN/8MN fast forging machine, 450/320 rolling mill, etc.

The current annual production capacity of Vanforge is 120,000 tons, and the main products are high-grade special alloy materials, including high temperature alloy, corrosion resistant alloy, precision alloy, ultra high strength steel, special stainless steel, high-grade tool and mould steel, steam turbine blades steel, gas turbine steel, ultra-supercritical materials, etc., which are widely used in aviation, aerospace, ship, petrochemical, nuclear power, electronics, steam turbine, high-speed rail, machinery manufacturing, and other fields; besides, we can organize the research and development and production of new materials according to customer demand for new materials. Vanforge has now become a qualified supplier of domestic high-end equipment manufacturing enterprises, such as CASIC, CGN, CRRC, CFHI, Wujin Stainless, Zhejiang Jiuli Hi-Tech Metals Co., Ltd., Xinxing Ductile Iron Pipe Co., Ltd., etc.

We always adhere to the concept of quality first, integrity based, scientific and technological innovation, making progress, and wholeheartedly serving customer and devote ourselves to becoming the well-known supplier of key basic materials of world’s high-end equipment manufacturing industry.

We supply following products in the forms of wires, bars, plates

(Super) austenitic stainless steels

(Super) duplex stainless steels

(Supper) Ferritic stainless steels

Precipitation hardening stainless steels

Incoloy alloys

Inconel alloys

Monel alloys

Hastelloy alloys

As well as following steel products

Gear steels

Bearing steels

Spring steels

Drilling tool steels

Free-cutting steels

Anchor steels, mooring chain steels

Mining chain steels

Die steels, Mold steels, tool steels

Structural steels

Antiwear steels

Offshore structure steels

Petroleum storage tank steels
