Brand Name: | TPS |
Model Number: | CS12/16/25/28 |
Certification: | ISO9001 |
Place of Origin: | China |
MOQ: | 1 set |
Price: | USD150000 |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 SETS-25SETS/PER YEAR |
Delivery Time: | 4 MONTH |
Packaging Details: | EXPORT PACKING |

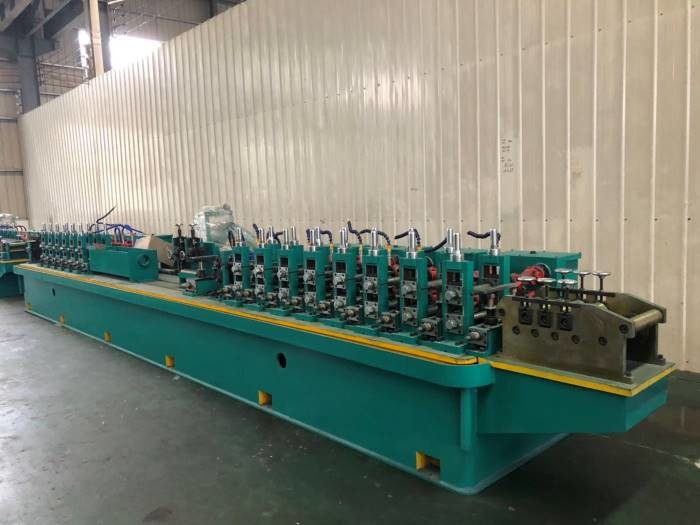

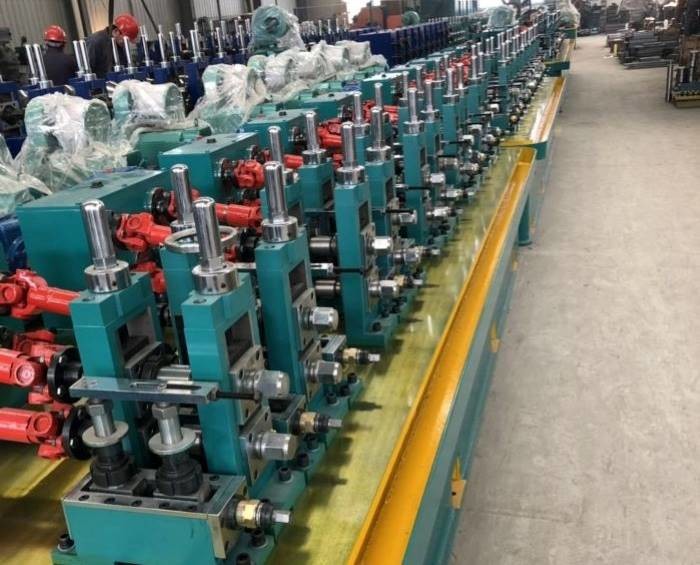

CS12/16/25/28 Straight Seam High Frequency Welded Pipe Mill Line
Basic Components
Uncoiler Shearing and Butt-Welding(Prepared by Customer) Accumulator Forming Welding.Sizing Unit

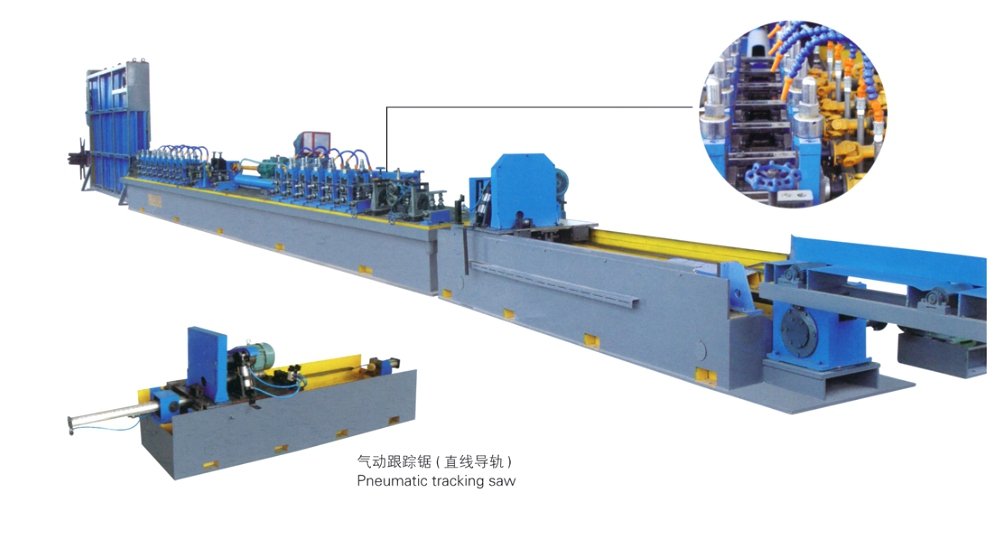

Pneumatic Tracking or Computer Controlled Length Cutting Saw Run-out table
Main Technical Parameter
CS12 | CS16 | CS25 | CS28 | |
Diameter of Welded Tubes | Φ7-16mm | Φ8-25mm | Φ8-32mm | Φ10-50mm |
Wall Thickness of Welded Tube | 0.2-0.5mm | 0.3-1.0mm | 0.4-1.5mm | 0.5-1.8mm |
Speed of Tube Welding | 50-100M/min | 50-100M/min | 50-100M/min | 50-100M/min |
Power of Major Motor | 15KW | 22KW | 37KW | 55KW |
High Frequency Power | 60KW | 60KW | 60KW | 60KW |
![]() |
