80KVA Three Phase Transformer 380V / 220V , 3 Phase Shell Type Transformer

Categories Three Phase Transformer
Brand Name: Ewen Power
Model Number: SG-80KVA
Certification: CE, ISO:9001
Place of Origin: Shanghai, China
MOQ: 1 pc
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 150 pcs per Month
Delivery Time: According to Quantity
Packaging Details: Wooden Case
Product Name: Three Phase Dry Type Transformer
Product Model: SG-80KVA
Voltage Phase: Three Phase
Coil Structure: EI
Rated Frequency: 50Hz~60Hz
Procut Type: Dry Type
Rated Capacity: 80KVA
Temperature: -10~40℃
Input Voltage: 380V3P or any other voltage
Output Voltage: 220V3P or any other voltage
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

80KVA Three Phase Transformer 380V / 220V , 3 Phase Shell Type Transformer

80KVA Three Phase Transformer 380V / 220V , 3 Phase Shell Type Transformer


1. Product Description


Three phase dry type transformer is an electrical equipment that switches voltage between windings by use of electromagnetic induction.This product adopts excellent material and designs properly, featuring in stable and sound performance, long lifetime, high cost-effectiveness. It could work continuously for a long time, thus is widely used in industrial areas.


This one listed here is a 80KVA three phase dry type transformer. It's a type developed relatively early, with an old-style enclosure and design. However, its performance is the same as new-style ones with new design of enclosure. The rated capacity of this product is 80KVA. The input and output voltage can be customized according to your requirements. Common voltage ratio could be 380V/220V, 380V/200V, 440V/380V, 415V/380V, 380V/380V, 380V/208V, 690V/380V, 660V/380V, and 1140V/380V. We normally have spot goods with these common voltage ratio.


2. Product Specifications


Product NameThree Phase Dry Type Tranformer
Product ModelSG-80KVA
Rated Capacity80KVA
Rated Frequency50HZ~60HZ
Input Voltage1140V, 690V, 660V, 440V, 415V, 380V etc (could be customized)
Output Voltage380V, 220V, 208V, 200V etc (could be customized)
Ambient Temperature-10℃~40℃
Ambient Altitude<2500m
Cooling WayAir Cooling
Output Precision±2%
Insulation ClassF
Insulation Resistance

≥2

Waveform DistortionNil
Working Efficiency>85%
Protection ClassIP20
Response Time<1.5s
Overload CapabilityWorking for one minute when the current is two times of rated one
Other PartsAmpere meter, voltmeter, indication lights, omni-directional wheels

3. Product Configuration

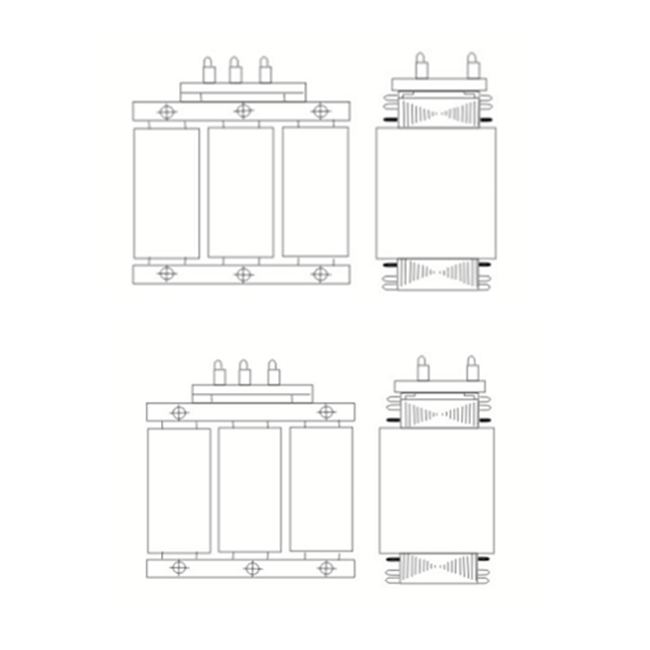

From this picture, you could see the configuration of this product. It has three windings.


4. Instructions of Installation and Using


① Open the case and take out the transformer. Read the instruction carefully.


② Fix the transformer in a well-ventilated place.


③ Exam the circuitry and the voltage of power grid before using. Deviation of ±5% is permitted. If the deviation is over this extent, please add a voltage regulator in order to insure normal performance of the transformer.


④ Connecting wires according to the label on the product.


5. Aftersale Services


First, one-year guarantee period is ensured for this three phase dry type transformer.


Second, aftersale service is comprehensive. We would help you with any issue occured to this product no matter whether the problem is caused by the product itself or other cases.


Third, we have a professional team responsible for services and technic problems. In case any problems, we would help you with it as soon as possible.
