20KVA Avr Auto Voltage Regulator Single Phase Stabilizer 220V With LCD Display
1. Quick Details
| Product | Automatic voltage stabilizer | Product brand | Ewen (OEM/ ODM available) |
| Type | TND-20KVA | Rated power | 20KVA |
Input voltage range | 160-250V or customized | Output voltage | 220V or customized |
| Input current | 90.91A | Output current | 90.91A |
| Ambient humidity | 20%-90% | Appropriate altitude | ＜1000 m |
Appropriate temperature | -15℃~45℃ | Ventilation conditions | Sound ventilation required |
| Function | Voltage stabilization | Temperature rise | ＜80℃ (normally ＜60℃) |
| Insulation class | Class F | Display | LCD display |
| Gross Weight | 70kg for reference | Size | 380mm*430mm *780mm |
2. Major components
The major parts of this 20KVA single phase automatic voltage stabilizer include copper coil, aluminum coil, servo motor, carbon brush, enclosure, omni-directional wheels, air switch etc. Please have a general idea of these parts through the chart below:
| Parts | Description (Features and Competitiveness) |
| Copper coil | This is a very important part, which is crucial in voltage regulation. |
| Because of the copper material, the electricity inductiveness is very strong. | |
| Also, the voltage stabilization precision is relatively high. | |
| Aluminum coil | Compensating voltage automatically. |
| Co-working with the copper coil to provide a stable voltage power supply. | |
| Servo motor | Driving the carbon brush to move along the copper coil. |
| Quick response rate. | |
| Carbon brush | Moveing along the copper coil and helping regulate the voltage. |
| Durable and high-quality. | |
| Enclosure | As the largest part of the stabilizer, it covers all the components of the this product and protect all the components from being damaged. |
| Waterproof enclosure could be customized if needed. | |
| Omni-directional wheels | Bringing convenience for your when you want to move the product. |
| Strong load-bearing capability | |
| Air switch | Protecting the product by tripping automatically when the current is over the rated one. |
3. TND Series
Product Model | Rated Capacity (KVA) | Size (L*W*H) (CM) | Weight (KG) | Rated Frequency (Hz) | Display | Note |
TND(SVC) -10KVA | 10 | 28*34 *55 | 31 | 50-60Hz | Analog Meters /LCD | Dual output voltage /single output |
TND(SVC) -15KVA | 15 | 34*38.5 *65.5 | 65 | 50-60Hz | Analog Meters /LCD | Single output |
TND(SVC) -20KVA | 20 | 38*43 *48 | 71 | 50-60Hz | Analog Meters /LCD | Single output |
TND(SVC) -30KVA | 30 | 38*43 *48 | 96 | 50-60Hz | Analog Meters /LCD | Single output |
TND(SVC) -40KVA | 40 | 43*49 *90 | 120 | 50-60Hz | Analog Meters /LCD | Single output |
TND(SVC) -50KVA | 50 | 43*49 *126 | 135 | 50-60Hz | Analog Meters /LCD | Single output |

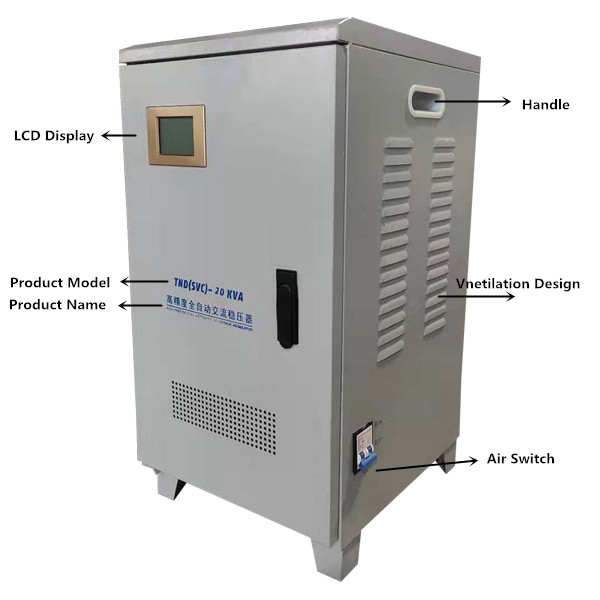

4. Product Diagram
|
