Large Capacity Auger Conveyor Machine Horizontal Flexible Screw

Categories Auger Screw Conveyor
Brand Name: PK
Model Number: LS
Certification: CE Certificate, ISO9001:2015, BV, SGS,Business-license, ISO14001:2015
Place of Origin: Xinxiang City, Henan Province,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000SETS/YEAR
Delivery Time: ABOUT 30 DAYS
Packaging Details: Standard export package
Screw Pitch: 150/200/250/300/400/500mm
Reducer: YZQ250/350/400/500/650/750/850
Dimension(L*W*H): Customized
Max.Conveying Distance: 55m
Screw Diameter: 150/200/250/300/400/500/600mm
Usage: Adjsutable(1-60 M/min)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

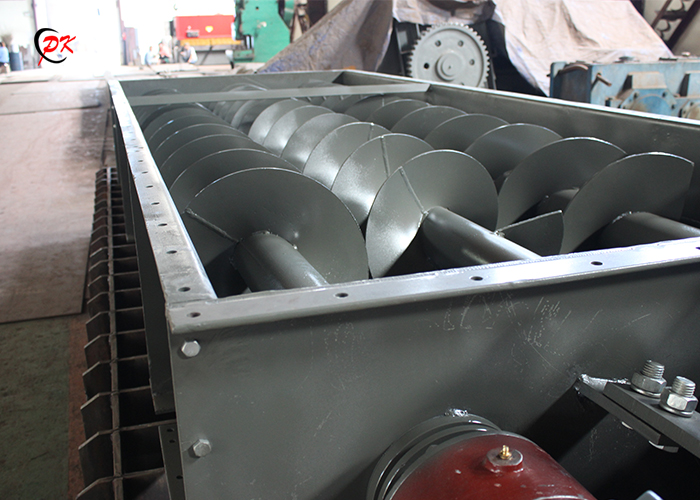

Large Capacity Auger Conveyor Machine Horizontal Flexible Screw

Large Capacity Auger Conveyor Machine Horizontal Flexible Screw


Introduction

Screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy, convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.


Features:

1. The large bearing capacity, safe and reliable.

2. Strong adaptability, easy installation and maintenance, long service life.

3. The machine is small in size, high speed, ensure rapid delivery uniformity.

4. The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.

5. Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.

Technical Parameter:

LS screw conveyor specification & technical parameters
TypeLS160LS200LS250LS315LS400LS500LS630LS800LS1000LS1250
Diameter/mm16020025031540050063080010001250
Screw pitch/mm160200250315355400450500560630
technical parametersn1121009080716350403225
Q814243464100145208300388
n90807163565040322520
Q71220265280116165230320
n71635650454032252016
Q6101621416494130180260
n50504540363225201613
Q471316345280110150200
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33


Selection Conditions


♦ Material to be processed:

_

♦ Installation angle:

___° (if the installation is inclined)

♦ Bulk density:

t/m3

♦ lifting height:

___m (if there is slope angle)

♦ Water content:

%

♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

mm

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

mm

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz

♦ Conveying length (distance between inlet and outlet): m

♦ Quantity:

sets

♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
