H05VV-U Single Core and Multi-core PVC Insulated and PVC Sheath NYM Cable

H05VV-U Single Core and Multi-core PVC Insulated and PVC Sheath NYM Cable

Production Description

Brand Name	JHY CABLE
Original Country	China
Conductor	OFC copper

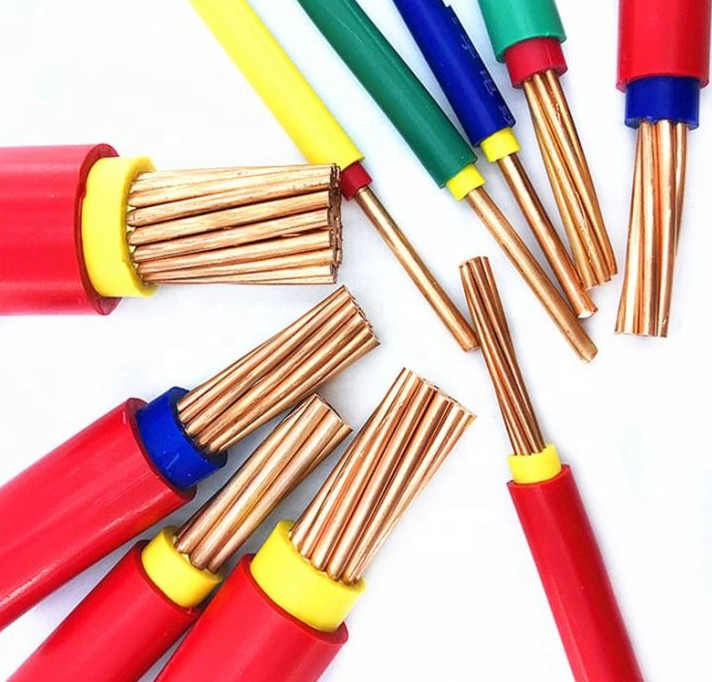

Pruduct Photo
Insulation	PVC
Rated Voltage	300/500v
Working Temperature	-15 to 70 ℃
Packing	100m/roll or as request
OEM order	YES
Standard	IEC60227,GB/T 5023, VDE 0281, BS 6004.

Production Application

These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.

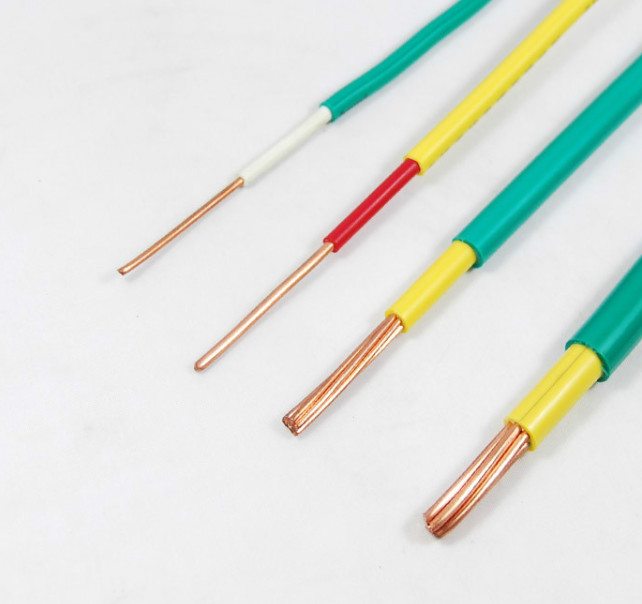

Product photo

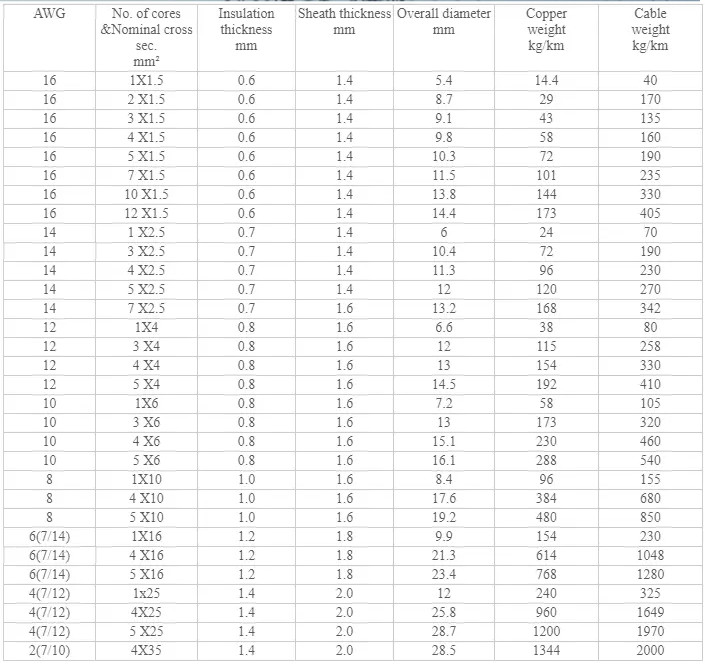

Technical Date:

Company Introduction

SHENZHEN JINHUANYU WIRE AND CABLE CO., LTD, was established in 1993, is a professional manufacturer with research, development, production, sales and service of Electric Wires, Power Cables, Communication Cables, and other Wire and Cables. The company is located in Songgang Street, Baoan District, Shenzhen City, Guangdong Province, China.

Jinhuanyu Cables
1) Bare Conductor, Bare Copper Wire, Bare Aluminum Wire.
2) 450/750V and below PVC Insulateted Electrical Wires and Power Cables.
3) 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.

4) 0.6/1kV PVC Insulated Power Cables.
5) 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 18/30kV, 26/35kV XLPE(Cross linked polyethylene) Insulated Power Cables.
7) 450/750V and below Control Cables.
8) 1kV Aerial Bundled Cables.
9) 10kV Aerial Bundled Cables.
10) Aluminum Cables, AAC (All Aluminum Cables), AAAC (All Alloy Aluminum Cables), ACSR (Aluminum Conductor Steel Reinforced Cables).
11) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.

12) Other Special Electrical Wires and Power Cables: Irradiation Cross-linked Cables, Frequency Converter Cables, Corrugated Aluminum Armored Cables, Rubber Cables and other Wires and cables.

13) Communication Cables:

a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG 6, RG 11, RG 59 Cables.
