• Product Features

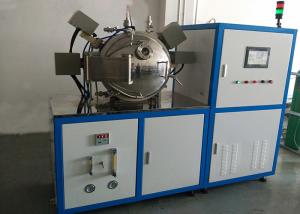

The sintering temperature of HY-QS1516E reaches up to 1600°C, while the heating zone is surrounded by a double walled water cooling system, also the furnace is equiped with rapid cooling system ie. a high precision cooling-water machine with the flow rate of 2m³/h and the rated cooling capacity of 3.6KW.

HY-QS1516E uses electric and microwave heating source the output power is 5kW and 1.5kW respectively.

Users can choose electric heating for microwave unabsorbing sample while microwave heating vice versa. Various material may not absorb microwave at low temperature but change to absorb microwave at a certain high temperature, for sample material like this, mutiple heating source is more competitive.

HY-QS1516E uses magnetic fluid seals to ensure the rotary heating zone be sealed properly.

• Applications

High temperature HY-QS1516E sintering furnace can be applied to pyrolysis, synthesis, calcination as well as other thermal treatment process under various atmosphere conditions. Besides, the pre-vaccum pumping function can substantially save time for gas exchanging.

• Technical Parameters

Hunan Huae Microwave Technology Co., Ltd. has been developing and manufacturing industrial as well as laboratorial microwave furnaces for different applications since 2012. As one of the top suppliers of microwave furnaces, Huae Microwave offers a wide range of furnaces worldwide and has been highly appreciated by customers home and abroad.

Huae Microwave provides a whole set of mechanical and electrical solutions to our customers, which makes it possible for precisely controlling as well as remote monitoring of the processes. Our senior engineers have been sparing no efforts to improve the temperature uniformity, energy efficiency and products durability of our equipments to enhance our competition advantage.

Our multi-disciplinary R&D team has successfully developed a full series of microwave industrial/laboratorial equipment and has gained a series of patents in microwave industry. We have a full range of furnaces for technical research in our laboratory, which can meet different requirements for sintering, roasting, calcination, crystallization, catalysis, pyrolysis as well as graphite oxide reduction etc. under various atmosphere conditions.
