| Categories | Expanded Metal Mesh Machine |
|---|---|
| Brand Name: | DIAOZHUO |
| Certification: | CE ISO9001 |
| Place of Origin: | HEBEI, CHINA |
| MOQ: | 1 SET |
| Price: | variable |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 6-8 sets per month |
| Delivery Time: | 20-30 work days |
| Packaging Details: | woodencase and plastic bags |
| Thickness: | 1.5mm |
| Width: | 1.25m |
| Speed: | 230PCS/Min |
| Length of Mesh: | 40mm |
| Motor: | 5.5kw |
| Weight: | 3ton |

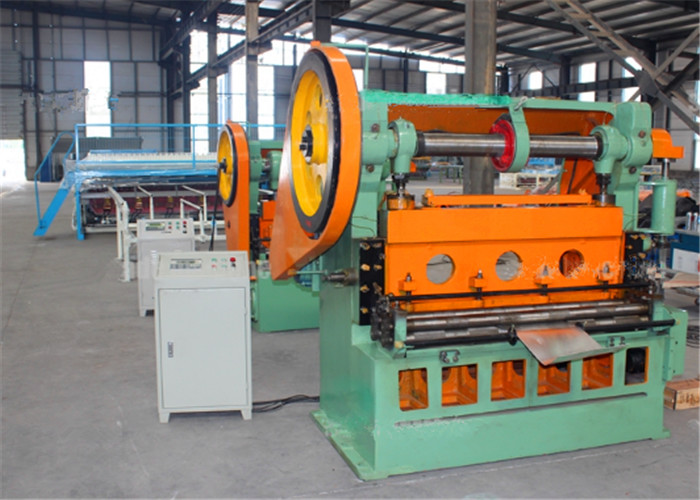

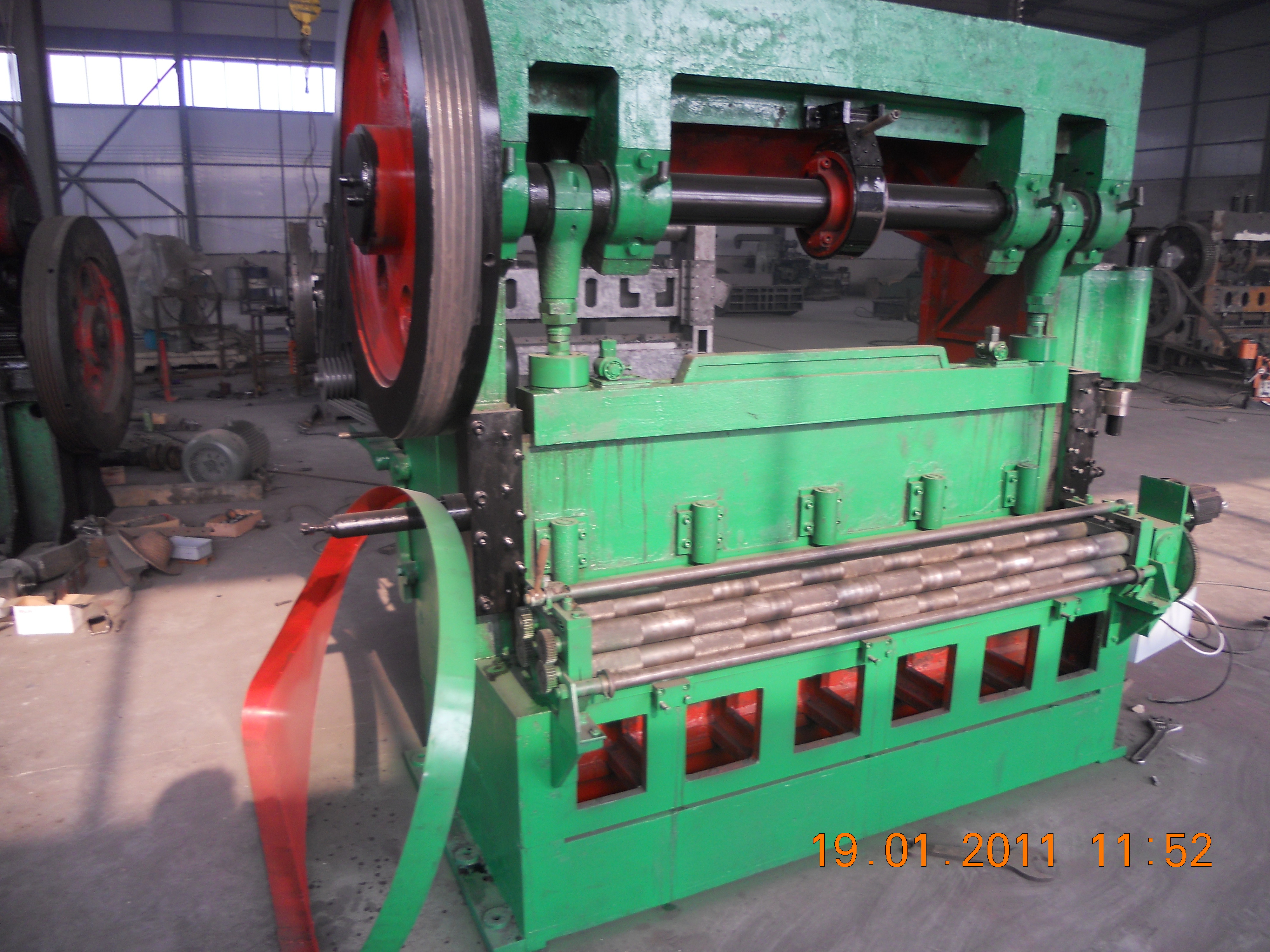

High Speed Coil Feeding 25tons expanded metal mesh making machine
| Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 |
| Depth(mm) | 1.0 | 1.0 | 1.5 | 2.5 | 4 | 6 |
| Width(mm) | 600 | 1000 | 1250 | 1500 | 2000 | 2000 |
| Stroke per min(times/min) | 320 | 260 | 230 | 120 | 80 | 75 |
| Distance(mm) | 0-1.5 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
| Lenght of Mesh(mm) | max.12.5 | max.25 | max.30 | max.80 | max.200 | max.200 |
| Motor(KW) | 2.2 | 3 | 4 | 11 | 11 | 15 |
| Weight(T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
| Measurement(mm) | 1090*710 *1450 | 1800*1320 *1550 | 1940*1600 *2010 | 2870*1990 *2140 | 2400x3500 x2300 | 3600*2500 *3000 |
1) PLC and Touch Screen adopts famous brand.
2) Matirial feeding with CNC step motor control.
3) The fuselage is nodular cast iron.
4) Full automatic lubrication.
5) Includes one set of alloy cutter for free.
6) It has reasonable structure,elegant appearance,it is environmental production and energy saving.
♣ Raw material
The raw material can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
♣ Finished product usage
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
♣ Installation and commissioning
Machine to be installed and commissioned by SM technicians.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary US$80 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
♣ Guarantee
Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.
♣ Company profile
♦ We are big factory (67,000 sqms) of professionally making wire mesh machines (plano type perforated metal machine,expanded metal mesh machine,wire mesh welding machine,hexagonal wire mesh machine,gabion machine,slitting line,sheet metal punching press,etc.)in Anping county of China.We have passed ISO 9001:2008 &SGS certificate.
|
