032F6225 032F803432 EVRA 25 s Type Servo Piston Operated Flange Solenoid Valve For Ammonia

032F6225 032F803432 EVRA 25 s Type Servo-Piston Operated Flange Solenoid Valve For Ammonia

Product overview of 032F6225 032F803432 EVRA 25 s Type Servo-Piston Operated Flange Solenoid Valve For Ammonia:

The EVRA 25 s 032F6225 ammonia solenoid valve is used for automated opening and closing in ammonia network in both liquid and

gaseous phases. The EVRA valve is sold dismembered with body + flange set + coil supplied. In addition to this convenience, repairs are sold

separately. Thus, the valve can be repaired in the pipeline without removal, giving more agility and reliability to the process.

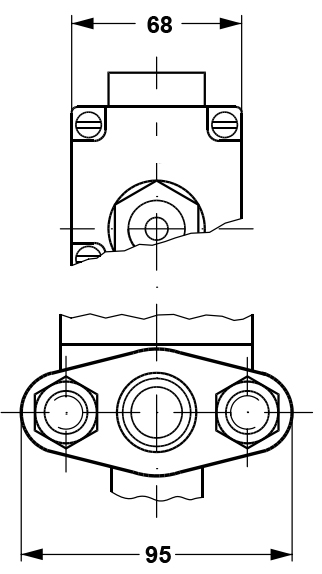

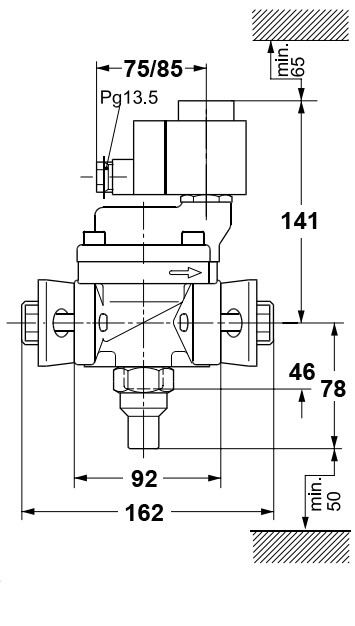

Main dimension of EVRA 25 s Type Flange Ammonia Solenoid Valve:

Technical parameters of EVRA 25 s Type Flange Solenoid Valve For Ammonia:

Details of 032F6225 032F803432 EVRA 25 s Type Refrigeration Solenoid Valve:

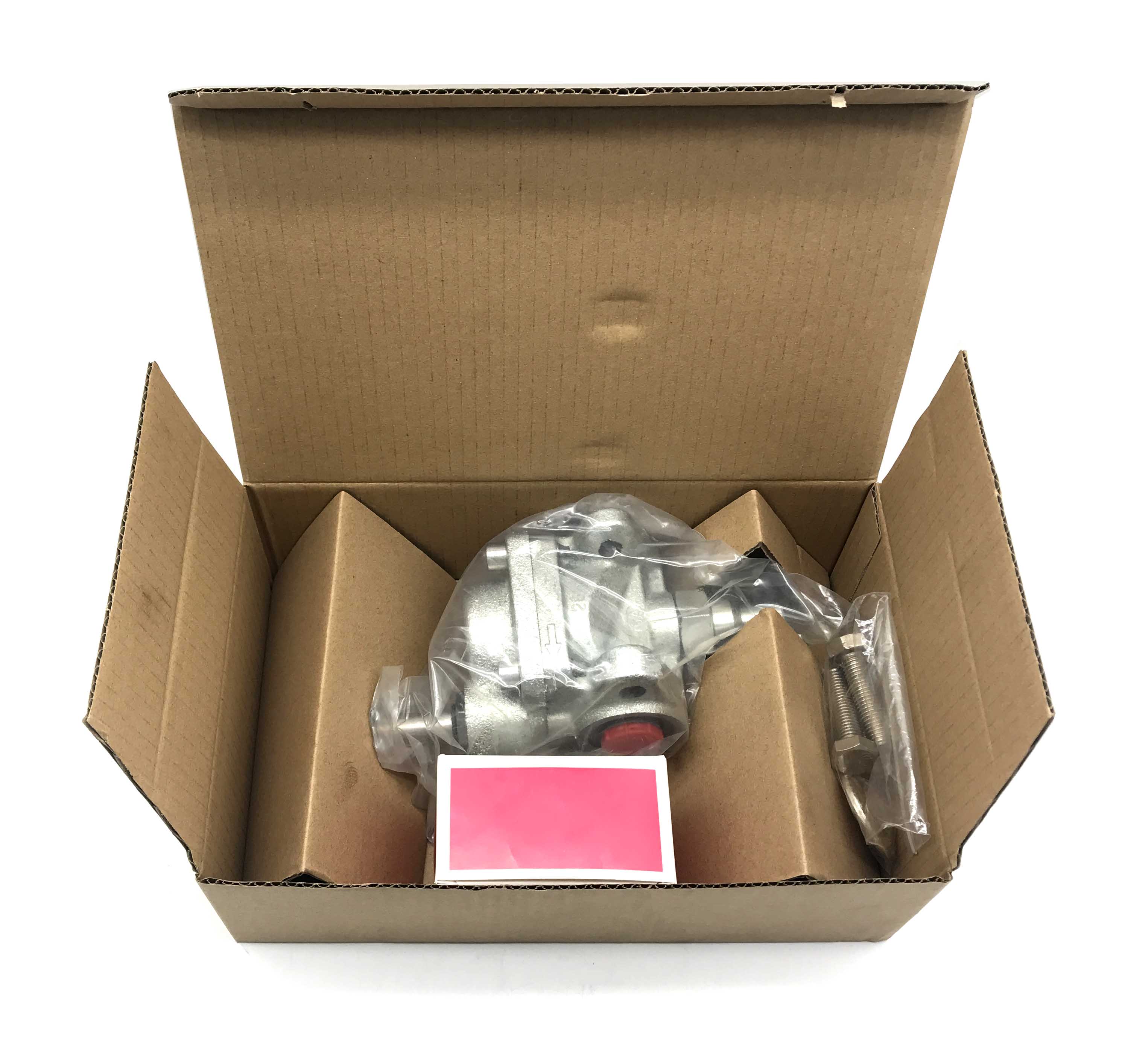

Packing display of 032F6225 032F803432 EVRA 25 S Type Flange Valve:

Video display of 032F6225 032F803432 EVRA 25 s Type Ammonia Valve:

Instructions to the Welder
1. Always use TIG / Argon welding as the root run, to avoid slag and debris entering the valve house.
2. Complete the welding process according to local legal requirements.
3. Inspect the inside around the welding and remove all debris.

Instructions to the Installer
1. Clean the pipes and valve houses with dry air (no water, no sandblasting).
2. Lubricate valve housing sealing surfaces (e.g. with refrigerant oil).
3. Follow the valve installation instructions.
4. Pressure test the system with dry air or inert gas (no water).

Instructions to the Supervisor
1. Build up the system in sections. For example, have valve trains or valve stations pre-manufactured before being shipped on site, or make it in a separate clean workshop on site, where welding and cleaning procedures can be easily controlled.
2. Evacuate the sections to verify that there is no water left in the system.
3. Seal and pressurize finished sections slightly with inert gas.
4. Evacuate down to 5-10 mbar before charging refrigerant.
5. Run free and clean filters frequently for 24-48 hours.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
