SM Loopback Adapter Mpo Cable Connector , Patch Cord Connector For Testing System

Categories MPO Patch Cable
Brand Name: OEM
Model Number: MPO-loopback-12F-SM
Certification: ISO9001
Place of Origin: CHINA
MOQ: Support sample order
Price: Negotiation
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000 connectors/day
Delivery Time: 3-7 work days
Packaging Details: Individual packaging with Ziplock Bag
Fiber Type: G657A1
Cable Material: LSZH
Fiber Count: 12 Fibers
Polish Type: APC
Hosing Color: Yellow
Insertion Loss: Low Loss
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SM Loopback Adapter Mpo Cable Connector , Patch Cord Connector For Testing System

12F SM Low Loss MPO fiber optic loopback adapter MPO patch cord connector for testing system
MPO/MTP® Loopback is widely utilized within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP® interface, such as 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices.
Features
12 or 24 Fiber Ferrule MPO/MTP®
Female and Male MPO/MTP option of Connectors
MPO/MTP® Interface - MPO/MTP components feature superior optical and mechanical properties
Polarity Variants selection
◆ Factory Terminated and Tested
◆ 40G QSFP+ and 100G CXP/CFP transceivers
Application

◆ Data Centre Infrastructure and testing
◆ Storage Area Network- Fiber Channel
◆ Parallel Optics
◆ Emerging 40 and 100Gbps Protocols
◆ Infiniband
◆ Plug and Play
◆ Cost-effective
Specification

1. Operating & Storage Temperature


ParametersMinMaxUnit
1Operating Temperature-4070°C
2Storage Temperature-4070°C

2. Optical Performance


ItemParameters
MPO/MTP® ConnectorSM(1310nm/1550nm)MM(850nm)
StandardLow LossStandardLow Loss
Insertion LossTypical0.5dB0.2dB0.5dB0.2dB
Maximum0.7dB0.35dB0.7dB0.35dB
Return Loss>=60dB for APC--
>=40dB for PC>=20dB for PC
Male/FemaleMale: with Pin; Female: without Pin

3. Geometry Parameters


MT
MeasurementPass/Fail Limits
ParametersMinMax
Radius of CurvatureLong Axel2000mm

Short Axel50mm

AngleLong Axel-0.2°0.2°
Short AxelAPC7.8°8.2°
PC-0.2°0.2°
Fiber Height1000nm3000nm
Different Fiber HeightN/A500nm
Adjacent Fiber HeightN/A300nm
Ferrule Length7.9mmN/A

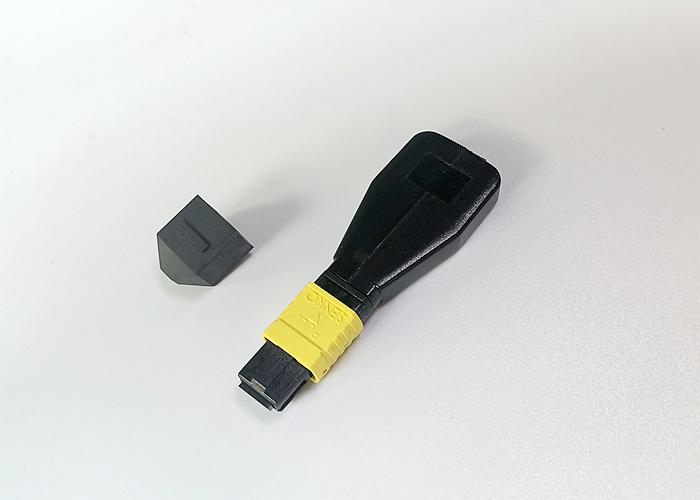

4. Connector Detail



Product Advantages


We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat

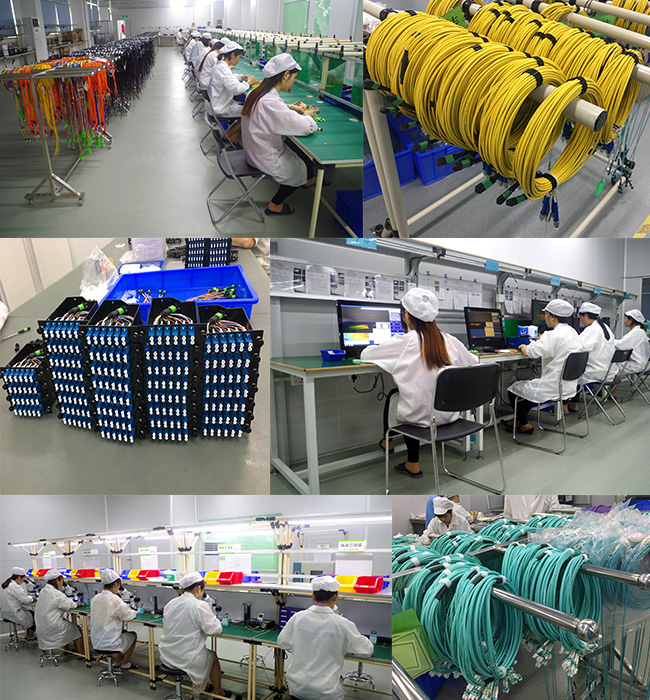

ORC Production Show
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
