| Categories | Thermal Imaging Module |
|---|---|
| Brand Name: | CONO |
| Model Number: | AXE3 |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 PCS PER YEAR |
| Delivery Time: | 7-30 Days |
| Packaging Details: | Safety export packing |
| Original Place: | China |
| Model: | AXE3 |
| Brand: | CONO |
| Name: | Thermal Imaging Sensor Module |
| Application: | Security & Surveillance Detection |
| Pelco protocol: | support |
| Company Info. |
| Hubei Cono Technology Co,Ltd |
| View Contact Details |
| Product List |

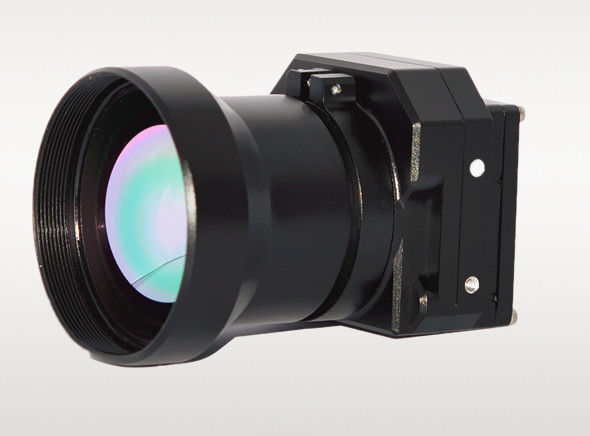

OEM Night Vision Infrared Thermal Imaging Camera Module

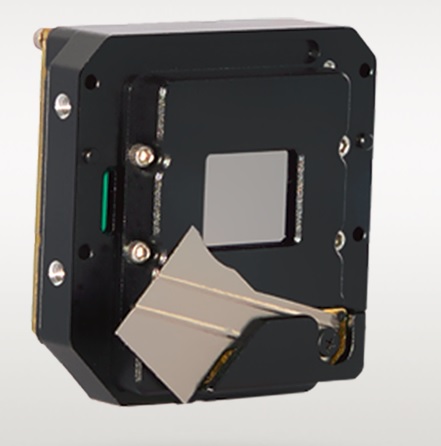

The AXE series is a full function, high performance, uncooled IR camera core supplied ready to integrate for a variety of demanding applications. It incorporates an advanced Gen2 384 x 288 microbolometer FPA and delivers clear, high-resolution thermal images in a VGA format.
Applications:
Intelligent grid, Oil-field and refinery, Inspection and Quarantine, Medical diagnostic, Industrial inspection, Forest fire pre-warning, Smart city, Rail transit, Fire-protection monitoring and etc.
| AXE 3 Specification | ||||
| 17AU | 17Mini | 12AU | 12Mini | |
| Detector | ||||
| Resolution | 384×288 | 320X240 | ||
| Pitch | 17μm | 12um | ||
| Spectral range | 8-14μm | 8-14μm | ||
| NETD | less then 50mk | less then 50mk | ||
| Image Processing | ||||
| Frame Rate | 50/60Hz optional | 50/60Hz optional | ||
| NUC | shuttle calibration | shutterless | shuttle calibration | shutterless |
| Digital Zoom | ×2,×4, PIP | ×2,×4, PIP | ||
| Palette | 10 optional(can be customized) | 10 optional(can be customized) | ||
| Image Flip | 4 optional | 4 optional | ||
| Startup time | less than 8 seconds | less than 10 seconds | less than 8 seconds | less than 10 seconds |
| Startup image | Can be customized | Can be customized | ||
| Menu and information | GUI(Can be customized) | GUI(Can be customized) | ||
| Image Enhancement | DDE | DDE | ||
| Contrast and Brightness | DDE | DDE | ||
| Online update | Both code and GUI resources | Both code and GUI resources | ||
| Image Presentation | ||||
| Analog Video | Pal/NTSC optional | Pal/NTSC optional | ||
| Digital Video | Standard 0.39" MicroOled and BT656 | Standard 0.39" MicroOled /BT656 optional | Standard 0.39" MicroOled and BT656 | Standard 0.39" MicroOled /BT656 optional |
| Module control | ||||
| Communication | RS232/usb/5 keys optional | RS232 / 5 keys optional | RS232/usb/5 keys optional | RS232 / 5 keys optional |
| Power supply | ||||
| Required Voltage | 3.6-12VDC | 3.6-12VDC | ||
| Power consumption | less than 1.45W including OLED | less than 1.45W including OLED | ||
| Environmental Compatibility | ||||
| Operating Temperature | -40℃-60℃ | -40℃-60℃ | ||
| Storage Temperature | -45℃-70℃ | -45℃-70℃ | ||
| Physical Characteristics | ||||
| Size | 35×35×32mm | 26×26×26mm | 35×35×32mm | 26×26×26mm |
| Weight | 45g(without lens) | 30g(without lens) | 45g(without lens) | 30g(without lens) |
|
