Categories | Titanium Rod |
---|---|
Brand Name: | LHTi |
Model Number: | Ti bar |
Certification: | ISO9001:2015 |
Place of Origin: | China baoji |
MOQ: | 10kg |
Price: | $26-$27/kg |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 5 Ton per month |
Delivery Time: | 10 work day |
Packaging Details: | Packing products in wooden case. |
Grade: | Gr5 |
Condition: | annealed |
Material: | Ti6Al4V titanium sponge |
Standard: | ASTM B348 AMS4928 |
Key word: | Titanium alloy bar |
shape: | round |
Company Info. |
Baoji Lihua Nonferrous Metals Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

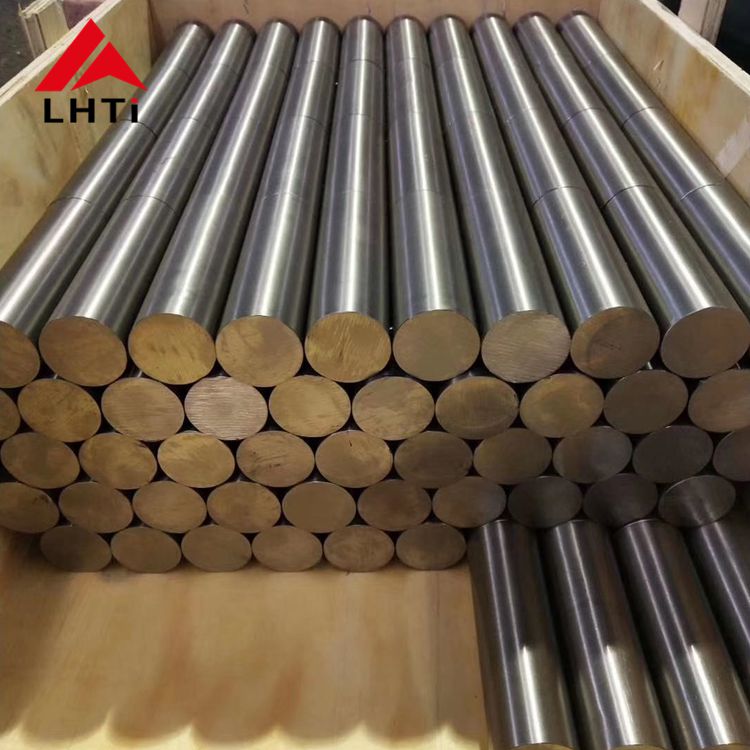

ASTM B348 AMS4928 Grade 5 TC4 Ti6Al4V Titanium alloy Round Bar price per kg
Gr5 Titanium material Feature
1.Low Density and High Specificate Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.high melting point, good anti-corrosion, excellent super-conduction and other unique characteristics
Gr5 Titanium Chemical and physical data
Gr5(Ti6Al4V) /R56400 /3.7165/ | ||||
Chemical compositions(weight%,<=) | ||||
Ti | Al | V | Fe | C |
Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
N | H | O | Other(total) | |
0.05 | 0.015 | 0.2 | 0.4 | |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
895 | 825 | 10 | 25 |

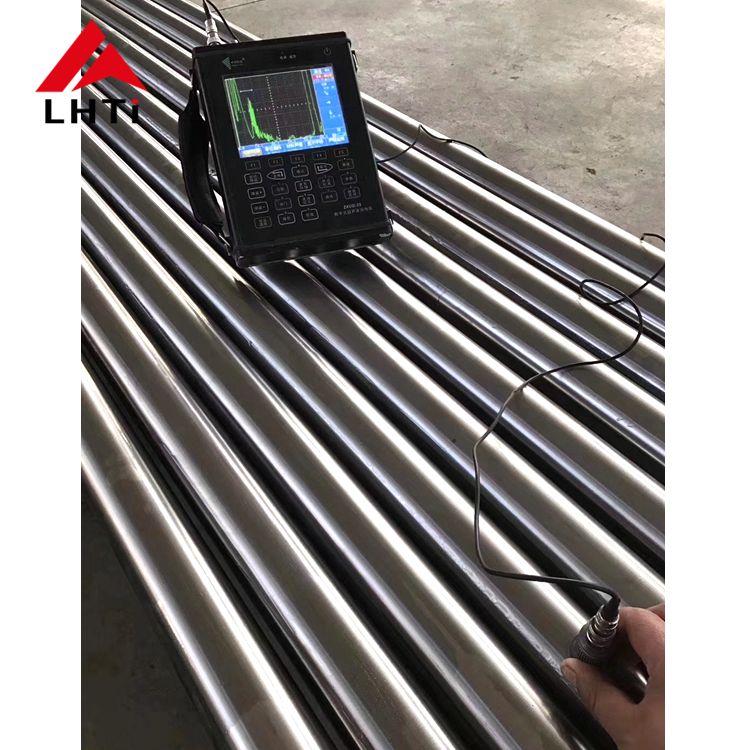

Titanium bar UT test (Ultrasonic Testing )
Other titanium grade details :
grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | |||
component | ksi | MPa | ksi | MPa | ||
Gr1 | Ta1 | 35 | 240 | 20 | 138 | 24 |
Gr2 | Ta2 | 50 | 345 | 40 | 275 | 20 |
Gr5 | Ti6Al4V | 130 | 895 | 120 | 828 | 10 |
Gr7 | Ti-0.2Pd | 50 | 345 | 40 | 275 | 20 |
Gr9 | Ti-3Al-2.5V | 90 | 620 | 70 | 483 | 15 |
Gr12 | Ti-0.3Mo-0.8Ni | 70 | 483 | 50 | 345 | 18 |
![]() |
