413mm length Full Range Raw Audio Speakers High Performence Media Parts Woofer for TV and Audio CE and RoHS

Categories Raw Audio Speakers
Brand Name: Yuesonic
Model Number: YDP413-4
Certification: CE,RoHS,REACH
Place of Origin: China
MOQ: 2000pcs
Price: Basicly USD 0.1~2
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 30000pcs per month
Delivery Time: 2~4weeks
Packaging Details: Neutral packaging/ Customise
Material: Metal
SPL: 82±3dB
Color: black
Plug: Customize
Function: Music
Waterproof: Front side waterproof
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

413mm length Full Range Raw Audio Speakers High Performence Media Parts Woofer for TV and Audio CE and RoHS

413mm length Full Range Raw Audio Speakers High Performence Media Parts Woofer for TV and Audio CE and RoHS


1. Specifications

Sound pressure84±2(A)AT 1m/1w
VOICE COLL IMP
RESONANT FREQ290±20% HZ
Temperature-25°C ~ 55°C
RATED POWER8W
MAX POWER10W
Weight46g

2. Description


NO.


ITEM


SPECIFICATION


TESTING CONDITION

1

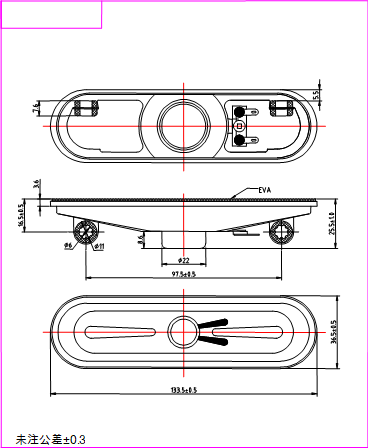

NOMINAL SIZE

133.5X36.5 MM
2

VOICE COLL IMP

8 Ohm ±20%AT 400Hz 1V
3

RESONANT FREQ

Fo 290 ±20% HzAT 25℃±3℃ 2.5V
4

OUTPUT S.P.L

MEAN VALUE

AT0.4,0.6,0.8,1.0 KHz

82±3dB

AT 1m1w MEASUREMENT
5

FREQ RESPONSE

fo ~ 20 K Hz -20dB

-20dB

6

RATED POWER

8 W
7

MAX POWER

10 W
8

DISTORTION

≤7%Max
9

OPEARTION


MUST BE NORMAL

PROGRAM SOURCE 8 W
10

NOISE


MUST BE NORMAL

SINE WAVE 8.0 V
11

HEAT TEST

AFTER TEST MEET ITEM 8,955± 2℃ 16 HOURS
12

HUMIDITY TEST

AFTER TEST MEET ITEM 8,9

40±2℃

90~95%RH 48 HOURS

13

LOAD TEST

AFTER TEST MEET ITEM 8,98 W 100 HOURS
14

MAGNET

NdFeB
15

TOTAL FLUX

MAX WELL
16

POLARIZATION

When a positive DC current is applied to the terminal marked(+),diaphragm shall move forward

17

NET WEIGHT

46±3g

3. Applications

Speakers are typically housed in a speaker enclosure or speaker cabinet which is often a rectangular square box made of several forms of wood, or sometimes plastic. The enclosure's materials and design play an important role in the quality of the sound. The enclosure generally must be as stiff and non-resonant as practically possible. Where high fidelity reproduction of sound is required, multiple loudspeaker transducers are often mounted in the same enclosure, each reproducing a part of the audible frequency range (picture at right). In this case the individual speakers are referred to as "drivers" and the entire unit is called a loudspeaker. Drivers made for reproducing high audio frequencies are called tweeters, those for middle frequencies are called mid-range drivers, and those for low frequencies are called woofers. Extremely low frequencies (16Hz-~100Hz) may be reproduced by detached subwoofers. Smaller loudspeakers are found in devices such as radios, televisions, portable audio players, computers, and electronic musical instruments. Larger loudspeaker systems are used for music, sound reinforcement in theatres and concert halls, and in public address systems.


4. Competitive Advantage

1). Reinforced nylong housing eliminates corrosion damage

2). Wire/connector/bolt mounting optional, easy to install

3). Voltage polarity protection

4). RoHS compliant, CE certified, SGS


5. Information

Place of Origin:China
Brand Name:Yuesonic
Certification:CE/RoHS/SGS
Model Number:YD78-1N

6. Custom properties

Product Name:SpeakerApplication:Outdoor
Weight:257gSound:HIFI
Material:MetalPower:15W
Standard:CE/ROHS/SGSType:Line array

7. Product commercial terms

Minimum Order Quantity:2000pcs
Price:negotiation
Packaging Details:T/T or western Union
Delivery Time:3,0000pcs per month
Payment Terms:14~28 working days after received your payment
Supply Ability:Packed in box firstly,and then reinforced with neutral packaging for outer packing
