| Categories | Waterproof Test Equipment |
|---|---|
| Place of Origin: | China |
| Brand Name: | KeRang |
| Certification: | Calibration Certificate (Cost Additional) |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C,L/T |
| Supply Ability: | 10 set /month |
| Name: | Splash Water Test Apparatus HH0808 |
| Bowl: | Size：φ35×φ25×10mm, are made of stainless steel |
| Position of the splash apparatus: | The bowl is lower than the minimum edge of the apparatus of 50mm |
| Pressure gauge: | 0.4Mpa |
| Splash structure lifting stroke: | 1m |
| Dimensions: | L*W*H=500mm×300mm×1200mm |

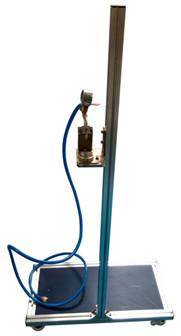

Splash Water Test Apparatus HH0808
Standard:IEC60335-2-64:2002 safety of household and similar electrical appliances, particular requirements for commercial electric kitchen machines clause 15.1.1 and 15.1.2, IEC60335-2-36 safety of household and similar electrical appliances,particular requirements for commercial electric cooking ranges, ovens, hobs and hob elements.
Application:Simulate rain dripping on the ground, the water splash on electrical products from the ground. It is used for the water proof performance test for the bottom of household electrical appliances, such as electric food processing machinery, electric stoves, washing machines, etc.
Test sample:Commercial electric cooking ranges, ovens, hobs and hob elements.
Feature: The device adopts aluminum structure, splash structure can be upward/downward adjusted; adopt the Foma wheels, it can move and also can be fixed; nozzle, bowls, and connecting tube are made of stainless steel, whole structure waterproof and anti-corrosion; equipped with a pressure gauge, real-time display the current hydraulic pressure.
Parameters:
| Parameters/Model | HH0808 |
| Bowl | Size:φ35×φ25×10mm, are made of stainless steel |
| Nozzle | Aperture φ2mm, with an inclination angle of 60°,have a distance of 50mm from the bottom of the bowl, are made of stainless steel |
| Position of the splash apparatus | The bowl is lower than the minimum edge of the apparatus of 50mm |
| Pressure gauge | 0.4Mpa |
| Test methods | Fix the splash apparatus, rotate the test sample (turntable is optional), test time is 5min, manual control |
| Splash structure lifting stroke | 1m |
| Dimensions | L*W*H=500mm×300mm×1200mm,weight:50kg |
Our Service
7X24-hour Telephone Consulting Service is available.
Reply and solution will be provided in 8 hours upon customer’s service request.
After-sales Support is available on a 7X24-hour basis, leaving no worries for customers.
Quality inspection from raw material to production, and delivery.
Professional quality control person, to avoid the unqualified products flowing to customer.
Strict inspection to Raw material, production, and delivery.
Full series of equipment in quality laboratory.
Our Team
Responsibility is the assurance of quality, and quality is the life of corporation. We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
|
