Brand Name: | Mantern |
Model Number: | MTGTV04 |
Place of Origin: | China Mainland |
MOQ: | 100pcs |
Price: | Negotiable |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, PayPal |
Supply Ability: | 30000pcs per month |
Delivery Time: | 3 - 8 days |
Packaging Details: | Standard Export Package |
Name: | Gas Timer Valve |
Material: | Aluminium |
Flow: | ≥1.5m3/h |
Max. pressure: | 10kPa |
Life: | 5 years or 10000 times |
Timer time: | Max. 90 minutes |
Company Info. |
Mantern Industrial Co., Ltd. |
View Contact Details |
Product List |

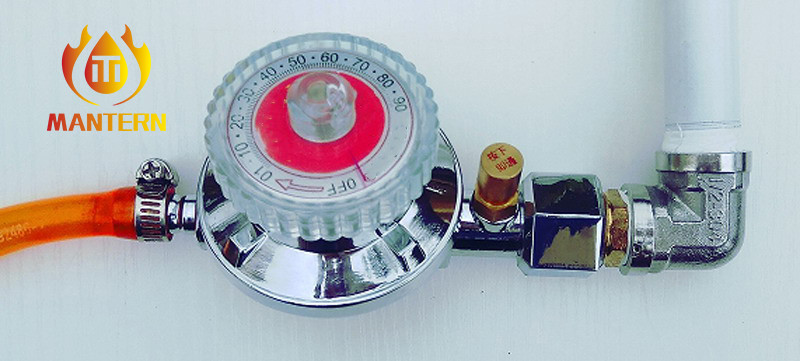

Gas Timer Valve to Max. 90 minutes for Natural Gas, LPG with Viration Protection
Features:
Gas Leakage Protection
Timer to 90minutes to save time
Avoid turning on at leakage status
Vibration protection
Save Gas
Technical data:
Item | Parameter | Item | Parameter |
Model | MTGTV04 | Leak tightness | At 22KPa, leakage ≤0.005 |
Material | Aluminum | Temperature | -20℃-55℃ |
Size | 140mm×72mm×76mm | Timer time | 1-90min |
Weight | 300g | Rotation angle | 270° |
Target gas | Natural Gas, LPG, Coal gas | Inlet | 20mm |
Flow | ≥1.5m3/h | Outlet | 11.5mm or 20mm |
Pressure | 0.8KPa-3KPa | Life | 5years or 10000times |
Max. Pressure | 10kPa | Principle | mechanical |
![]() |
