Home > Paper Processing Machinery >

HQ-800A Computer paper rolls and plastic film rolls cross cutting machine

Categories Cross Cutting Machine
Place of Origin: paper rolls and plastic film rolls cross cutting machine made in China
Brand Name: YONGYI's paper rolls and plastic film rolls cross cutting machine
Certification: CE of paper rolls and plastic film rolls cross cutting machine
Model Number: HQ-800 paper rolls and plastic film rolls cross cutting machine
Rated Power: 5kw
No-Load Rotational Speed: 60m/min
Saw Blade Diameter: 1000mm
Max. Cutting Depth: 0-450gsm
Application: automtic
Dimensions: 3.5x1.5x1.5m
Weight: 800kg
suitable material: paper, plastic film
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
MOQ: 1 set
Price: 6500USD
Packaging Details: Use in stretch film package, or wooden rack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Type: paper rolls and plastic film rolls cross cutting machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HQ-800A Computer paper rolls and plastic film rolls cross cutting machine

HQ-800A Computer paper rolls and plastic film rolls cross cutting machine

1.Feature:

1)It is suitable for transversely cut the roll material like paper, film printed compound.

2)With computer control, DC speed adjustment, automatic length setting, automatic correction

system, automatic counting, signal alarm, photo electrical trace and so on.

3)Magnetic powder clutch control the rewind tension, pneumatic automatic feeding.

4)The machine is compact construction, nice design and high robotization, is the good equipment

for the roll printed materials to cut.

5) Heavy quality blade cutting, product neat, no edges.

2.Main specification:

Model

HQ—800A

HQ-1000A

Machine width

800mm

1000mm

Max. diameter

600mm

600mm

Max. cutting width

560mm

960mm

Cutting length

50-1200mm

50-1200mm

Effective thickness

Plastic: 0.1mm-0.5mm

Paper: 75g-450g

Plastic: 0.1mm-0.5mm

Paper: 75g-450g

Fixed length precision

±0.3mm

±0.3mm

Cutting speed

10—120pcs/min

10-120pcs/min

Power

4.5kw

5.5kw

Suitable Power supply

380v/50hz

380v/50hz

Weight

700kg

1200kg

Machine dimension

3500×1300×1500mm

3500×1500×1500mm

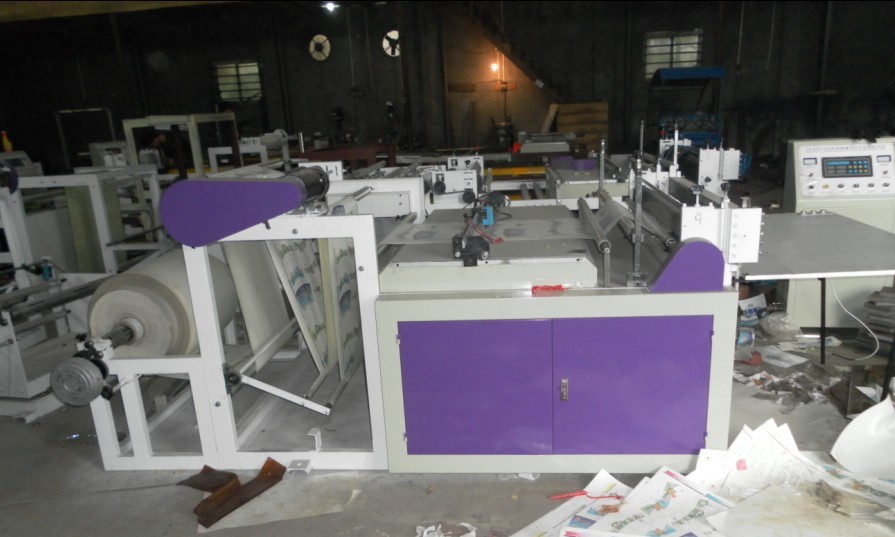

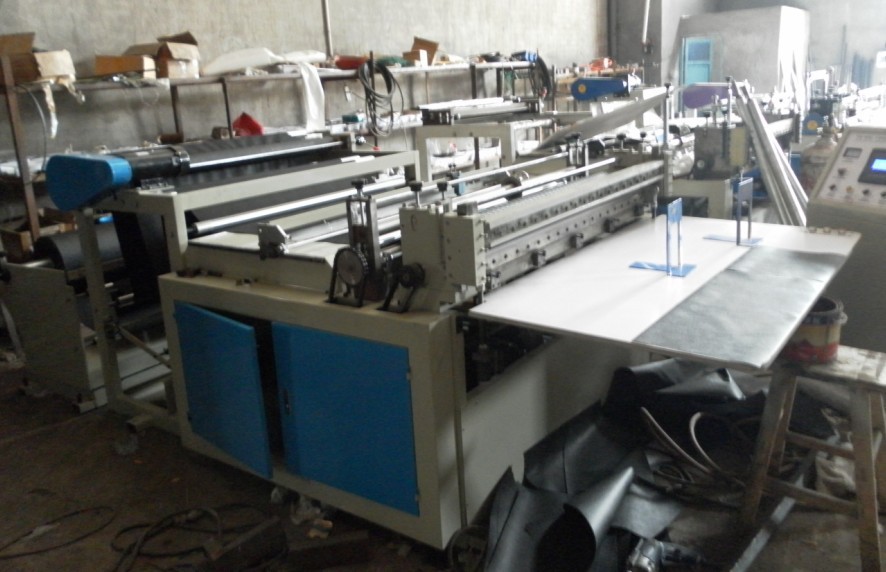

3.picture showroom:


Cheap HQ-800A Computer paper rolls and plastic film rolls cross cutting machine for sale
