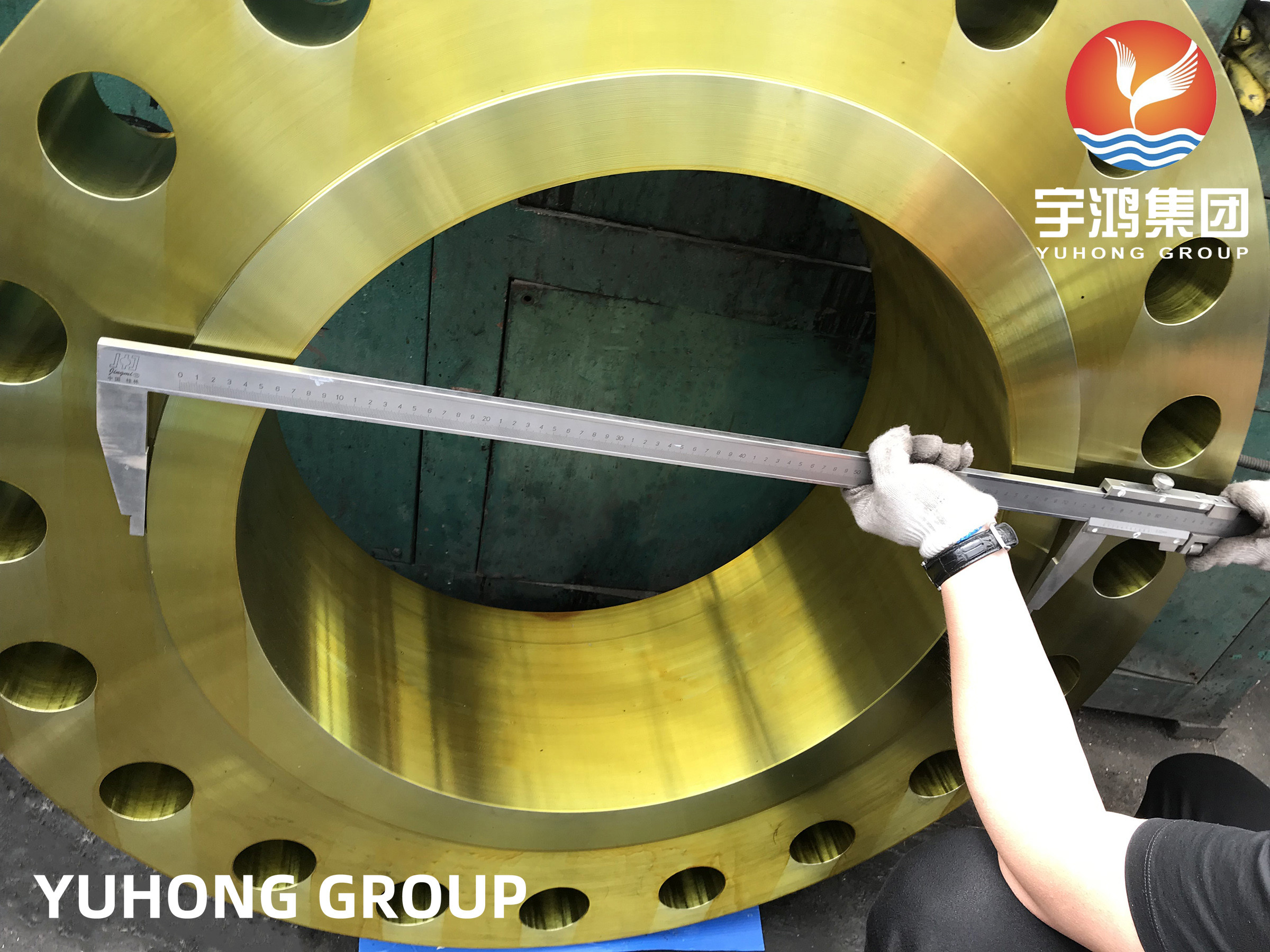

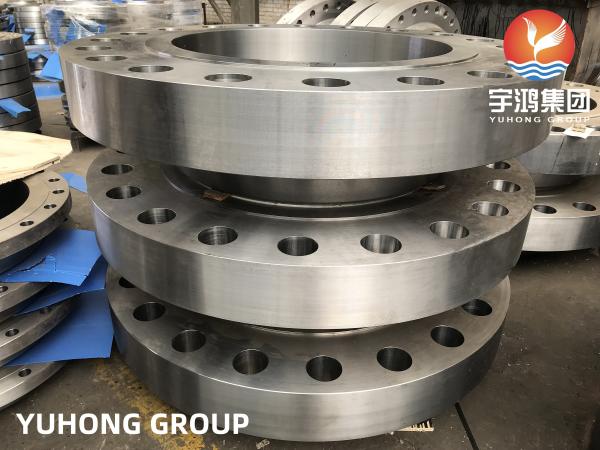

CARBON STEEL FLANGE WNRF B16.47 TYPE A,B A694 GR F42 F46 F48 F50 F52 F56

CARBON STEEL FLANGE WNRF B16.47 TYPE A,B A694 GR F42 F46 F48 F50 F52 F56

ASTM A694 is the standard specification for carbon and alloy steel forgings for pipe flanges, fittings, valves, and parts for high-pressure transmission service which are manufactured for use with high-strength transmission-service pipe. There are 9 steel grades specified which are all within Metals-Piping’s manufacture & supply capability: ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70. All grades shall be furnished suitable for field welding and be free of welding-repair. The high-strength A694 flanges, fittings or valves are commonly seen in oil & gas wellhead systems, offshore drilling platforms, as well as long-distance high-pressure oil & gas transmission pipelines.

YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.

Weld Neck Flanges Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications. We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.

Product Range:

WNRF Flanges Size : 1/8" NB TO 48"NB.

WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Stainless Steel WNRF Flanges: ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181

Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

Value Added Services

• Hot Dip Galvanizing ,
• Epoxy Coating.

Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B
