| Categories | Standing Seam Roll Forming Machine |
|---|---|
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 40days |
| Packaging Details: | Standard Export Packing |
| Dimension(l*w*h): | 9800mm*1500mm*1510mm |
| Use: | Roof |
| Tile type: | Colored Glaze Steel |
| After-sales service provided: | Video technical support |
| Warranty: | 24 months |
| Control system: | Totally automatic PLC Taiwan Delta |

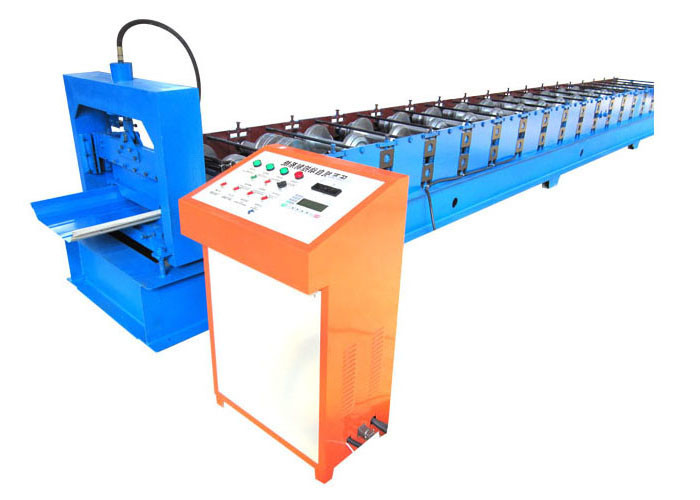

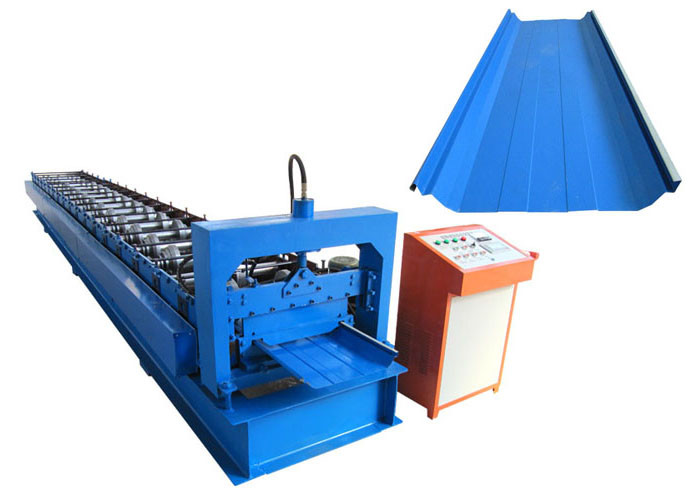

Coil Width 600mm Standing Seam Roll Forming Machine
| 1. | Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate |
| 2. | Coil width | 600mm |
| 3. | Thickness | 0.3-0.8mm |
| 4 | Efficiency width | 470mm |
| 1. | Color | Blue body, Red and yellow secondary | According to customer requirements |
| 2. | Appearance size (About) | 9800mm*1500mm*1510mm | Excluding the console |
| 3. | Rows of rollers | 20 rows | |
| 4. | Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| 5. | Diameter of shaft | ￠70mm | |
| 6. | Service life | 10 years | |
| 7. | Total power | 7.5KW |
| 1. | Productivity | 20-25m/min | 1 day=8 hours 12,000m/day |
| 2. | Cut Mode | Hydraulic forming after cutting off | |
| 3. | Cutter material | Cr12 Heat Treatment | Thick, high wear-resisting knife plate |
| 4. | Electronic control system | PLC, Touch Screen, Encoding counter |
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.
|
