XGZ Type Scraper Type Chip Conveyor With Cast Stone Liner CE Approval

Categories Submerged Scraper Conveyor
Brand Name: Green Eco-Equipment
Certification: ISO9001:2008/CE
Place of Origin: Henan, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Delivery Time: 10~15 work days after receiving fullpayment.
Packaging Details: In Bulk/Tray/Wooden Case/As Customer's Requirement
Condition: New
Material: Carbon Steel
Voltage: 220V/380V/As cuntomer's request
Structure: Chain Conveyor
Slant Angle: Max. 20 degree
Chain Material: 40Cr/ Q245 Carbon steel
Application: Manufacturing Plant, Grain Storage, Energy & Mining
After-sales Service Provided: Field installation, commissioning and training
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XGZ Type Scraper Type Chip Conveyor With Cast Stone Liner CE Approval

XGZ Type Scraper Conveyor With Cast-Stone Liner For Conveying Bulk Materials

Product Description

Scraper conveyer with cast-stone liner, often referred to as XGZ type scraper conveyor, is mainly used for horizontal transportation, and also can be used for inclined transportation. It is mainly used for transportation of various materials with below 300mm particle size. It can be used for conveying materials of mine, metallurgy, coal mine and chemical industry that do not have too high requirement for water content. This kind of scraper conveyor is suitable for the working environment below 250℃. In the process of conveying, it is mainly divided into single layer and double layers conveying, and very convenient in the installation and maintenance, which helps to reduce the workload of the staff.



Main Features

1. Good wear resistance and long service life with the help of cast-stone liner. And the quenching process makes the service life of the chain to be more than five years.
2. Low energy consumption. With the aid of frictions between the materials ,the friction force can push the materials forward ,so the power can be saved 40% to 50% than screw conveyor.
3. Good tightness and safety. Reducing the materials to overflow.
4. Large throughput. Be up to 1000m3/h.
5. Reasonable arrangement process. Materials can be fed and discharged from many holes.


Main Parameters

ModelXGZ-06XGZ-08XGZ-10XGZ-12XGZ-14
Delivery value(t/h)100-300200-500300-600400-800500-1000
chain speed(m/s)0.48-0.760.48-0.760.48-0.760.48-0.760.48-0.76
conveying distance(m)6.7-64.38.2-64.38.6-43.68.9-63.58.6-53.6
material diameter(mm)<200<300<300<300<300
scraper width(mm)600800100012001400
Scraper spacing(mm)10241024102410241024

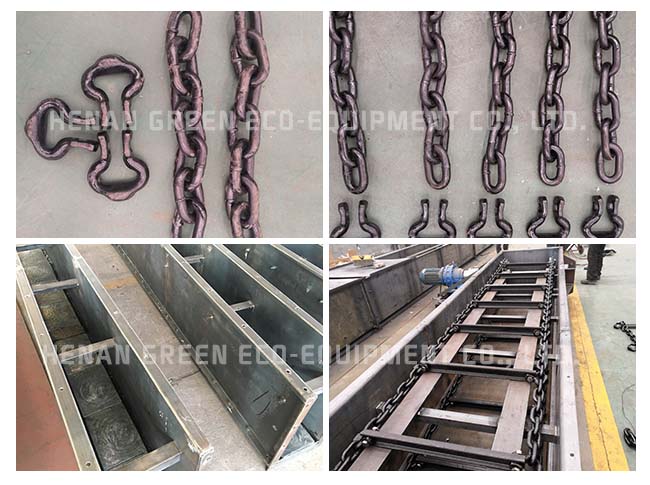

Details Show

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.


Project Site
