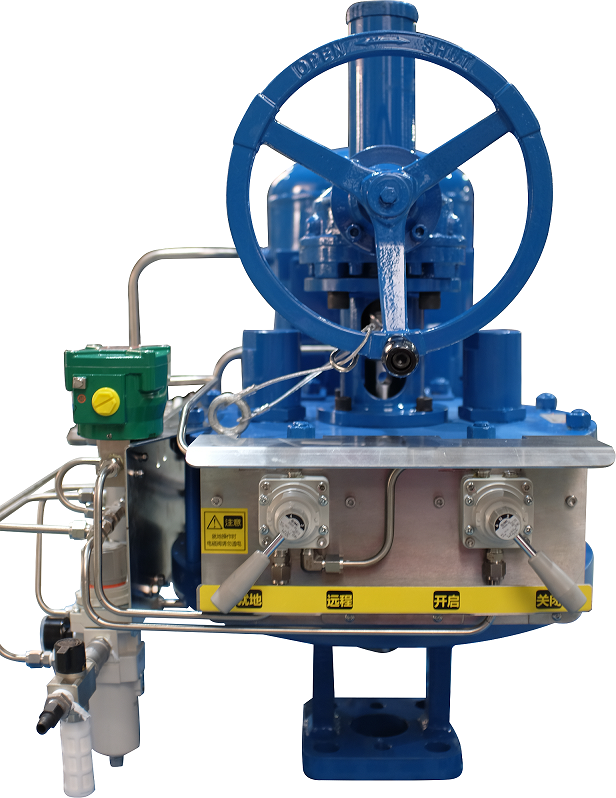

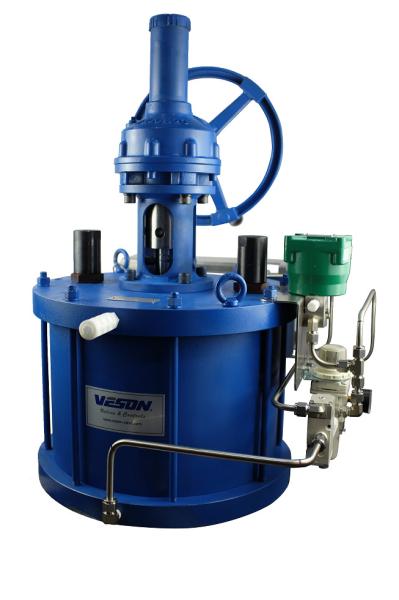

150 Psig Pneumatic Linear Actuator Pneumatic Gate Valve Actuator

The VS actuators are designed to operate most types of wedge gate valves, slab gate valves, knife gate
valves, globe valves, tank valves and rising stem ball and plug valves. Other applications include louvers.

Pneumatic Cylinder High Speed Linear Valve Actuator For Rising Stem Valves Carbon Steel Material

Pneumatic Actuators – Linear series

Pressure rating of 150 psig

Standard operating temperature range -23℃ to +74

Low temperature option available, -40℃ to + 65℃

High temperature option available, -10℃to+110℃

Custom pressure ratings available

Actuators designed and manufactured under an accredited ISO QA program

Designed and manufactured standard: ISO/FDIS 12490

Modular Design Construction

1. SPRING CONTAINER

- Several spring containers available

2. PNEUMATIC CYLINDER

- Widest variety of cylinders available
- Widest variety of cylinders available

3. HYDRAULIC CYLINDER

- Widest variety of cylinders available
- Implemented with hydraulic pump for manual override HP

4. JACK SCREW WITH HAND-WHEEL

- HW manual override suitable for smaller actuators

5. HAND-WHEEL WITH GEARBOX

- Hand-wheel with gearbox

6. MOUNTING BRACKET

- Open type

7. CONTROL SYSTEM

- Panel or cabinet version
- Customized design

Modularity

VS Pneumatic Series represents a broad range of field proven linear valve actuators suitable for automating most
types of rising stem valves in safety shutdown and control applications. The VS actuators are manufactured in accordance with strict quality standards and assure reliability and safety in your specific service. This catalog lists standard models intended to cover a wide range of sizing applications. Custom designed models are also available for specialized thrust or stroke requirements, or those beyond the scope of this listing, including linear hydraulic operated actuators.

The VS actuators are designed to operate most types of wedge gate valves, slab gate valves, knife gate
valves, globe valves, tank valves and rising stem ball and plug valves. Other applications include louvers.
