Dual Channels Basic Walkie Talkie 1800mah Rechargeable Battery With VOX Function

Categories Handheld Walkie Talkies
Brand Name: Baofeng
Model Number: UV-5R
Certification: CE ROHS
Place of Origin: China
MOQ: 2pcs
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000Paris Per Month
Delivery Time: 15-25 working days
Packaging Details: 510*375*570mm/50/23.5/24.3
Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520MHZ (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: SMA -Female
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Earpiece / mic type: Kenwood Plug type
Dimension(W x H x D): 58*240*32
Weight: 238g(including battery, antenna)
Power adapter: Input: AC100-240V, 50-60Hz; Output: DC10V/500mA;
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dual Channels Basic Walkie Talkie 1800mah Rechargeable Battery With VOX Function

Long Range Dual Channels Build 1800mah Rechargeable Battery Handheld Walkie Talkie Two Way Radio with VOX Function


Products Details


General
Frequency Range65-108MHz(FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No.128
Frequency Stability±2.5ppm
AntennaHigh gain DualBand antenna
Antenna Impedance50Ω
Operating VoltageDC 7.4V
Mode of operationSimple or semi-duplex
Antenna :SMA -Female
Earpiece / mic type :Kenwood Plug type

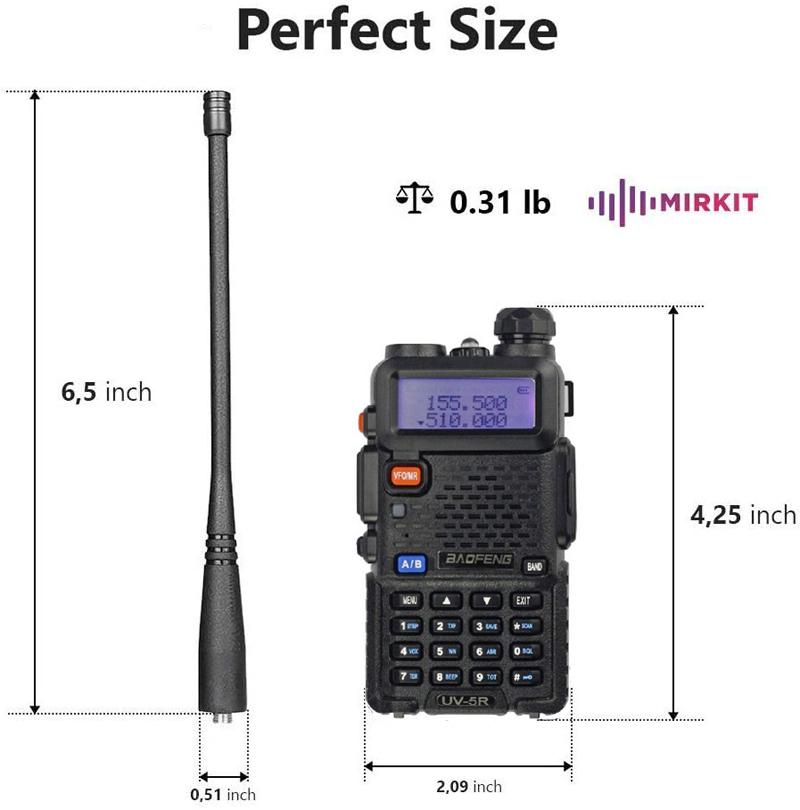

Dimension(W x H x D)132 x 60 x 35 mm (not included antenna)
Weight238g(including battery, antenna)
Power adapterInput: AC100-240V, 50-60Hz;
Output: DC10V/500mA;
Plug Type: US
Transmitter
Output power5W / 1W
Modulation Mode16kΦF3E / 11kΦF3E
Maximum deviation5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation7μW
Adjacent Ch. power≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics6dB
Current≤1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion≤10%

Our Advantage and Strength

1. Shenzhen E-style technology company is an assembling factory with more than 10 years history.

2. Very good at small electronic products handling. Assembling, testing and export, we have strong supply chain system, can purchase high quality raw material at very competitive price.
3. We have 2 assembling line, 1 packing line, 1 raw material warehouse, 3 offices and 6 employees dormitories.

4. With about 60 workers, 3 engineers and 6 QC. different professional devices on radio signals receiving, launching and testing.


FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: FOB, CIF, EXW

Q4. How about your delivery time?
A: Generally, it will take 10 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
