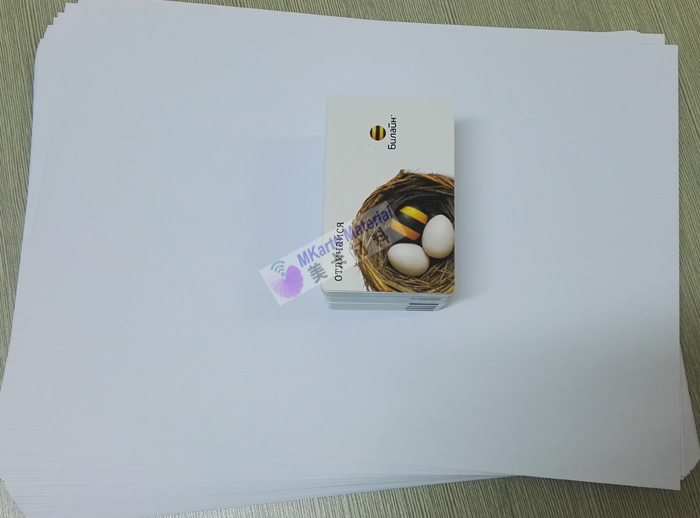

Konica A3 A4 Digital Printing PVC Sheets For Plastic PVC Card Making

Konica Digital Printing PVC Sheets , Print Coating on One Side , White Plastic Card Sheet

Application of Konica Digital Printing PVC Sheets

Konica Digital printing PVC sheet MDP-KM-W is suitable for Konica Minolta digital printer series. It could be printed directly by Konica printers with perfect printing quality.

● Suitable for the whole series of Konica Minolta printers.
● It has superior aging resistance performance comparing with other similar products. After 240h’s aging test (75℃, 95%RH), the peel strength is no less than 4.5N/cm.

● High definition images

● No crack occurs on the printed images after lamination at high temperature.

Konica Digital Printing PVC Sheets Technical Specification

Parameters:
1. Size: A4, A3 or as per customer requirements ( tolerance +/-0.5mm )

2. Thickness: 0.15mm-0.40mm

3. Coating description: digital ink coating on one side and lamination glue coating on another side.

4. Color : Common white/supper white

5. Package method : 50 / 100 / 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets .

6. Storage condition: Sealed, moisture-proof, room temperature under 40℃

Product Features:

Storage Conditions of Konica Digital Printing PVC Sheets
For all range of thicknesses available in rolls and sheets.
Besides PVC sheet and overlay, we also supply PETG and PC sheet and coated overlay / uncoated overlay.
Ideal storage conditions between 10-30 degree.
Ideal RH 40-70%
It should not be stored in direct sunlight and avoid major thermal
Fluctuation
Stored in original packaging

Packing of Konica Digital Printable PVC sheets

PVC Plastic cards process in general :

1. Print directly to the surface of sheets

2. Hot press laminate with PVC coated overlay films when the ink dries.

3. Punch out cards from the fused materials.

4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.

5. Finished cards.

MKarte Material Technology (Tianjin) Limited (hereinafter referred as MMT) has been specializing in supplying all-round material solutions for card production industry worldwide. Our products are widely used in the card body production of such cards as EMV financial card, ID card, telecom cards, IC cards and magnetic stripe cards. Etc. With its own professional R&D, manufacturing and marketing teams, MMT has been always serving its global card industrial customers with the products and services of the best performance/price ratio. Based in Binhai New Area, Tianjin, China, MMT has been serving the card industry for over ten years successfully with its outstanding advaes in its product, price and service. Till now, MMT has already established long-term business cooperation with many high-end customers located in nearly 30 countries including USA, Russia, India, Argentina, Mexico, Israel, Ukraine, Turkey, Chile, Malaysia, etc.

The main products made by MMT include:

1. PVC coated overlay & PVC uncoated overlay for card body lamination
2. PVC inkjet printing sheet (suitable for various inkjet printers, white/gold/silver color/transparent)
3. PVC digital printing sheet (for HP Indigo/Konica Minolta/MGI/FUJI Xerox）
4. PVC core sheet ( for offset/silk screen printing or work as middle core sheet)
5. PC core sheet ( for offset/silk screen printing or work as middle core sheet)
6. PETG core sheet ( for offset/silk screen printing or work as middle core sheet)
7. PC coated overlay & PC uncoated overlay for card body lamination
8. PETG coated overlay & PETG uncoated overlay for card body lamination
9. Coated overlay with magnetic stripe (HiCo/LoCo)
10. Non-lamination inkjet printing sheets (dragon sheet)
11. Card lamination steel plate series (Ultraglossy/Glossy/Matte/Textured)
12. Card lamination cushion pad series

MMT has the update-to-date production facilities, well-proven quality control management system and supply chain management system. With its strict internal cost control and the mature company operation experiences, MMT has been providing the products with the best performance/price ratio to our kind customers.

With its professional marketing and technical support team, we are more professional in serving our customers worldwide in each chain of pre-sale, mid-sale and post-sale stages.

MMT is always ready to shake hands with smart you for win-win cooperation anytime! We are doing all for your better cards!
