500 cycles Power Tools C5000mAh 1.2V NIMH Rechargeable Batteries UL CE KC

Categories NIMH Rechargeable Batteries
Brand Name: /OEM
Model Number: C5000
Certification: UL IEC EN61951
Place of Origin: CHINA
MOQ: 3000pks
Price: negociate
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300000pcs/day
Delivery Time: 3-30days according the qty
Packaging Details: 20pcs/box, 480pcs/ctn
Material: NI-MH
SIZE: D26*H51mm
Capacity: 5000mA
Voltage: 1.2V
Type: NI-MH rechargeable battery
Internal Iedance: ≤8mΩ
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

500 cycles Power Tools C5000mAh 1.2V NIMH Rechargeable Batteries UL CE KC

NIMH C5000mAh 1.2V Rechargeable Batteries High Capacity With UL CE

KC Certification

  • Ready To Use and low self discharge technology to keep high capacity retention

  • High capacity in this size

  • OQC report and Lab testing offered before battery delivery to keep tracking records

  • Safety battery struction and maintenance free cyle life more than 500 cycles

  • MSDS UN38.3 CB IEC DG License for overseas air sea and courier delivery

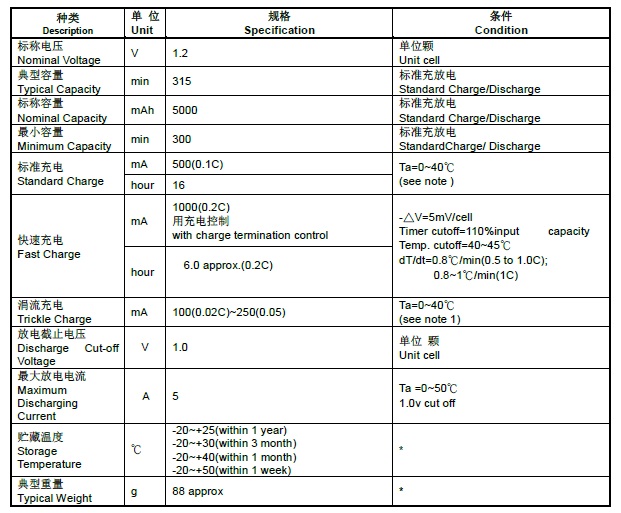

1. Specification of the battery pack:

Sale delivery: 3 -4days.
Mass production period: 10-15days

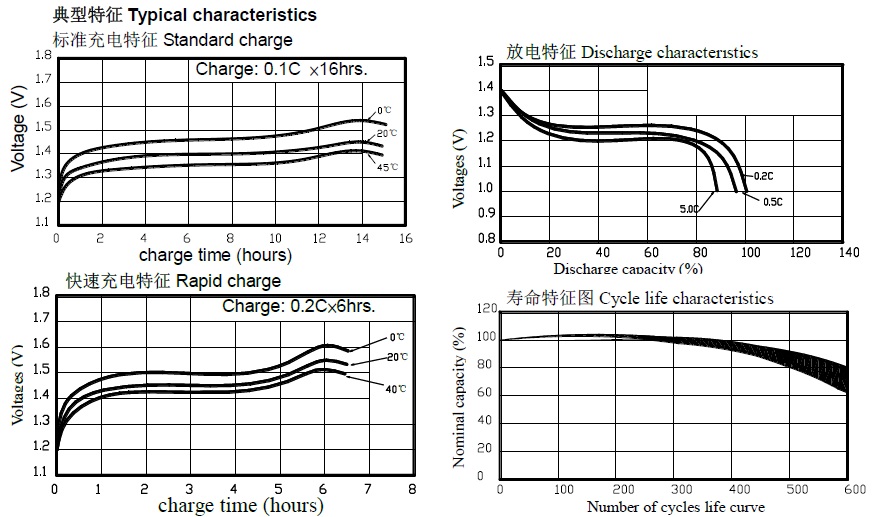

2. Discharge characteristic




3. Safety test

Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C) ≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until the cell teerature returns to ambient teerature.(cross section of the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then leave for 24hrs,check battery before / after drop

Thickness of wooden board: 30mm
Direction is not specified
Test for 3 times
IEC Cycle Life Test: ≥500 cycle IEC61951-2(2003)7.4.1.1
4. Ni-Mh battery we have the size of AAA, AA, A, SC,C,D,F.
Capacity from 250mAh to 15000mAh.
SizeModel No.Nominal Voltage (V)Nominal Capacity (mAh)Dimension with TubeWeight Approx.(g)
Diameter (mm)Height(mm)
CH-C1500A1.2150025.851.042
H-C2700A1.2270025.851.067
H-C3300A1.2330025.851.075
H-C4500A1.2450025.851.085
H-C5000A1.2500025.851.088

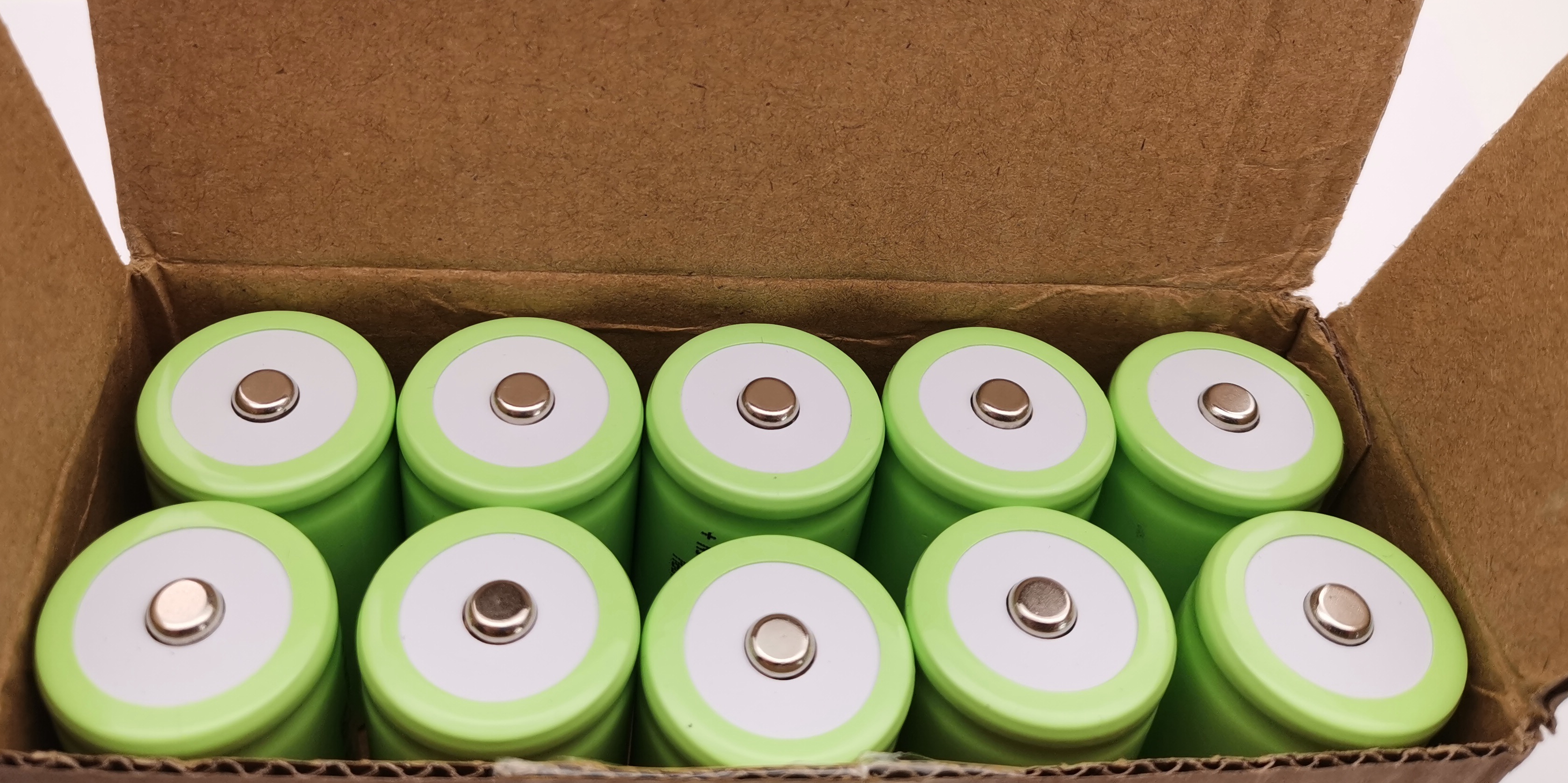

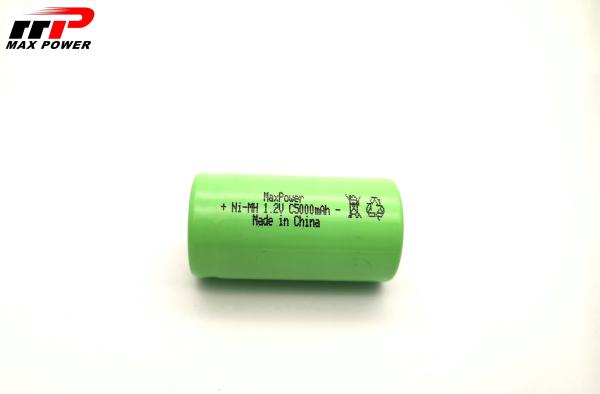

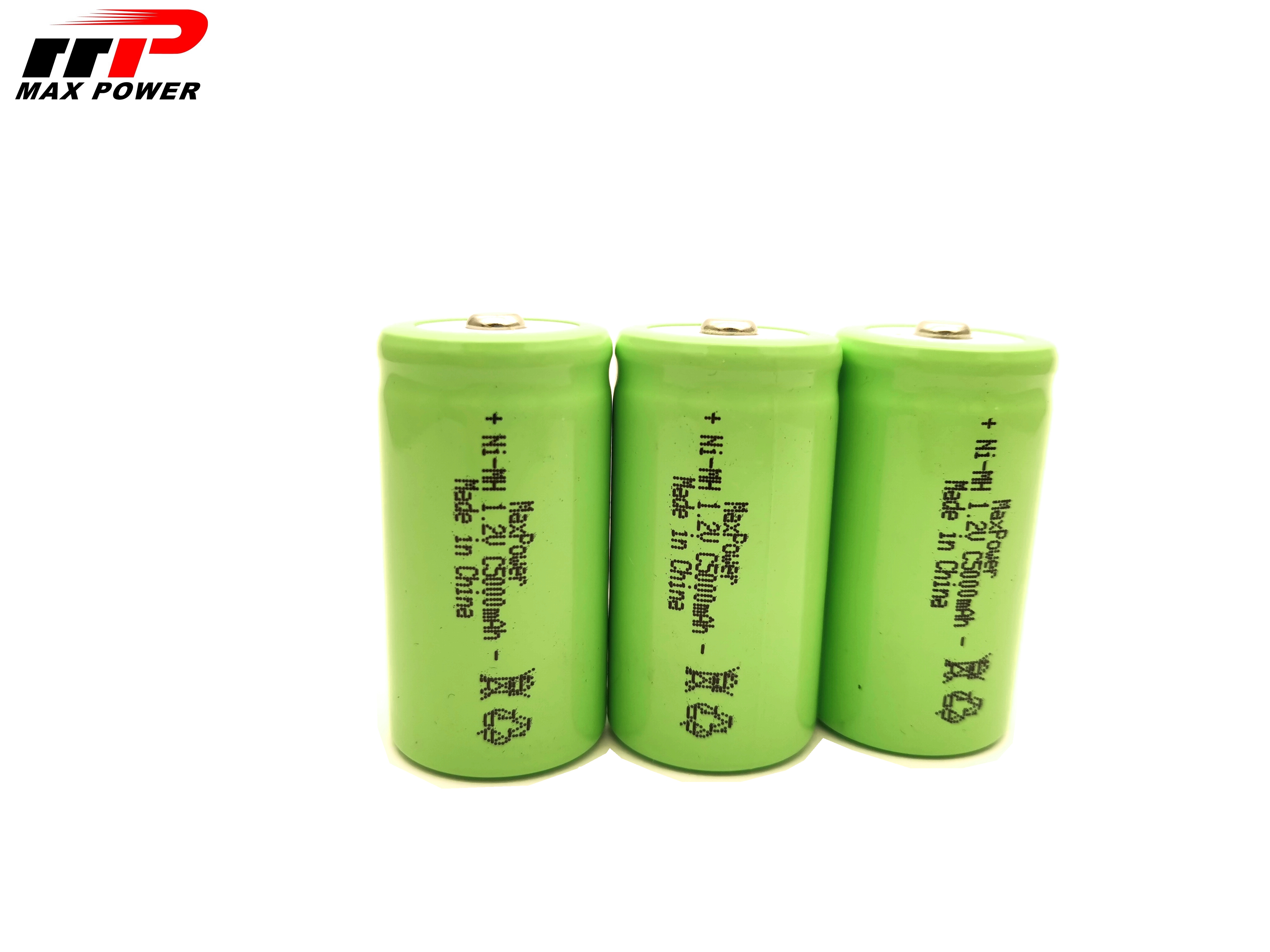

5.More pic of the C5000mah Ni-Mh battery


6. Q&a;A
Q: How to give the quality garantee?
A: We give 1 year garantee for our battery packs. As the faulty allowance is less than 0.2%. For more we will give
replacement in the next order.
Q: How long will be the delivery date?
A: Normally one month if have cell stock,15 days will be ready.
Q: How to start the cooperation?
A: You can take our sale and confirm the quality and packing details. Then start to order from small order.
7. Hope 13years experience in battery field can help you out from your project.
