| Categories | Purlin Roll Forming Machine |
|---|---|
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 40days |
| Packaging Details: | Standard Export Packing |
| name: | sheet metal roll forming machines |
| thickness of coil sheet: | 0.7-3mm |
| Weight of machine: | 7 tons |
| hydraulic oil: | 40# hydraulic oil |
| hydraulic pressure: | 10-12MPa |
| hydraulic station power: | 22 KW |

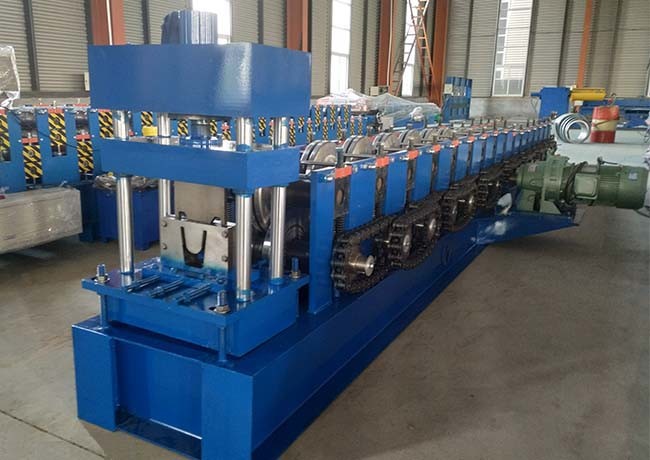

Weight 7 Tons Purlin Roll Former , U Channel Roll Forming Machine Pressure 10-12MPa
Technical parameters:
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.5-3mm |
| Machine details | |

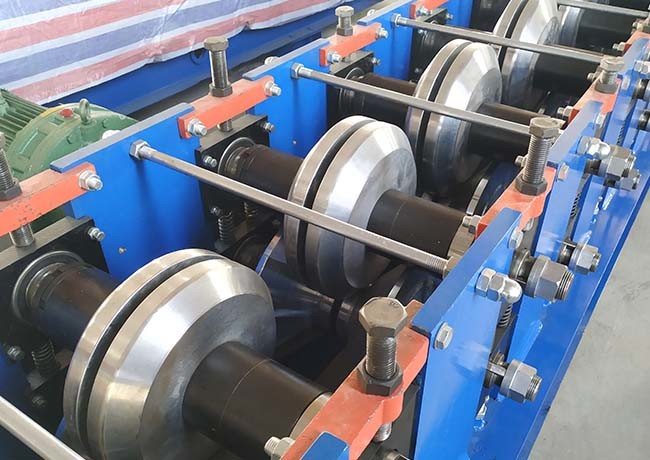

| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 80mm |
| forming steps | 12 rows |
| productivity | 20-25m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |

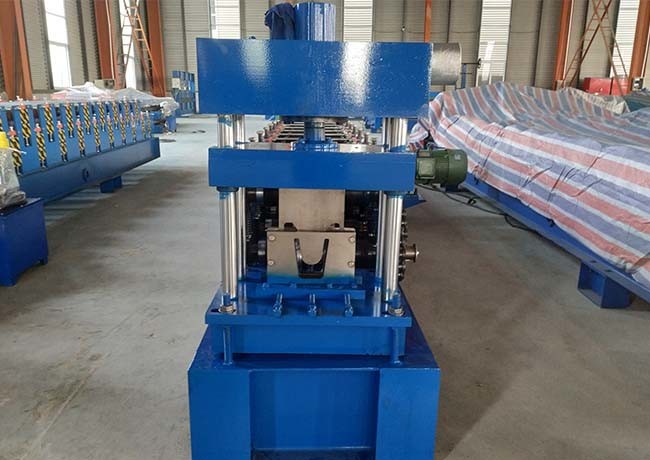

| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
Characteristic |
|
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2. Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the
profile drawings, material information, your special requirements.
3. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most
suitable design and production plan for the machine that you are
going to book with us.
4. Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control
complies with ISO 9001.every machine has to past testing running
before it's packed for shipment.
|
