Categories | Sandwich Panel Machine |
---|---|
Certification: | CE |
Place of Origin: | CHINA |
MOQ: | 1 |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 120 |
Delivery Time: | 40-65 DAYS |
Packaging Details: | nude |
use: | wall and roof panel |
power: | 32kw |
length: | 30 meter |
weight: | 13 tons |
shipping: | container |
warranty: | 1 year |
Company Info. |
cangzhou tuoming machine co.,ltd |
View Contact Details |
Product List |

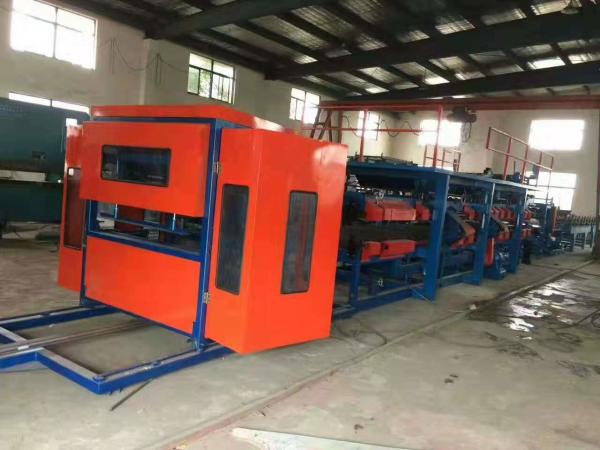

Automatic eps sandwich panel roll forming machine line
composition | Color sheet tile press machine,cutting device , main forming machine, PLC control system, out put table |
Controlling system | PLC:Taiwan"Delta", Screen: domestic, Transducer:SanJing |
Sandwich panel roll forming part (main forming machine) | |
Frame | 0.6cm thick square steel tube |
size | 8m*2.3m*2.3m |
Number Rubber shaft | 32 rows |
Total power | 32 kw |
Voltage | 380V,50HZ,3phase |
Working speed | 4-8m/min |
weight | 13tons |
Press material | aluminum sheet /tin sheet/polystyrene |
Sandwich Panel thickness | 1cm-30cm |
A. terms of payment
1.type of payment: 30% deposit in advance, when pick up the goods, the remaining need to be finished before transportation.
2. Delivery Time:45- 60days after the deposit.
3. Installation and debugging:
In case of sending technician to buyers country, The Buyer should bear all the cost including: visa ,round trip ticket ,Safety, the translator and suitable accommodation, also buyer should pay the salary 50-100USD/day.
4. Products warranty:
12 months, we provide technical support for whole life of the equipment.
5. Packaging Details: equipment for nude.
![]() |
