Categories | CT PT Testing Equipment |
---|---|
Brand Name: | RISING |
Model Number: | RSHL-200A |
Certification: | ISO CE |
Place of Origin: | China |
MOQ: | 1 SET |
Payment Terms: | L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 SET PER Month |
Packaging Details: | Wooden package |
Power: | Electronic |
Capacity: | 5VA |
Standard current ratio: | 0.1A~10000A/5A, 1A |
Usage: | Instrument |
Size: | 280mm×60mm×60mm |
Warranty: | 1 Year |
Company Info. |
Wuhan Rising Electric Co., Ltd. |
View Contact Details |
Product List |

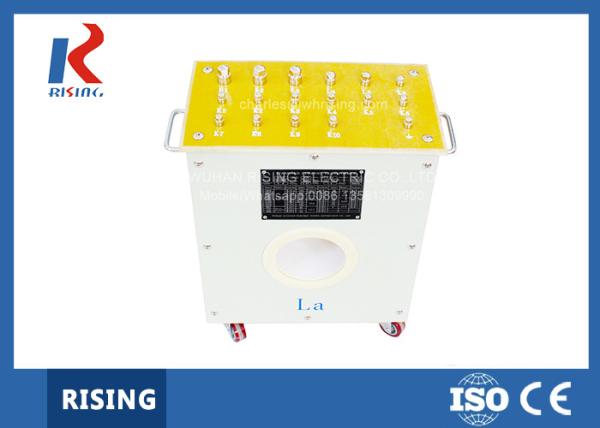

RSHL-200A CT PT Testing Equipment High Accuracy
Standard Current Transformer
As a standard, it is used to verify current transformers of two or less accurate grades, or for other precise measurement.
Technical Parameters
Temperature: -5 ─ +40℃
Humidity < 80%
Capacity:10 VA
Power factor:0.8
Working voltage:1kV
Once or twice withstand voltage:3kV
Allow long - term operation of rated current
Rated current ratio: 2.5,5,10,25,50,100,200/5A
Accurate level: 0.01 lever
![]() |
