240m3/H Capacity Mud Cleaning Equipment Well Mud Cleaner 1250kg Weight

Categories Mud Cleaning Equipment
Brand Name: TR Solids Control
Model Number: TRQJ250*2S-100*16N
Certification: API Certificate, ISO9001 Certificate
Place of Origin: Xi'an,China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets / Month
Delivery Time: Within 20 days after deposit
Packaging Details: Pallet or wooden case
Capacity: 240m3/h
Desander Cyclone Qty: 2nos
Desilter Qty: 16nos
Inlet Size: DN150mm
Separation Point: 15-44um
Weight: 1250kg
Desander Cyclone Specs: 10"
Desilter Cyclone Specs: 4"
Working Pressure: 0.25-0.4Mpa
Outlet Size: DN200mm
Bottom Shaker: TRZS752
Dimension: 1835*1230*1810mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

240m3/H Capacity Mud Cleaning Equipment Well Mud Cleaner 1250kg Weight

Best Price Solids Control Drilling Well Mud Cleaner , Drilling Mud Cleaner


Introduction

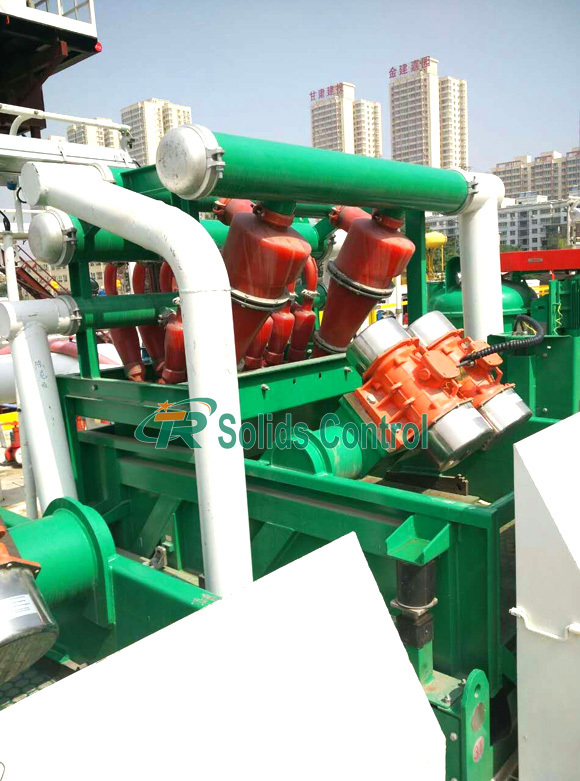

Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker.


TR mud cleaners are designed to handle the entire circulating volume to remove and dry solids while retaining premium base fluid. They are equally effective for both weighted and unweighted drilling-fluids. With our drilling fluids mud cleaners, the hydrocyclones make the primary separation with underflow directed onto the shaker vibrating screen. Our mud cleaners have been proved effective in lowering both drilling-fluid and disposal costs.


Key Features of TRQJ Series Mud Cleaner

  1. Mechanical Deck is adjustable during operation, reliable performance.
  2. Hook-strip shaker screens for fast screens changing with screens.
  3. Compact design with small footprint, with top feed and weir feed two option.
  4. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.
  5. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
  6. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.

Technical Specification of Drilling Mud Cleaner


ModelTRQJ200×1S-100×4NTRQJ200×2S-100×8NTRQJ250×2S-100×12NTRQJ25×3S-100×20N
Capacity60m³/h120m³/h240m³/h320m³/h
Desander Cyclone Specs8"10"
Desander Cyclone Qty1223
Desilter Cyclone Specs4"
Desilter Cyclone Qty481220
Working Pressure0.25~0.4mpa
Inlet SizeDN125mmDN150mmDN150mmDN200mm
Outlet SizeDN150mmDN200mmDN200mmDN250mm
Separation Point15μm~44μm
Bottom ShakerTRZS60TRZS752TRZS752TRZS703
Dimension1.51×1.16×2.0m1.835×1.23×1.81m1.835×1.23×1.81m2.42×2.15×2.15m
Weight600kg980kg1250kg2350 kg
RemarkAll mud cleaners could be customized without bottom shaker.


Main Application


Drilling mud cleaner is now widely used in trenchless HDD, oil & gas drilling, city bored piling, tunneling construction, Drilling Waste Management, Coal Bed Gas Solids Control System, mining, Oil Mud Seperation, environment protection, Oil Sludge Dewatering Systems, Water Drilling etc. TR mud cleaner has exported to many countries like Egypt, USA, Canada, Thailand, Poland, Australia, UAE, South Africa etc.


Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
