13 Buttons T38 Rock Drill Accessories For Hard Rock Drill Diameter 76mm

13 buttons T38 Thread Button Bits for Hard Rock Drill Diameter 76mm

Our T38 Thread Button bits:

Diameter: 43mm, 45mm, 48mm, 51mm, 57mm, 64mm

Skirt body: retrac, and normal,

Face: flat, uniface,

Carbide: Dome, ballistic

Used in drifting and tunneling, dimensional natural stone quarrying

To match shank rod, and MM and MF Hex drifter rod for light-duty top hammer.

T48-76mm specifications:

Button figuration Gauge Buttons: 8*11mm Front Buttons: 5*11mm

Thread: T38 Diameter:76mm

Weight: 3.2KGS

Carbide Button Design: Semi-Ballistic Face Design: Drop Center

Water Holes: 4 on front, 1 on side

Advantages of our Threaded Button Bits:
1.Good quality of carbide buttons with good anti-abrasion performance
Carbide Grade YK05 or T6.
2.45CrNiMoVA or suitable steel as skirt material
3.Hot press the carbide button bits on skirt to provide reliable performance
4.Single packing in wooden box
5.Competetive price with reliable qualtiy

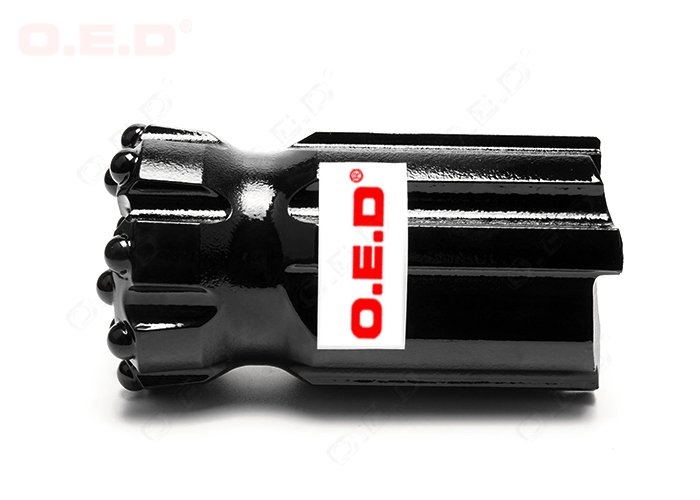

13 Semi-Ballistic carbide inserts T38 threaded drill bits with drop center design, 76mm diameter and retrac skirt body for bench drilling and underground long hole drilling.

T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground

Remarks: Other specifications are available according to customers' requirements

Mining Tool B.D of O.E.D Machinery Grop, has been dedicated in development and production of mining drill rods and drill bits for many years, which forms six main series products: taper drill tools, thread drill tools, rotary drill tools, blast furnace frill tools, DTH drill tools, and coal mining tools. We can produce high quality of nearly hundreds of products, like hexagonal thread drill rod, extension rod, speed rod, DTH drill rod, blast furnace drill rod and so on, also shank adapter coupling sleeves, button bit, chisel bit, cross bit, etc.

Our products can be widely used in many basic energy construction projects, such as exploring new mountains, minerals, metallurgy, rail, highway, and water and electricity infrastructure etc.

Our member has stong capability of researching developing and advanced production technology. We have passed ISO9001 International Wuality System Certificate, we can provide superior standard drill tools and also customized drill tools.

Our Sales company, HUNAN GOLDEN GLOBE I AND E OED CO.,LTD., have over 20 years experience of export. We have exported the products to many countries.  Trust us that we can provide reliable service for you.

Why trust us and how to control the quality?

Let's me introduce our company.

We have three main workshops, heat treatment workshop, forging workshop and CNC workshop.

Material is very important for a good product. We have excellent heat treatment equipment to control the material quality. For each lot of products, we all have material certification. So even you have some special material requirement, we have best  solution for you. Do not hesitate to ask us if you have any question of material. Here's our heat treatment equipment.

Turning machine and grinding machine are also very important. we have advanced CNC machines and skillfull workers to keep the stable quality.

During production, we have engineer to check the dimensions. Our workers are highly trained and they will inspect the products after machining.

For the final inspection, we'll check the dimensions one by one to make sure the quality is qualifed. The inspection report will be sent to you before shipping if you have ordered our products.

We have provided many solutions for different customers.

For example:

Our customer in Norway. They required a special hole of the drill bit to match their specific drill rod.

Our customer in Korea. We have changed the material of their skirt and carbide button bit to diminish the consumption of drill bit.

Our customer in Chile, We provided different length of drill rod as per their requirement.

Our customer in South Africa, new design of thread drill bit have been sent according to their application.

.

.

.

Except regular products, we have the ability to design custom products to meet our customers' requirement. For different application, the solution is also different. So please send us your requirement and application, then we'll provide your best solution.

Quality is alway the most important things. Our price may not the cheapest, but we'll try to provide satisfied service and quality for you.

Devotion and Focus Makes Us Professional. Looking forward to working with you together.
