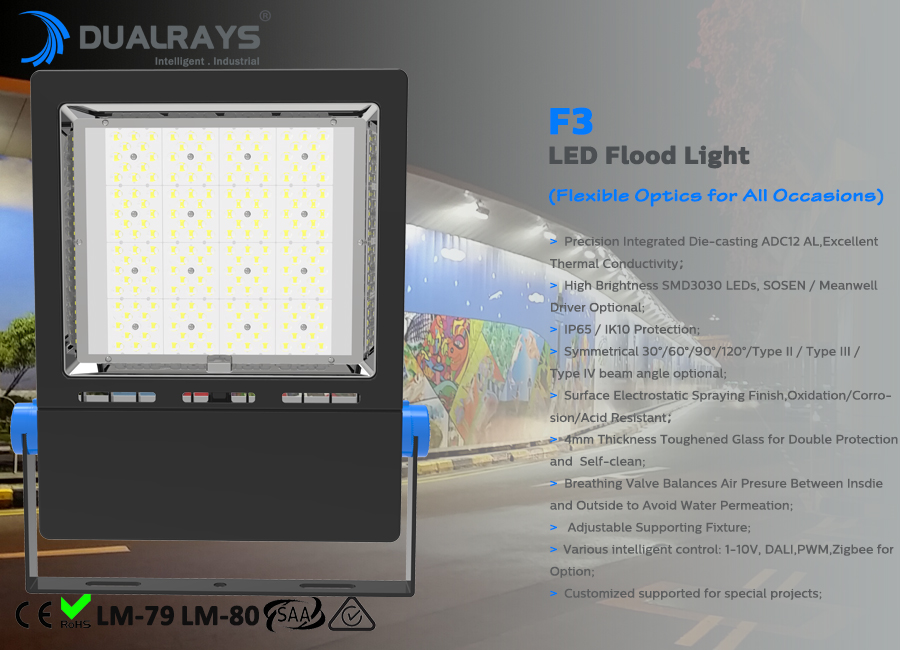

150W LED Floodlight 150LPW Efficiency for Industrial and Sport Filed Application

150W 2020 Hot Sale LED Floodlight 150LPW Efficiency for Industrial and Public Application

> Microwave Motion Sensor;

> Airports & Harbors

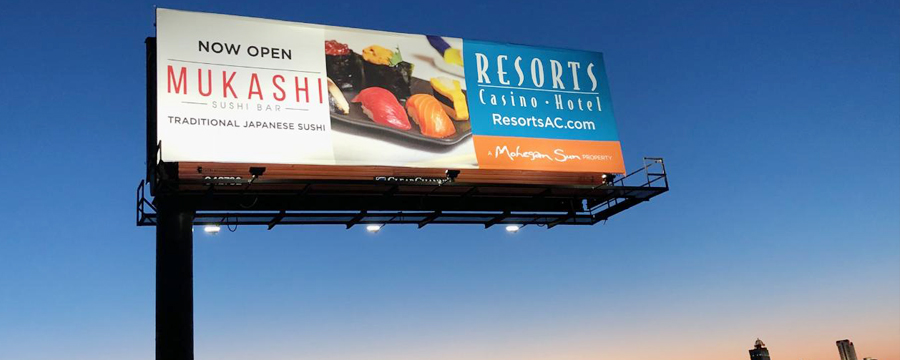

> Billboard illumination

> Large recreational sports facilities

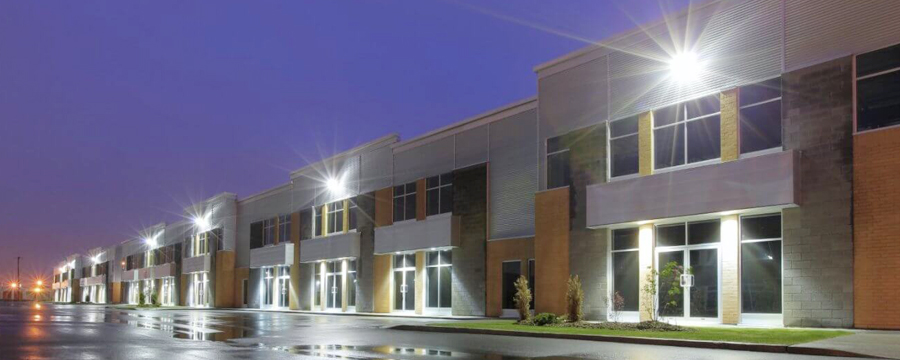

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

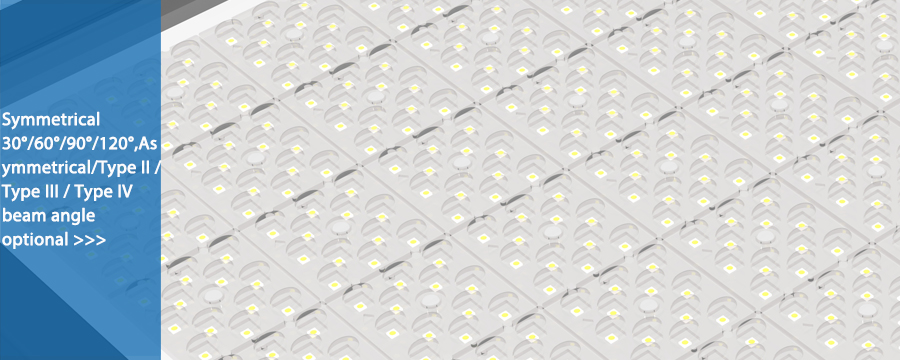

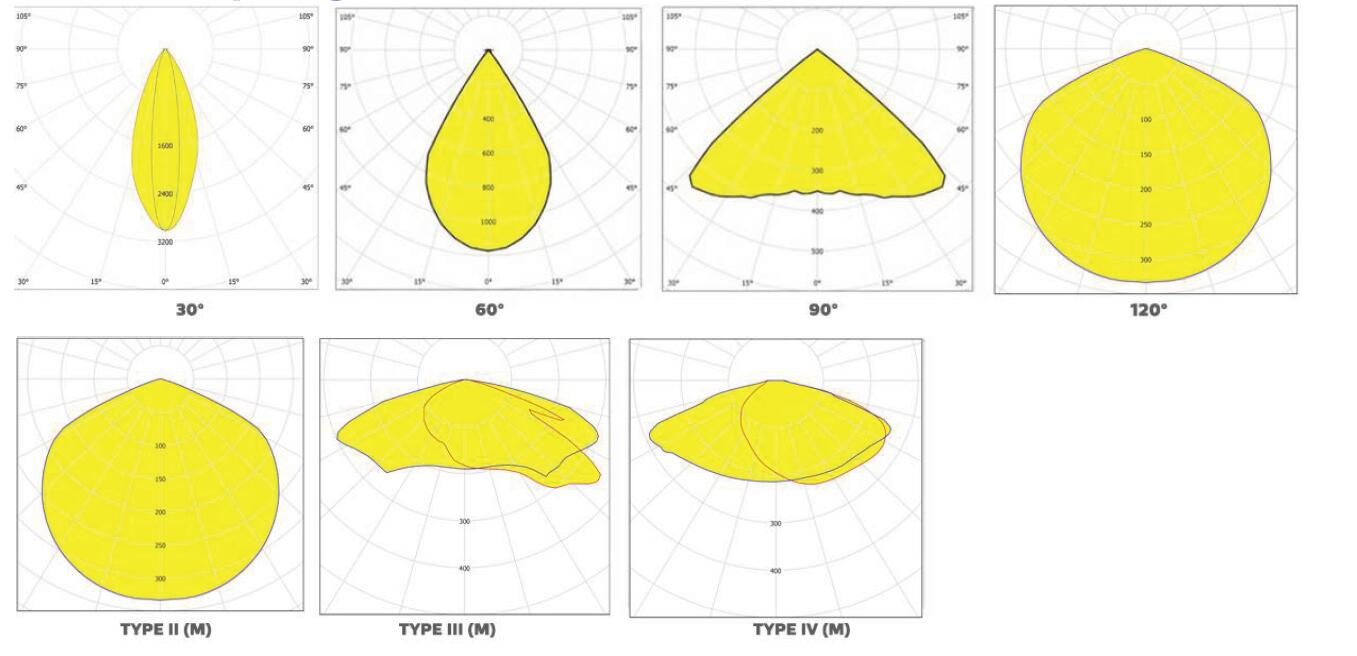

Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional

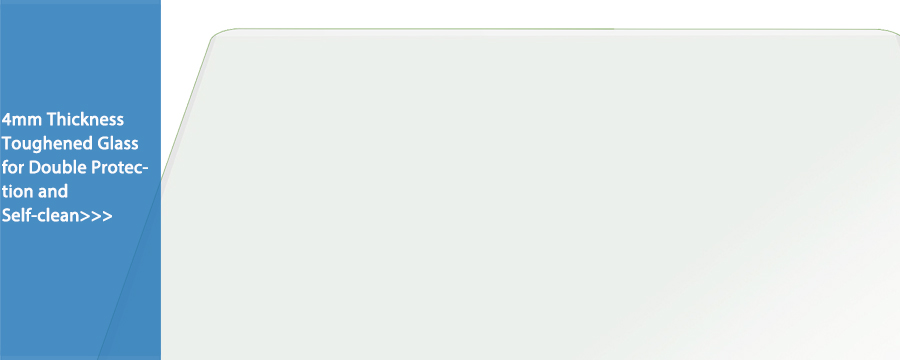

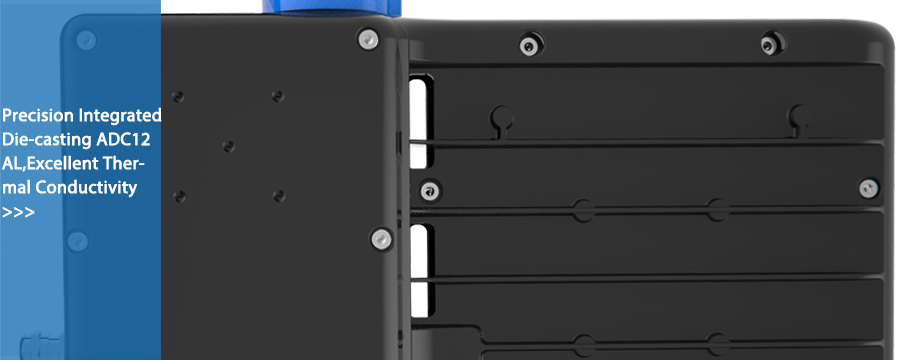

Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

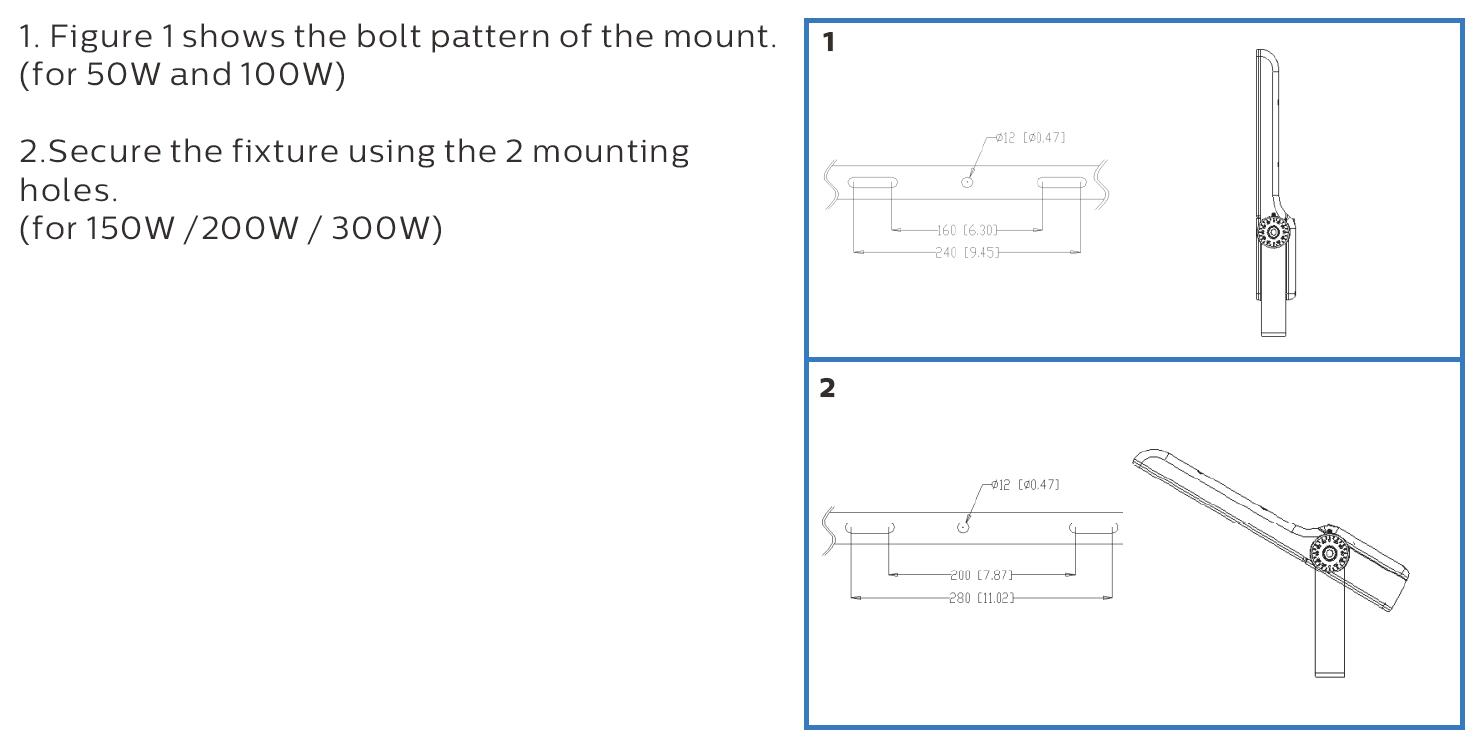

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN

    As a specialist in modern, efficient ,advanced LED lighting for industrial and sport applications,DUALRAYS LIGHTING Co.,LTD. is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent, healthy and efficient industrial and sport LED luminaires.

    Our main products includes LED Triproof Light, LED High Bay, LED Flood Light, LED Sport Light,LED Street Light,Solar LED Street Light etc.

    We have strong R&D team which work closely to Marketing and Sales Department,and strict quality control system and facilities to ensure the quality, and we have built strategic partnership with the international top brands,such as CREE, LUMILEDS,NICHIA,MEANWELL, ect, we have set up our own engineering laboratory for safety test,such as the Photometric testing, EMI testing, EMC testing, Surge Testing, ESD testing, IES file etc.

    All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed,we focus on Western Europe and Oceania market , the LED luminaires have been completely proven to be independent innovations and intellectual property.

    We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

   In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

   DUALRAYS adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.

   DUALRAYS is practicing the enterprise management principle “Perfect or Nothing”.

   Technology Light Up Civilization!
