| Categories | 3 Way Solenoid Valve |
|---|---|
| Brand Name: | Naesel |
| Model Number: | NLTG31/32 |
| Certification: | CE CQC TUV |
| Place of Origin: | China |
| MOQ: | 10 |
| Price: | Negotiation |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T, Paypal |
| Supply Ability: | 10000PCS Per Month |
| Delivery Time: | 3-7 days |
| Packaging Details: | carton with solid inner box as below photo |
| Temp. range: | -80℃~200℃（-112℉~392℉） |
| Port: | 1/8”, 1/4”,3/8 |
| Thread: | NPT, G, BSPP Thread |
| Orifice: | 1.0, 1.6, 2.0, 2.5, 3.0,3.5,4.0, 5.0, 6.0(mm) |
| Valve Material: | brass, stainless steel 304/316 |
| Voltage: | DC:12VDC, 24VDC, 36VDC AC:24VAC, 120VAC, 240VAC/60HZ, 110VAC,220VAC/50HZ |
| Seal Material: | FKM EPDM NBR |
| Fluid: | Air, water, steam, oil, etc. |
| Pressure: | 0.0MPA~4.0MPA (0.0PSI~580PSI) |
| Charactoristics: | compact design |
| Motion Type: | Direct Acting |
| On/off Type: | Normally Closed |
| Seal: | Corrosive Seal resist -112℉ to 392℉ |
| Application: | High Pressure Compressor Inlet or General Industrial |

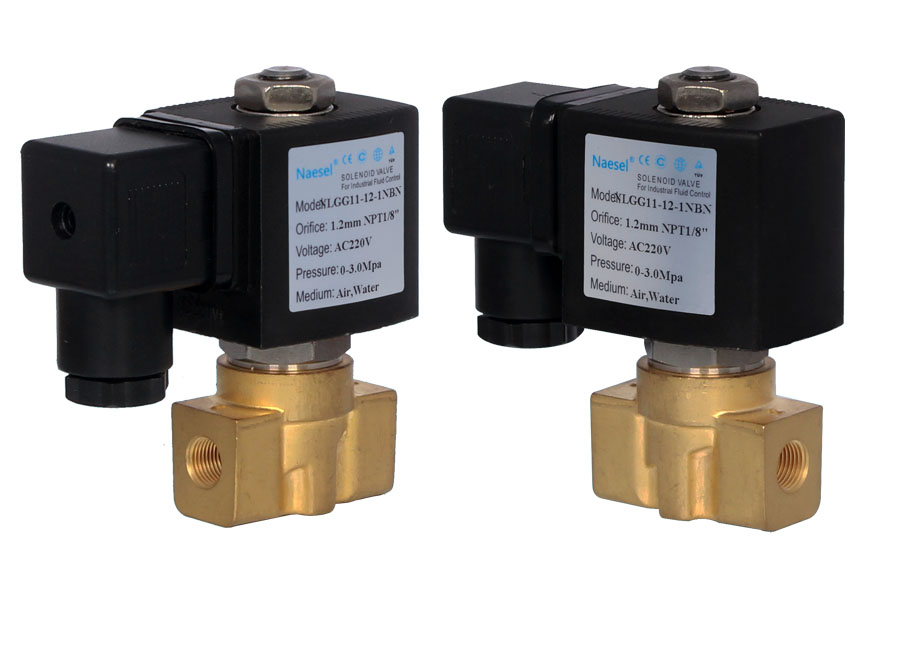

High Pressure 3 Way Solenoid Valve Air Injector Normal Close Unloaded Compressor Solenoid Valve
High Pressure 3 Way Solenoid Valve Air Injector Normal Close Unloaded Compressor Solenoid Valve
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLTG11 10-1.0 40-4.0 1-1/8" G- G B-Brass N-NBR SA81B 1-AC220V 2-DC24V
25-2.5 45-4.5 2-1/4" N- NPT S-SS316/304 E-EPDM 3-AC110V 4-DC12V
30-3.0 50-5.0 V-FRM/Viton 5-AC24V 6-DC36V
35-3.5 60-6.0
NLTG11 High Pressure 3 Way Solenoid Valve Air Injector Normal Close Unloaded Compressor Solenoid Valve
Example : NLTG11 10 1 GBN S91B1: NLTG11 Series, normal closed, 1.0mm orifice, G1/8", brass body, special seals, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: Special seal:-80℃~200℃(-112℉~392℉)
Orifice: 1.0, 1.6, 2.0, 2.5, 3.0,3.5,4.0,
5.0, 6.0, 8.0, 10.0(mm)
Pressure: NLTG31:0.0MPA~4.0MPA (0.0PSI~460PSI) Port size: 1/8”, 1/4”, 3/8”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, 36V, Coils: SA81B, 22VA(AC),13W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE 3. Special seal for low or high temp.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
High Pressure 3 Way Solenoid Valve Air Injector Normal Close Unloaded Compressor Solenoid Valve
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil | |
| AC(22VA) | DC(13W) | ||||||||
| NLTG11161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 4.0Mpa | 3.5Mpa | Brass SS304 SS316 | Special Material | SA81B |
| NLTG11251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B | ||
| NLTG11301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B | ||
| NLTG11252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B | ||
| NLTG11302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B | ||
| NLTG11352XXX | 1/4" | 3.5 | 0.34 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA81B | ||
| NLTG11402XXX | 1/4" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B | ||
| NLTG11452XXX | 1/4" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B | ||
| NLTG11403XXX | 3/8" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B | ||
| NLTG11453XXX | 3/8" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B | ||
| NLTG11503XXX | 3/8" | 5.0 | 0.71 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B | ||
| NLTG11603XXX | 3/8" | 6.0 | 0.8 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B | ||
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
