650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points

650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points

650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points
650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points
Categories Troughed Belt Conveyor
Brand Name: JINRUI
Model Number: DY5051
Certification: ISO/CE
Place of Origin: CHINA
MOQ: 1SET
Price: negotiate
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Delivery Time: 10-15 working days
Packaging Details: seaworthy packing
Belt Width: 650mm
Usuage: Fertilizer,sand,mining,stone, bags
Product name: Min Mining Protable Troughed Blet Conveyor 650mm Width Mobile Conveyor
Material: Carbon steel
Material feature: Heat Resistant
Structure: Troughed belt conveyor
Contact Now
Company Info.
Xinxiang jinrui machinery factory
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

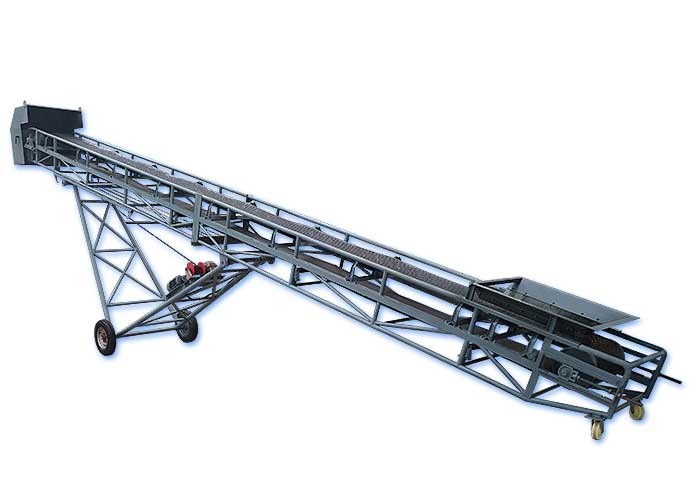

650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points

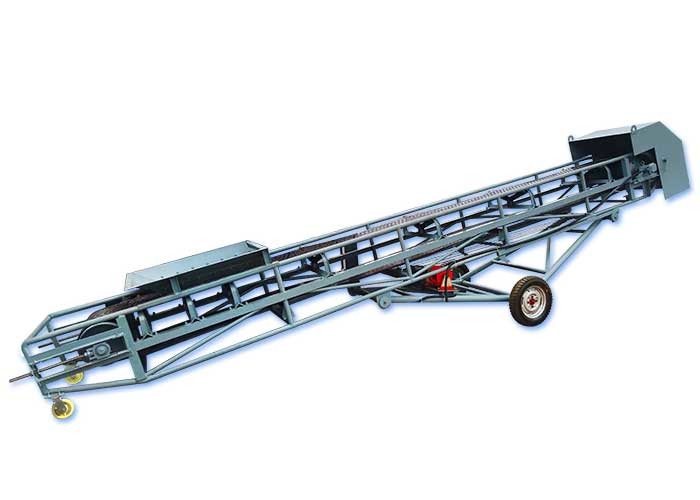

650mm Troughed Belt Conveyor Cost Effective Practical Multiple Drop Points

1. Product characteristics

The movable troughed belt conveyor has three idler rollers. The working principle of the movable belt conveyor is the same as that of the ordinary belt conveyor, which uses the belt as the continuous transport equipment of the traction load-bearing machine. compared with the ordinary belt conveyor, it adds mobile devices and so on. because of the more mobile devices, the mobile belt conveyor increases the superior mobility, and can be driven or towed to a suitable place to load and unload goods according to the on-site conditions with forklifts and other power locomotives


2. Main function and scope of application
Movable Belt Conveyor is suitable for transporting bulk materials or box bags in coal, metallurgy, mining, chemical industry, building materials, docks, warehouses, construction sites, etc. it is especially suitable for use in chemical fertilizer plants, cement plants and other environments requiring manual loading, saving a lot of personnel.

3. More attention:
3.1. During the installation, pay attention to the assembly dimensions of all parts of the fuselage and keep the straightness of the whole machine.
3.2. Tighten bolts when installing bolt fasteners.
3.3. The center line of the belt at both ends shall be aligned when making the belt joint to prevent the belt from running off.
3.4 When installing the protection part of the electric appliance, be careful to prevent damage.
4. Packing Details:
4.1,Outer packing is plywood case, which is up to the international standards.
4.2,Inner packing is Moisture-proof and water-proof membrane.
4.3,All of package are wrapped by 0.5mm steel belt to further strengthen.
5. Maintenance and repair
5.1 under normal conditions, the conveyor is required to start without load and avoid short-time starting.
5.2 it is necessary to check whether there is oil leakage in the reducer regularly, and whether the regular oil filling volume is in conformity with the construction in time
Correct and supplement.
5.3 if there is squeal at the driving drum, it means that the belt is slipping. Check whether the belt is tensioned.
5.4 the belt joint shall be inspected frequently, and the damaged parts shall be cut and redone in time, and the damaged parts shall be protected during redoing
6. Tech data
ModelBelt width(mm)Conveying length(mm)Belt speed(m/s)throughputHoisting heightThe road wheel structureOverall dimensions(mm)
Flat rollSlot roller
Q/ht/ht/hABH
DY50515005Flat roll 0.8
Slot roller 1.6		701.654659801669
DY50717140014575139801620
DY50101101.771130812901802
DY50151151.61635012901646
DY6551650526001302651.5549411501590
DY657171.5752311501554
DY65101101.81130814601852
DY65151151.851634014601884
