1.5uH - 4700uH Surface Mount Power Inductors Toroidal Power Inductor SMD

STR30/38/44/50 Series Surface mount toroidal power inductor for 1.5uH to 4700uH,SMD inductor,Power inductor

FEATURES:

• Current rating up to 18 A
• Toroidal core
• RoHS compliant

APPLICATIONS:

• DC-DC conversion(Paraller Mode)
• Input filter(Serial mode)
• EMI/RFI Suppression
• Electrical equipments industry
• Medical equipments industry
• Communication equipments industry
• The electric car charger industry
• Vehicle electronic equipment industry

TECHNICAL INFORMATION:

• Inductance test: 10KHz,0.1V
• Operating Temperature,-55℃ to +105℃ (Temperature rise included)
• Storage Temperature..-55℃ to +105 ℃
• Resistance to Soldering Heat 260℃,10 sec.max.

ELECTRICAL CHARACTERISTICS:

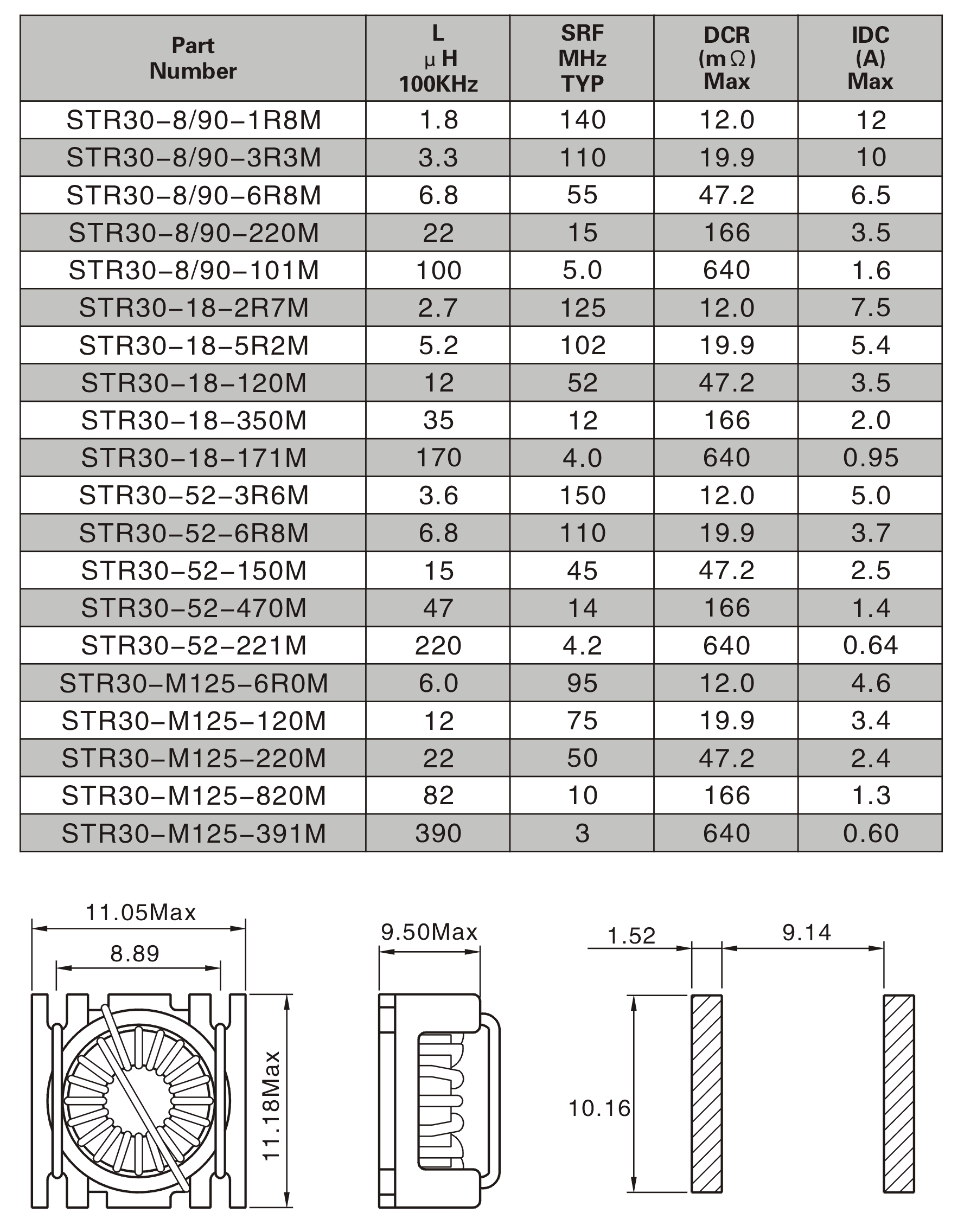

STR30 Series

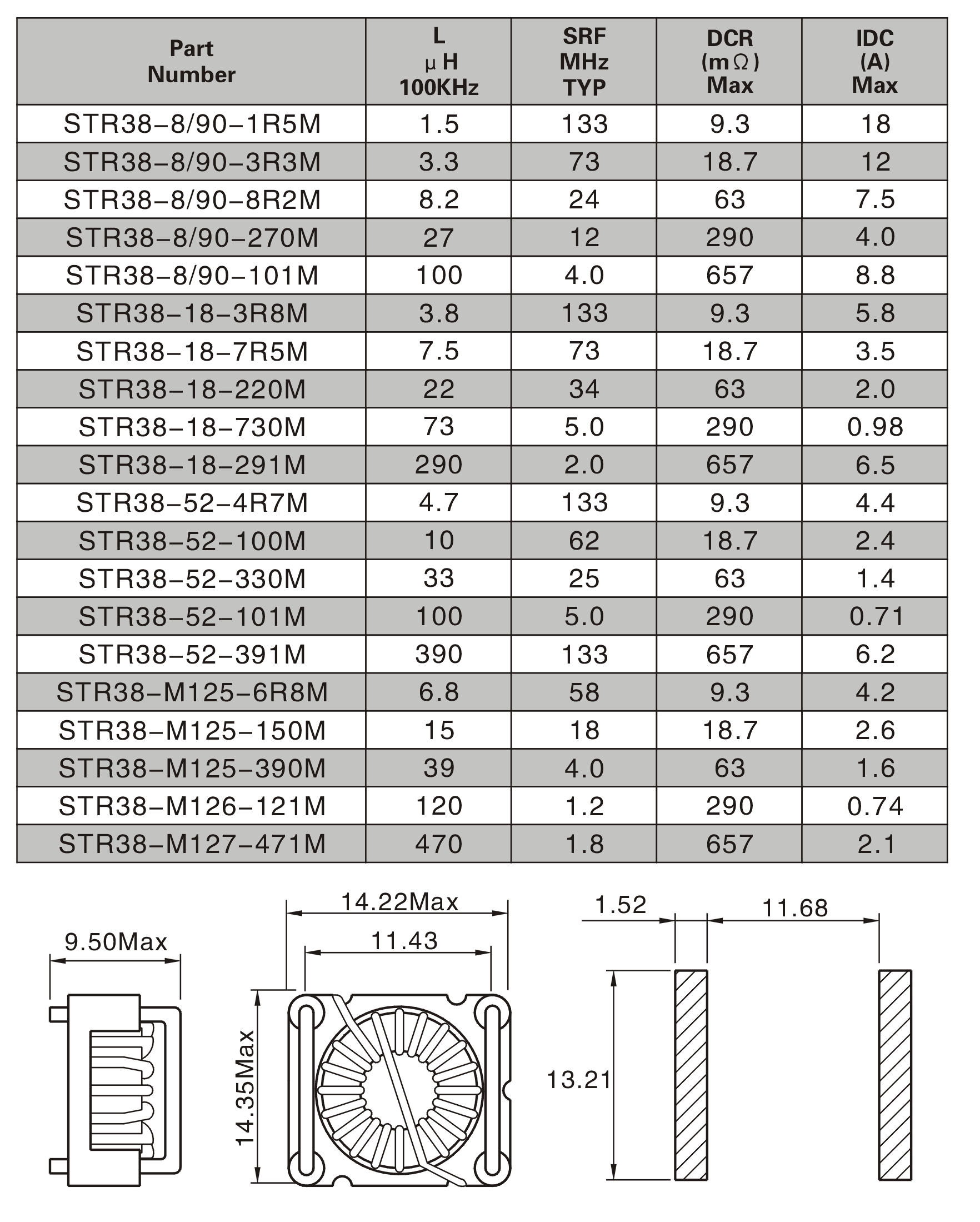

STR38 Series

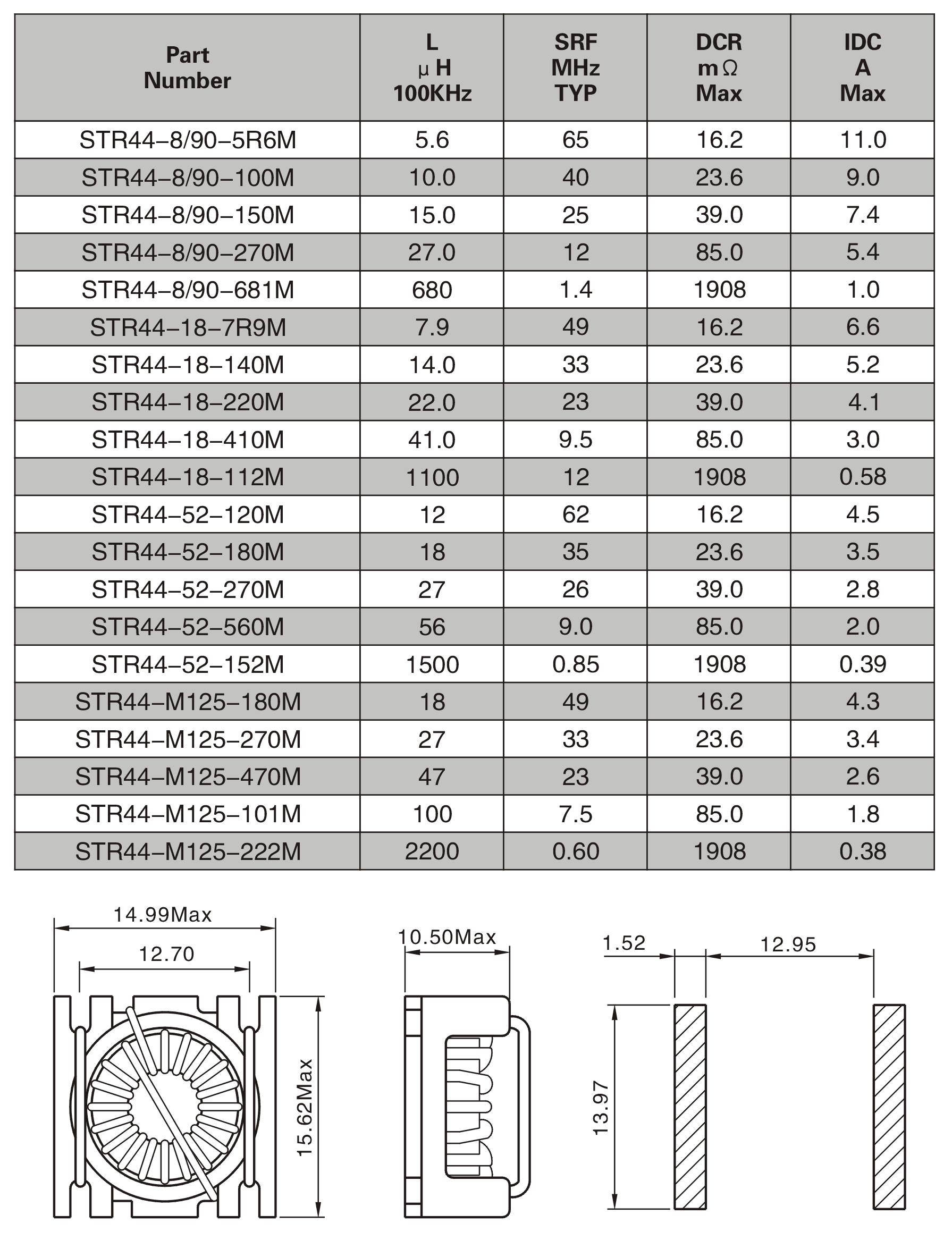

STR44 Series

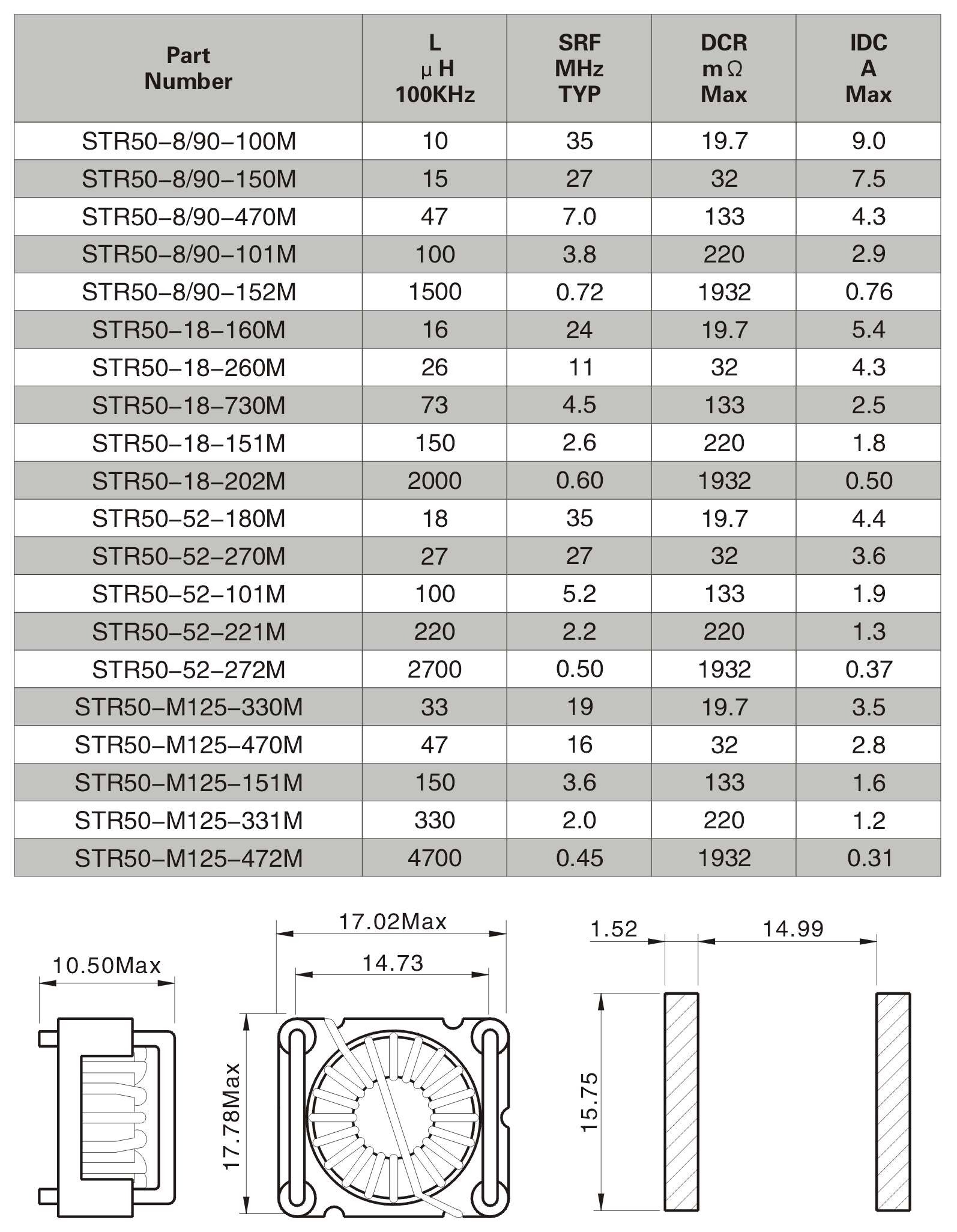

STR50 Series

Note:1. K=±10%,M=±20%,N=±30%

Note: Product specifications can be customized.
