Carton Box Can Bag Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

Categories Bottle Labeling Machine
Brand Name: Fill Pack
Model Number: T-120C
Certification: CE,ISO
Place of Origin: ZhangJiaGang,JiangSu,China
MOQ: 1 set
Price: USD$3500-5500/set for glass bottle labeling machine
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 15 sets/month
Delivery Time: 5 - 15days
Packaging Details: sea worthy packing
Applicable product: Width≥20mm,length≥20mm,20≤height≤350mm
Dimension: 2050*800*1600mm
Power: 1.2kw
Weight: 200Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Carton Box Can Bag Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

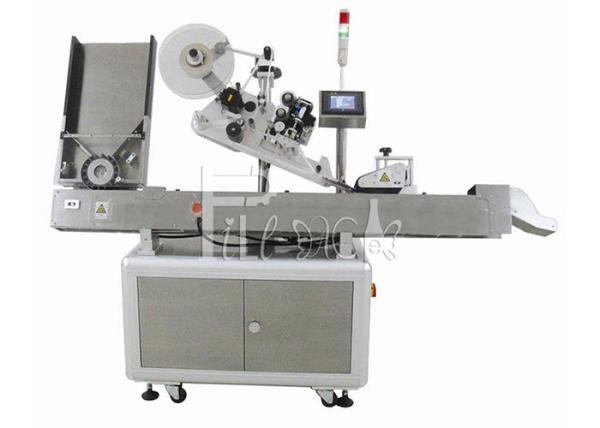

Description of ​Round bottle Single side flat adhesive labeling machine
>>>Application:
★1, For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc. ★2, Applicable products:circumferential surface or a small cone attached to the surface membrane of the small label or product.
★3, Industry: Widely used in medicine, cosmetics, electronics, metal, plastics and other industries. ★4, Application: Glue bottle labeling, oral liquid bottle labeling, labeling pen, lipstick labeling and so on.
>>>Basic using:
For standing firm circular cylindrical objects, semicircular labeling, the use of horizontal transmission, horizontal labeling way to increase stability, improve the labeling efficiency.
No
Item
Parameter
1
Suitable label length (mm)
20mm ~ 100mm
2
Applicable Label width (backing paper width / mm)
Diameter 10mm ~ 60mm
3
Applicable Products diameter (for round bottle)
±1mm (Do not contain the tolerance of product and label itself)
4
Applicable standard roll diameter (mm)
76~280mm
5
Labeling accuracy (mm)
± 0.5mm (excluding packaging and labeling errors)
6
The standard speed (m / min)
Stepping: 5 ~ 19m/min
7
Labeling speed (pcs / min)
Step:10 ~ 100pcs/min
8
Conveyor speed (pcs / min)
150pcs/min
9
Weight (kg)
200kg
If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
>>>Working Process:
★ Core works: the product of separate round bottle, put on the conveyor belt, the sensor detects the product passes the signal returned to the labeling control systems in place to control the corresponding motor control system sends label affixed to the product and to be posted cursor position, the product flows through the overlying standard device, covered with a standard drive product rotation, the label is roll coating, a label attached to the action is completed.
★ Procedure: put the product (put in the blanking box) -> separated from the product and spread out into the middle roller conveyor-> Product delivery -> Product Testing -> Labeling -> cover marked -> collect the labeling products.
