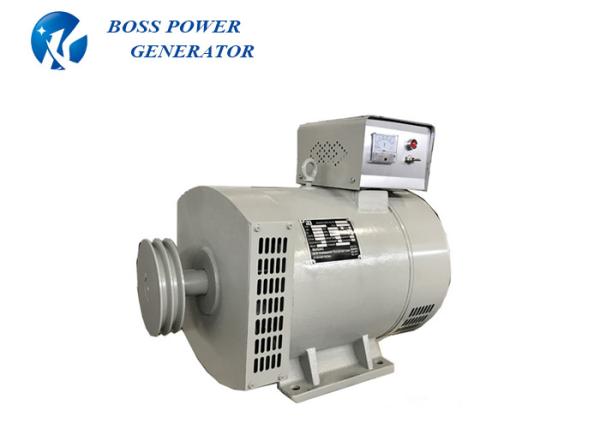

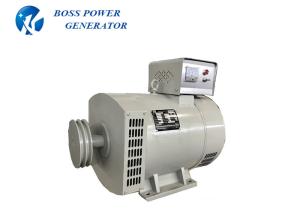

3-60kva Brush Alternator Electric Power Source Durable For Emergent Case

50Hz 60Hz 100% Copper Wire 3-64kva STC Series Brush Alternator with Three Phases

More specific parameters to choose.

(1) ST series single phase ac electric generators are mainly designed to service as power

generating unit of small capacity,which supply electricity for lighting purpose in ships,for

house-hold electric devices used in towns or villages.

(2) STC generators are to be used in town, the countryside, work sites, mountains and

pasture lands as a electric power source for lighting purpose. It can also be used as a

reserved power source for emergent case.

(3) The construction of the ac electric generators is of disproof,salient pole rotating field

self excitation and constant voltage type.The alternator interior is used with high quality

electric magnetic and electrical material.Stator insulation is class F.

(4) The rated line voltage is 400V; Phase voltage is 230V; Frequency is 50Hz; Power

factor is 0.8(lag).We can provide the generator with 60Hz and the other voltage according

to request.

(5) When the revolution slip of prime mover is 3% and the load varies in the range of 0-100%,

the power facter is 1.0-0.8, the constant voltage keeps excellent. After a sudden change

(increase or decrease) of load,the generators will soon return to their normal working state.

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.

Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design,

then the delivery time is longer.

Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP

for Nigeria,CIQ for Egypt, SASO for Saudi Arabia, etc

Q:What is your MOQ?
A: Above 1pc

Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.

Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.

Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited

Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the

guarantee period,our company will provide the free easy damaged spare part for problems caused by our

quality of production or raw material except the damageable spare parts of diesel engine caused by

customer's incorrect man made operation.After expiration,our company provides cost parts maintenance

for gen-set.

Boss Electrical Machinery Co.,Ltd focuses on Generator and generating set manufacturing, marketing and services.The company is located in TIELING ECONOMIC DEVELOPING ZONE,Fuzhou City,China.

BOSS POWERS can meet all kinds of emergency and common power solutions.Products include Stamford Brushless Alternator, ST/STC Brush Generator ,diesel generator sets and so on. Generator sets include open type, silent type, container, trailer type and so on, power covering 3kW-1000kW.

Our products passed a comprehensive testing , which are in full compliance with industry standards at national and international,got ISO9001, CIQ,CE certification, etc.

BOSS Products with excellent reliability,safety and durability can meet many condition use. They are exported to Southeast Asia, Middle East, Europe and other areas. We provide the systematic technical support for each customer's different needs to seek the best solution.

Our purposes:Your satisfaction is our mission!
