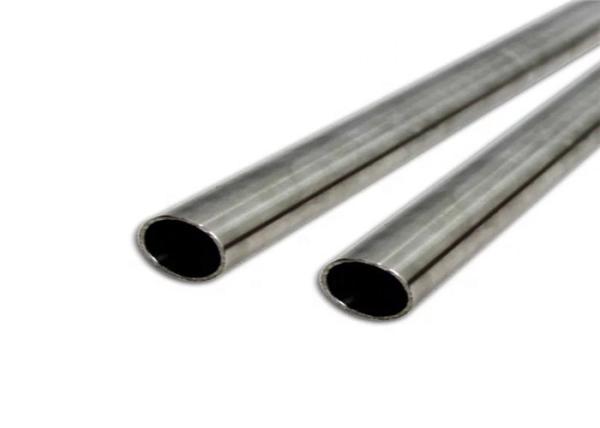

AISI Od 50mm Thickness 3mm Polished Stainless Pipe

Seamless Super Duplex Stainless Steel Pipe Corrosion Resistance OD 50MM Thickness 3mm

Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.

APPLICATIONS:

• Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
• Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
• Marine and other high chloride environments
• Effluent scrubbing systems
• Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
• Cargo tanks for ships and trucks
• Food processing equipment
• Biofuels plants

Mechanical and Physical Properties

2507 combines high tensile and impact strength with a low coefficient of thermal expansion and high thermal conductivity. These properties are suitable for many structural and mechanical components. The low, ambient, and elevated temperature mechanical properties of 2507 sheet and plate are shown below. All of the test data shown are for samples in the annealed and quenched condition.

2507 is not recommended for applications which require long exposures to temperatures in excess of 570°F because of the increased risk of a reduction in toughness. The data listed here are typical for wrought products and should not be regarded as a maximum or minimum value unless specifically stated.

Seamless stainless steel pipe specification

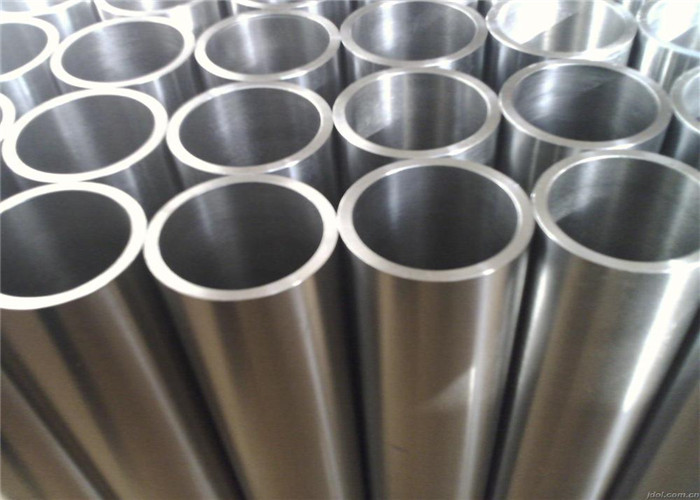

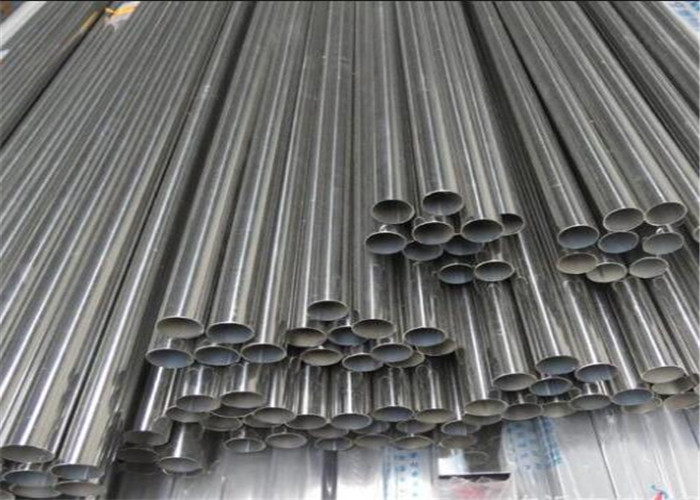

Product show

Packaging & Delivery

If you have any question, please feel free to contact us any time.
