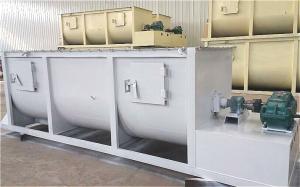

Inclined Angle Feeding Design Lime Hydrator For Better Hydrating Efficiency

Inclined Angle Feeding Design Lime Hydrator for Better Hydrating Efficiency

Improvement of Inclined Angle Feeding Design Lime Hydrator

The lime hydrator has been reasonably improved and optimized. 1) Using the temperature of the hydrating heat of CaO, the temperature of the water is raised to about 80 °C by a hot water conversion device within 10 minutes for digestion, which reduces the slaking time and slaking cost. 2) The second and third stage slaking adopts inclined feeding, which reduces the powder hydration and is completed in a combined body, which greatly improves the slaking effect, and increases the volume and quality, and improves the economic efficiency of the enterprise. 3) Raise the feed port of the digester to realize the slopped transmission drive of the lime hydrator.

Working Principle of Lime Hydrating:

Calcium hydroxide is made of quicklime (mainly CaO) as the raw material, after sieving and crushing, it is digested according to a certain quicklime-water ratio with calcium hydroxide as the main component. The production principle is: CaO + H2O = Ca (OH) 2

The more complete the digestion of calcium oxide and water, the higher the conversion rate of calcium hydroxide.

This is because when calcium oxide meets water, it first absorbs water to form an intermediate product hydrated calcium (CaO · 2H2O), and then undergoes a conversion reaction [CaO·2H2O→Ca (OH) 2] to produce calcium hydroxide. The hydration reaction between water molecules and calcium oxide crystals will produce a certain volume expansion and volume increase. This is because after the quicklime is mixed with water, the transfer rate of the reaction product is less than the hydration reaction rate. During the conversion of calcium oxide into calcium hydroxide powder, the surface volume increases.

Calcium hydroxide is made of quicklime (mainly CaO) as the raw material, after sieving and crushing, it is digested according to a certain quicklime-water ratio with calcium hydroxide as the main component. The production principle is: CaO + H2O = Ca (OH) 2

The more complete the digestion of calcium oxide and water, the higher the conversion rate of calcium hydroxide. This is because when calcium oxide meets water, it first absorbs water to form an intermediate product hydrated calcium (CaO · 2H2O), and then undergoes a conversion reaction [CaO·2H2O→Ca (OH) 2] to produce calcium hydroxide. The hydration reaction between water molecules and calcium oxide crystals will produce a certain volume expansion and volume increase. This is because after the quicklime is mixed with water, the transfer rate of the reaction product is less than the hydration reaction rate. During the conversion of calcium oxide into calcium hydroxide powder, the surface volume increases.

HK Lime Hydrator’s second-stage and third-stage slaking chamber use slope driving structure, which can reduce friction and lower the load of the screw and decrease the wearing of blades. This also increases the conveying ability and powder moving speed.

Features of HK Lime Hydrator

1. Higher Auto Control: Gravimetric quicklime feed, temperature-controlled water supply, and a sophisticated measuring technology

2. Reliable performance for classifying, grinding, conveying, stocking and packing.

3. High product quality: the lime hydrator adopts an accurate metering of slaking water to guarantee the slaked finished product with minor moisture, higher percentage of fines and less agglomeration.

4. The slaking process is fully completed in the lime hydrator. There is no need for secondary slaking silo.

Technical Data of HK Lime Hydrator:

     Guangxi Henkry Machinery Co., Ltd is a professional company which focus on the following machinery: vertical mill, micro powder mill, pendulum roller grinding mill, packing machine, coating machine, air compressor, calcium hydroxide production line, elevator and etc.

     As we have been in China Powder Machinery Industry for 20 years, we have accumulated enough knowledge and experience for powder-making technology and related equipments in China.

     We aim to provide highest quality powder equipment to customer with reasonable price, which can not only meet their requirements, but also owns stable performance for guaranteeing continuous production.

     What we expect is a friendly and long-term cooperation business relationship with our customer. A win-win situation and mutual trust is also what we always pursue.
