F51 / S31803 Duplex Stainless Steel Flanges AWWA Standard Steel Ring Flanges

ElongationF51 / S31803 Duplex Stainless Steel Flanges AWWA Standard Steel Ring Flanges

AWWA standard steel-ring flanges F51 / S31803 Duplex Stainless Steel Flanges

F51 (UNS S31803) 22% chromium duplex stainless steel

Product Name:F51 / S31803 Duplex Stainless Steel AWWA standard steel-ring flanges

Product material:F51 / S31803

Product type: steel-ring flanges

Product use: interconnected parts between pipe and pipe

Product specifications: Nominal Pipe Size 4 ---144

Special functions: easy welding, good toughness, corrosion resistance

Surface treatment: Precision turning

Executive standards: SA182 / ASMEB16.5 / 16.7 / GB9112-9131

Pressure rating : Class B / Class D / Class E / Class F

Type content: according to customer requirements (LOGO + standard + material + size + pressure + furnace number, etc.)

Non-standard customization: samples can be customized according to customer requirements

General attributes:

Duplex stainless steel has an α + γ dual-phase structure, so its performance characteristics are built of austenitic stainless steel and ferritic stainless steel. It is a type of stainless steel with high strength and best corrosion resistance. Generally, in the case of low C content, the Cr content is 18% to 28%, and the Ni content is 3% to 10%. Some steels also contain alloying elements such as Mo, Cu, Nb, Ti, and N.
Compared with ferrite, it has higher plasticity and toughness, no room temperature brittleness, significantly improved intergranular corrosion resistance and welding performance, while maintaining the 475 ° C brittleness and high thermal conductivity of ferritic stainless steel, and has superplasticity, etc. Features. Compared with austenitic stainless steel, the yield strength is significantly improved, and the resistance to intergranular corrosion, stress corrosion, corrosion fatigue and abrasion is significantly improved.

Material: S31803 / S32205, S32750, S32760, S31500, S31500, 32001, S32003, S32304

Performance characteristics:
1. Excellent resistance to general corrosion and local corrosion, especially stress corrosion resistance, pitting corrosion resistance, crevice corrosion resistance, corrosion fatigue resistance and wear resistance etc.
2. Good solderability
3. Good comprehensive mechanical properties
4. Good resistance to intergranular corrosion
5. High cost performance and long service life

Delivery form:flange

SHANGHAI ABOOM METAL PRODUCT CO.,LTD

Address:ROOM 412,NO.452 CHEFENG ROAD,

SongjiangDistrict , Shanghai ,201601,P.R.China　

Shanghai Aboom Metal prodcut co.,ltd mainly produces and sells super duplex stainless steel, special super austenitic stainless steel and high temperature alloys, nickel-based alloys, corrosion-resistant alloys, precision alloys, and special alloy steels based on cobalt.

Products include steel pipes, steel plates, round steel, forgings, flanges, fittings, fasteners, precision steel strips, etc. All materials are strictly in accordance with international standards such as ASTM / ASME (American Standard), GB (National Standard), JIS (Japanese Standard) Production and testing.

ABOOM has a large stock of nickel-based alloy, high-temperature alloy round Bars, tube billets, and high-temperature alloy, nickel-based alloy steel plate stocks.

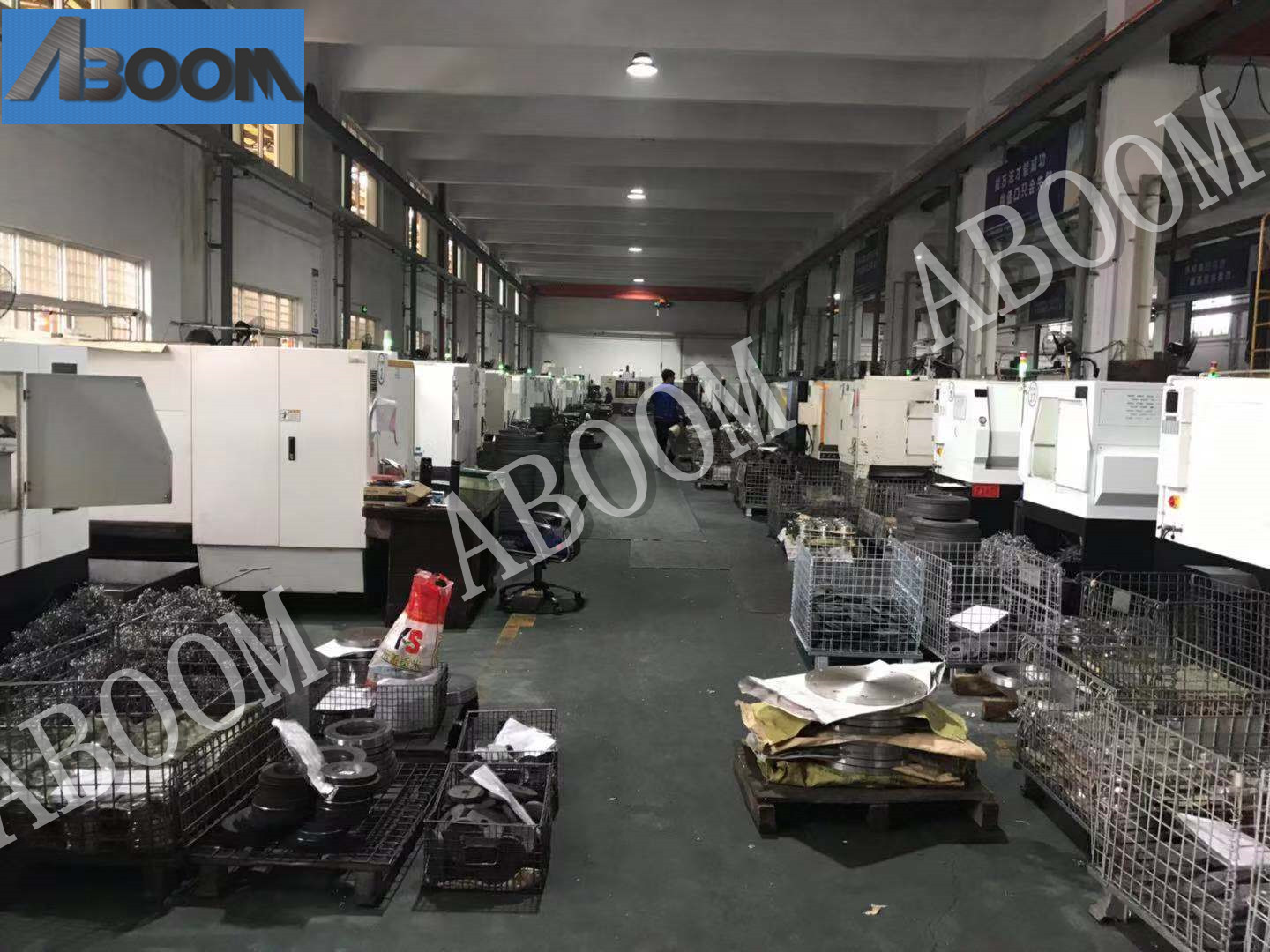

The company has vacuum induction furnace, semi-vacuum intermediate frequency induction furnace, medium and high temperature heat treatment electric furnace, and electroslag remelting furnace. 6 ton, 4 ton, 1 ton free forging hammer, steel pipe hot rolling cold rolling unit, annealing furnace, round bar hot rolling cold drawing unit and other production equipment. Testing facilities include direct reading spectrometer in front of the furnace, spectrophotometer, chemical analysis laboratory, mechanical performance laboratory (with universal testing machine, hardness testing machine), metallographic laboratory, ultrasonic non-destructive testing and other types of testing equipment, effective Guaranteed product quality.
