| Categories | Round Rocker Switch |
|---|---|
| Brand Name: | CHIMAI |
| Model Number: | ST-1 |
| Certification: | CE, CQC, SGS |
| Place of Origin: | CHINA |
| Delivery Time: | 5-8 work days |
| Packaging Details: | inner box and plastic bag |
| Type: | Circuit Breaker |
| Button Color: | Black/Red |
| Material: | Plastic/Bakelite |
| Electrical Life: | 100,000 cycles |
| Voltage: | 125/250VAC/32VDC |
| Company Info. |
| YUEQING CHIMAI ELECTRONIC CO.LTD |
| View Contact Details |
| Product List |

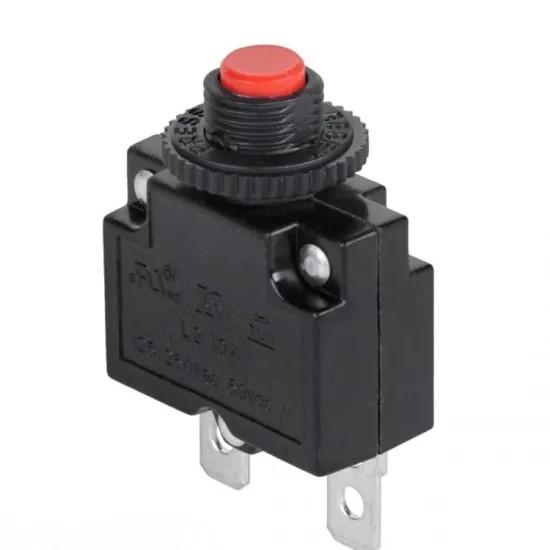

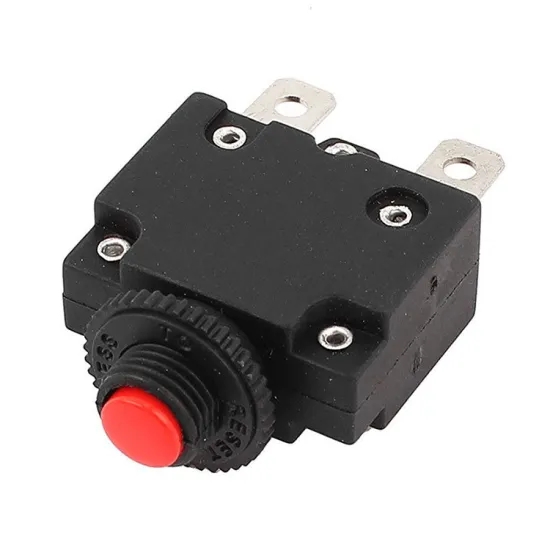

20A 32VDC Black Overload Protector Bakelite Miniature Circuit
Breaker
The circuit breaker oill trip if there is over-current the reset
button current iump upwad and cut off the ciucuit after fault is
elimin ated push the reset button aod monnect the circuit again.
Advantage
--------------------------
| NO.1 | Good quality! |
| NO.2 | 10 years manature! |
| NO.3 | Many types of circuit breaker switch we can supply |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | The best indicator light at the best price! |
The Basic Technical Parameters
---------------------------------------------------------------------------------
| Working Voltage | Min. 12V, Max. 125V |
| Double Usage | DC & AC |
| Current | 3A, 5A, 7A, 8A, 10A, 13A, 15A, 20A, 25A |
| Insulated Resistance | >=100MΩ |
| Dielectric Strength | >=1500VAC/1 min |
| Electrical Life | >=10000 cycles |
| Experimental Current | Starting Condition | Experimental Time | Expect Result |
| 1In | Cold Start | 1h | Not Trip |
| 1.5In | Followed The Experiment | t<=1h | Trip |
| 2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
| 6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
| 10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |
