| Categories | Capacitance Level Transmitter |
|---|---|
| Brand Name: | MELAN |
| Model Number: | ML3000C |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | In Carton Packing |
| Product Name: | Capacitance Level Transmitter |
| Application: | Liquid, gas, steam |
| Accuracy: | 0.5% or 0.075% |
| Static Pressure: | 4, 10, 25, 32MPa |
| Process Connection: | M20*1.5 Male Thread |

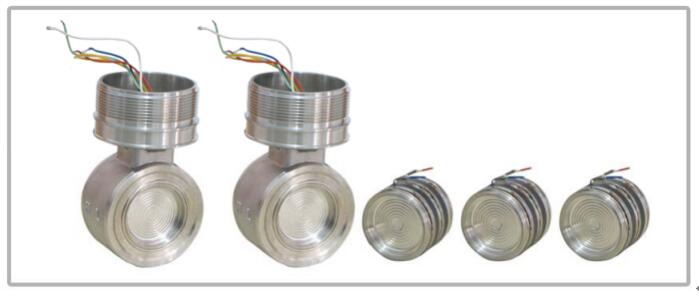

| Sensor: | Capacitive sensor |
Intelligent Capacitance Level Transmitter with LED Display Header
1. Overview
This transmitter has all characteristics of common ones. Meanwhile,
its installation method is the same as the diffusion silicon
transmitter, showing superb performance in pressure and liquid
level environments with narrow space that need high accuracy and
stability, and in pressure compensation that utilizes follow
quality to finish trade settlement.
2. Configuration
| Type | Specification Code | Illustration | |||
| ML3¨¨¨C | --------------------------------- | New Type Liquid Level, Pressure Transmitter | |||
| Accuracy | 3-------------------------------- | ±0.5% | |||
| 0-------------------------------- | ±0.075% | ||||
| Output | 5-------------------------------- | 4-20mA, HART | |||
| Sensor | 1-------------------------------- | Capacitive Sensor | |||
| C-------------------------------- | |||||
| Measuring Range | 3-------------------------------- | 0-1.3~7.5KPa(0-127~762mmH2O) | |||
| 4-------------------------------- | 0-6.2~37.4KPa(0-635~3810mmH2O) | ||||
| 5-------------------------------- | 0-31.1~186.8KPa(0-3175~19050mmH2O) | ||||
| 6-------------------------------- | 0-117~690KPa(0-1.2~7Kgf/cm2) | ||||
| 7-------------------------------- | 0-0.345~2.068MPa(0-3.5~21Kgf/cm2) | ||||
| 8-------------------------------- | 0-1.170~6.890MPa(0-12~70Kgf/cm3) | ||||
| Part Material to Connect Medium | Process Connection | Vent/Drain Valve | Isolation Diaphragm | Filling Liquid | |
| 2-------------------------------- | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel | Silicone Oil | |
| 3-------------------------------- | Hastalloy C | ||||
| 4-------------------------------- | Monel | ||||
| 5-------------------------------- | Tantalum | ||||
| 3-------------------------------- | Hastalloy C | Hastalloy C | Hastalloy C | ||
| 5-------------------------------- | Tantalum | ||||
| 4-------------------------------- | Monel | Monel | Monel | ||
| Display Header | D-------------------------------- | Multiple Parameters and Methods Digital LED Display Header | |||
| N-------------------------------- | No Display Header | ||||
| Pipe Connection | 4-------------------------------- | 1/2 NPT Female Thread | |||
| 7-------------------------------- | 1/2 NPT Male Thread | ||||
| 8-------------------------------- | G1/2 Male Thread | ||||
| 9-------------------------------- | M20*1.5 Male Thread | ||||
| Electrical Interface | 5-------------------------------- | M20*1.5 Waterproof Concentrator | |||
| Additional Type | -NF1---------------------------- | Ex-proof Security Certification: Exd II CT6 | |||
| -NS1---------------------------- | Intrinsic Safety Certification: Exi II CT4 | ||||
| -Q------------------------------- | Other conventions are available | ||||
| Remarks: | |||||
| e.g.:ML3051C-42D95-NF1 | |||||
| *: Standard | |||||

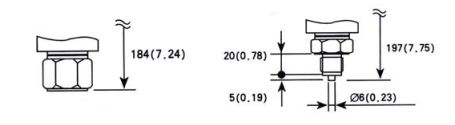

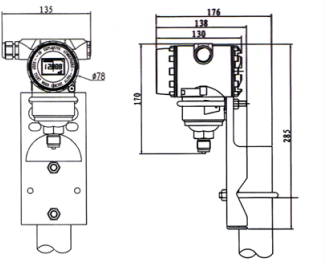

3. Dimension

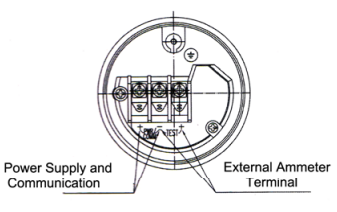

4. Electrical Connection
|
