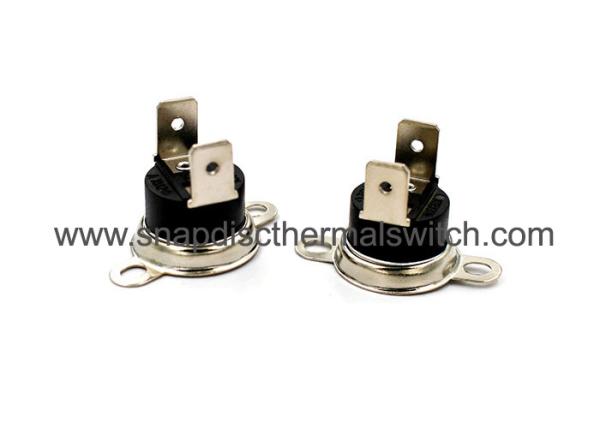

Bimetal KSD301 Snap Disc Thermal Switch For Circuit Breaker , Temperature Switch

Bimetal KSD301 Snap Disc Thermal Switch for Circuit Breaker, Temperature Switch

Quick Detail:

Applications:

● Kitchen Appliances: Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer, Vacuum Cleaner, etc.

● Household Appliances: Electric Water Boiler, Room Heater,Waffle Baker etc.

● Other Industry: Medical Equipement, Air Compressor, Batter Packs, Water Tank, Frostproof closet, etc, Fuel Filter, etc.

Competitive Advantages:

1. Small size and expedient installation

2. High temeprature resistance

3. High reliability, Durable

4. Long life cycles

5. ROHS compliant

6. Wide application

Specifications:

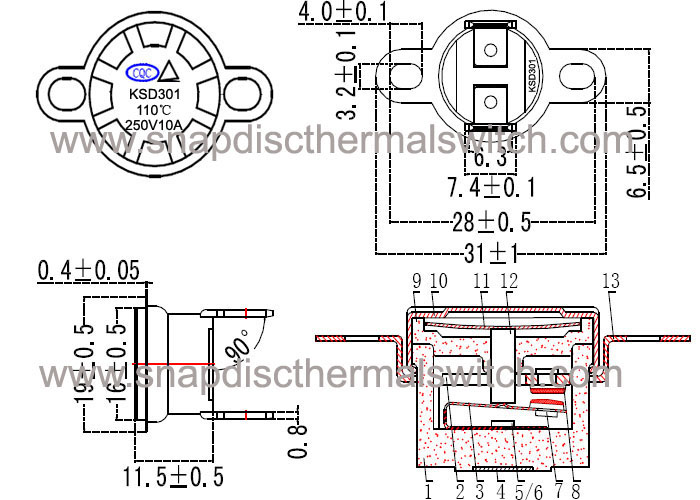

1. Dimensional Outline

2. BOM

3. Action Temperature Table

Installation and Direction for Use:

Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
The terminals should be bent, or else, the reliability of electric connection will be influenced.

Description:

KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.

Tag:

Snap-action Thermostat, Snap Action Temperature Switch, Snap Action Bimetal Disc Thermostat, Thermal Switch,

Bimetal Disc Thermal Switch, Automatic Thermal Switch, Temperature Controller, Temperature Switch KSD301
