Low Power Consumption Industrial Mini PC / Fanless Desktop PC 2G DDR3 Memory

Categories Industrial Mini PC
Brand Name: Shinho
Model Number: SHN3
Place of Origin: Shenzhen , China
MOQ: 1 Piece
Price: negotiable
Payment Terms: T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Delivery Time: 3-5 working days
Packaging Details: 1PC/Carton, Weight: 1KG/PC, Packing size: 19*15*15cm
Type: Industrial mini PC
CPU: Celeron J1900 , quad core , 2.0GHz, fanless
Memory: 2G DDR3
Hard disk: 32G SSD
Material: Aluminum Alloy Die casting
Net weight: 0.65kg
Temp: -20℃~60℃
Weight: 0.65KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

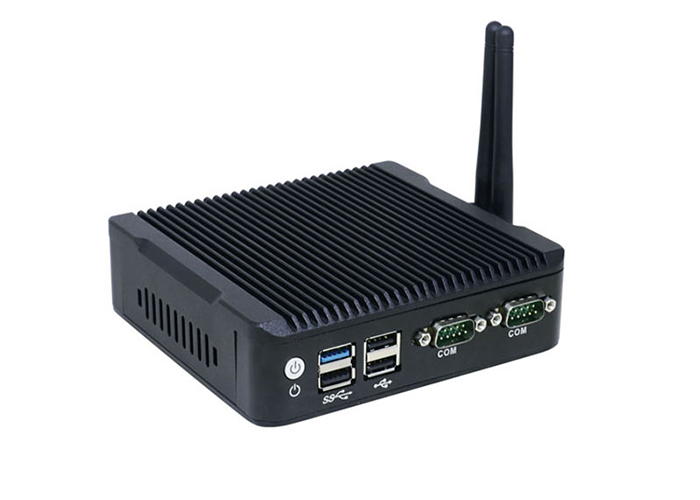

Low Power Consumption Industrial Mini PC / Fanless Desktop PC 2G DDR3 Memory

Low Power Consumption Industrial Mini PC with 2 LAN 2 COM WIFI

Features
1. Intel Celeron J1900 quad core,2.0GHZ, fanless CPU

2. 1*VGA+1*HDMI+2*LAN+2*COM+3*USB2.0+1*USB3.0

3. 2G RAM+32G SSD

4. High quality pure aluminum case

5. 1*MSATA,1*mini-PCIE,support wake on lan

6. 2*RTL8111E 1000M lan card,support wake on lan

7. DC-IN 12V power supply and AC power adapter


Application

Education

POS machine

Railway station

Building

Electronic storage

Home office

Kiosk

Industrial area


Specification


ModelSHN3
ProcessorAdopt Intel Bay trail-D quad core J1900 (22nm, 2.0GHz, 2MB second Cache)
ChipsetAdopt Intel express chipset
RAM2G (can up to 8G)
Display portIntegrated Intel HD Graphic card, Support 1*VGA
Expansion port2*Mini-PCIE, support full-size MSATA and half-size WiFi
Storage1* MINISATA, (N3B can support extra 1*SATA)
AudioIntegrated Realtek ALC662 6 sound channel
Network2* Realtek 8111E Lan, support wake on lan
I /O

2* RJ-45
1* 12V DC input
1* VGA
1* HDMI
1 *USB3.0
5 *USB2.0
1 *Power switch
1 *RS232 COM
1 *Audio

Built-in I/O

1 * FP1
1 * JSATA Port, 1*SATA
1 * MINI_PCIE for WiFi, 1 * Mini-SATA
1 * SODIMM

BIOSAMI 64M DPI Flash ROM
WDTSupport hardware reset (256 level,0~255 sec)
Power supplyDC-12V
Temp-20℃~60℃
Humidity0~95% relative humidity, non-condensing

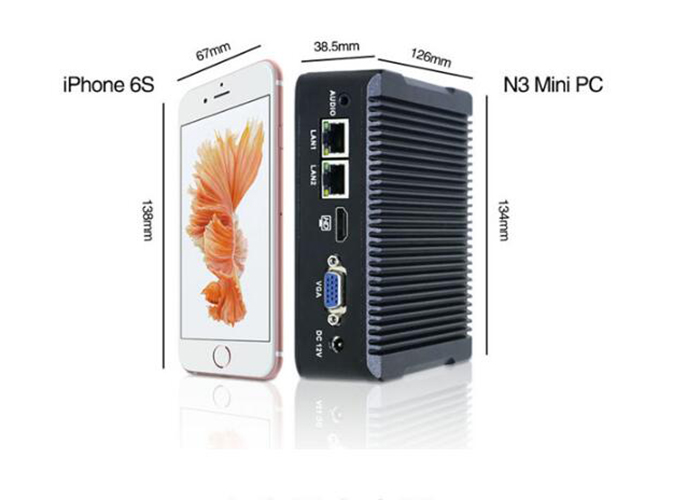

Dimension134*126*38 mm / N3A , 134*126*48mm / N3B
