100kg load 2m/S Toys Testing Equipment For Wheeled Toys

Categories Toys Testing Equipment
Brand Name: HTI
Model Number: TW-257
Certification: ISO8124
Place of Origin: ,China(Mainland)
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Delivery Time: 15 working days
Packaging Details: Plywood Package
Product Name: Free Wheel Toys Max Pull Force Tester
Model Name: TW-257
Comply with Standard: ISO 8124-1 2014 5.16.1 Determination of free-wheeling facility
Weight: 450KG
Power: 220V 50Hz
Original Place: Made in China
Test Speed: 2M/S
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100kg load 2m/S Toys Testing Equipment For Wheeled Toys

2m / s Speed Toys Testing Equipment ,Max Pull Froce Test For Wheeled Toys

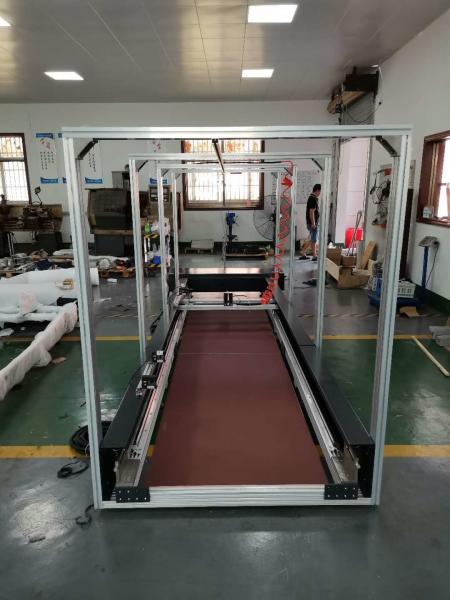

This 2 m/s Tester is mainly used for test ride-on toys at the speed of toys 2m / s when the value of the barrier imposed by force. Pull the toy at a constant speed of 2 m/s ± 0.2 m/s on a surface covered with aluminum oxide sand paper P60 and determine the maximum pull force. Toys will be under test placed on the conveyor belt, the drive wheel until the toy speed of 2m/s and remain stable; the display shows the pressure sensor to the force sensing value, according to ability to judge the value of toy safety.


High precision speed control valve, adjust the working speed of the belt precisely.

High precision force sensor could move up and down.


Standard: ISO 8124-1 2014 5.16.1 Determination of free-wheeling facility

Main technical parameters:

Maximum test load (Sensor) (kg): 100kg

Frequency range: 100~300rpm

Simulation speed: 2m/s (can be adjusting)

Work table size: L×W(cm) 100×200

Dimensions: 2150x1550x1500mm

Weight:450kg


Total weight after package: 600KG, Total Volume: 3CBM
