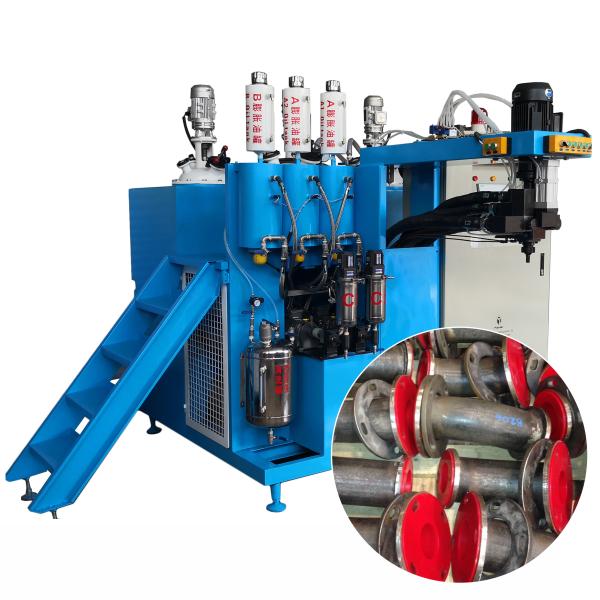

66g/s PU Casting Machine

PU Elastomer Injection Machine For Mining Polyurethane Lining Pipe Line Mine Industry
PU Elastomer Casting Machine Introduction:
PU elastomer casting machine is used to produce castable polyurethane elastomers with MOCA or BDO as chain extenders. PU elastomer casting machine is suitable for manufacturing various kinds of CPUs such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel pulleys, buffers, etc. product.
No.ItemTechnical Parameter
1Injection Pressure0.05-0.6Mpa
2Injection flow rate85-250g/s 5-15Kg/min
3Raw material viscosity0~4000MPas
4Mixing ratio range

100:6~18(adjustable)


5Injection time0.5~99.99S (correct to 0.01S)
6

Temperature control error


-150℃

±2℃

7Repeated injection precision±1%
8Mixing head

Around 6000rpm, forced dynamic mixing

9Tank volume35L/250L
10Metering pumpJR100/JR12
11Compressed air requirement

Dry, oil free P:0.6-0.8MPa

Q:600L/min(Customer-owned)

12Vacuum requirement

P:6X10-2Pa

Speed of exhaust:15L/S

13Temperature control systemHeating: 21KW
14Input powerThree-phrase five-wire,380V 50HZ
15Rated power35KW
16Fixed arm1 meter
17VolumeAbout 2000*1800*2700mm
18Color (selectable)Deep blue
19Weight2000Kg

Product Features of PU Elastomer Casting Machine:

High temperature resistant low speed high precision metering pump,accurate measurement,random error within±0.5%.


Material output adjusted by frequency converter with frequency conversion motor,high pressure and precision,simple and rapid rapid ratio control.


High performance mixing device,adjustable pressure,accurate material output synchronization and even mix;New type mechanical seal structure avoids reflux problem.


High-efficiency vacuum device with special mixing head ensures product no bubbles.


Adopting electromagnetic heating method to heat transfer oil,efficient and energy saving;Multi-point temp.control system ensures stable temperature,random error<±2°C.


Adopting PLC and touch screen man-machine interface to control pouring,automatic cleaning flush and air purge.stable
performance.high operability,which can automatically distinguish,diagnose and alarm abnormal situations as well as display abnormal factors.

Application:

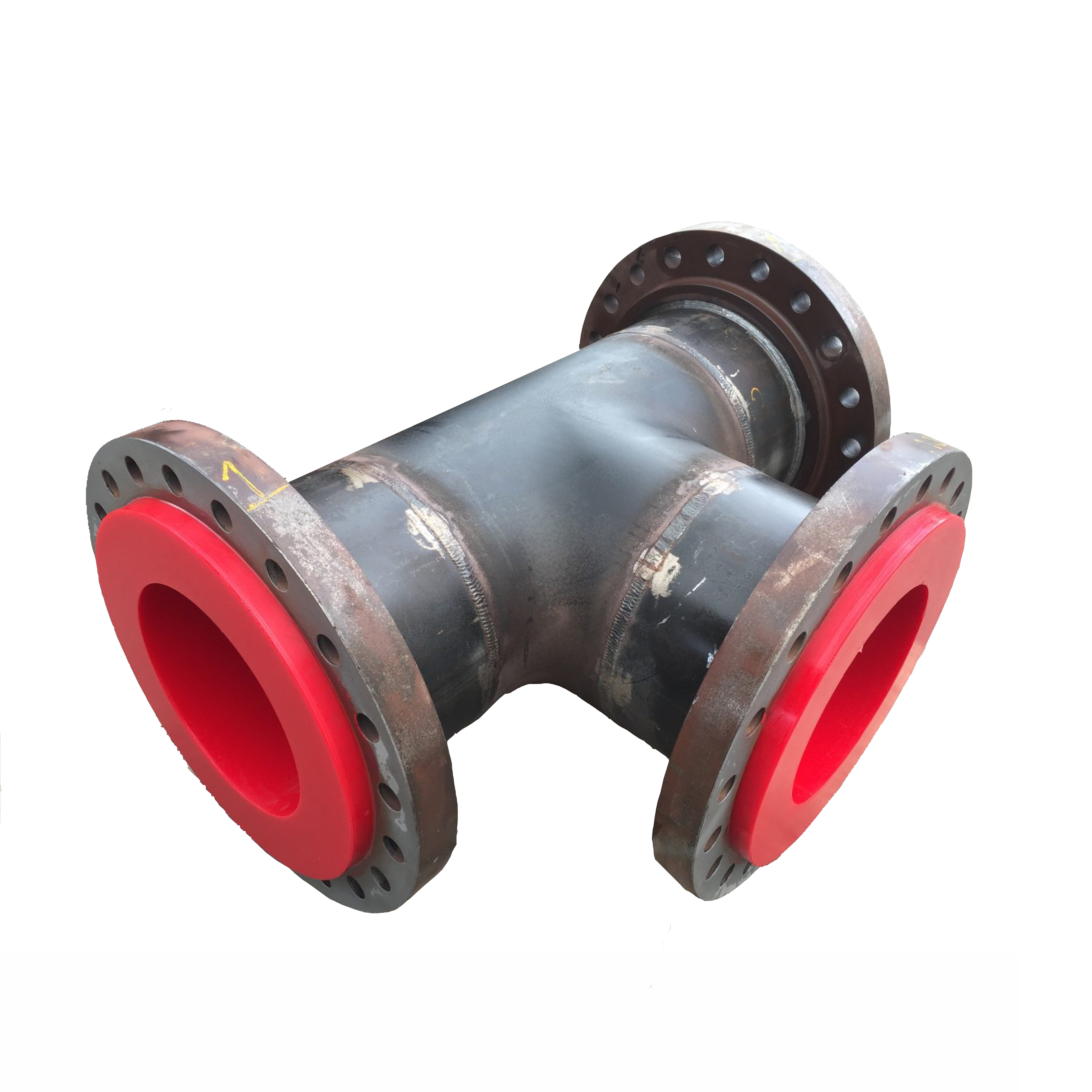

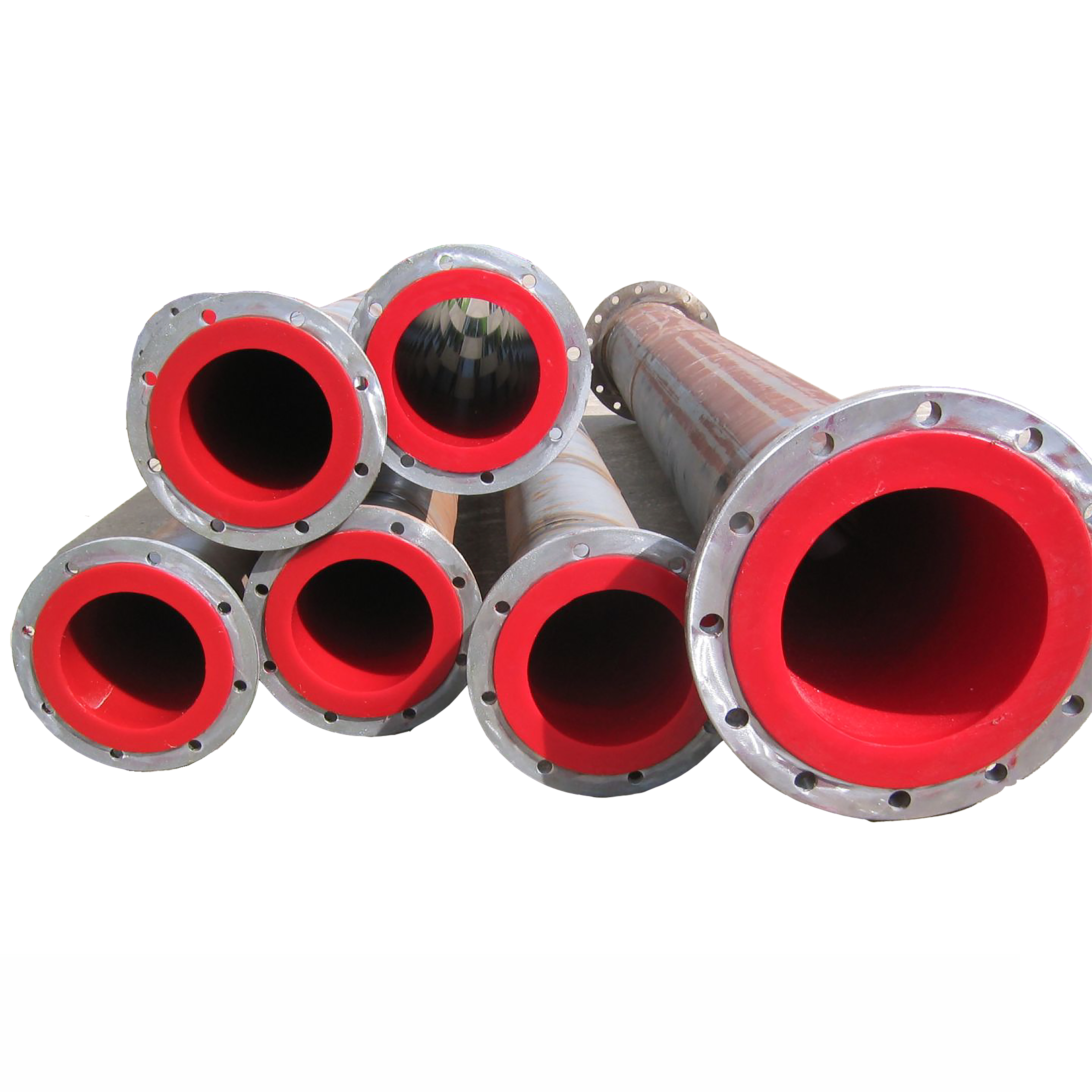

Polyurethane lined steel pipe: Polyurethane lining has the advantages of wear resistance and good corrosion resistance. Polyurethane lined pipelines are suitable for liquid-solid, gas-solid, and two-phase flow conditions. They are currently used in petroleum oil sands transportation, metallurgical mines, ore sand transportation, and chemical plant chemical medium transportation.

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).


Visitors and Exhibitions:

We participated in many exhibitions of polyurethane raw materials, polyurethane foam products and polyurethane PU foam machines. Our products left a very good impression to everyone at the show, some customers even placed orders on the spot.
