Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor

Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor
viscosity ,large particle

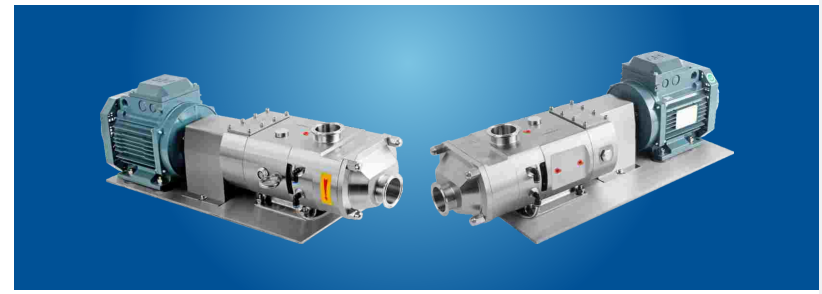

LGR-20 Twin Screw Pump to transfer higher vicosity and CIP Media
Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.
Specifications

Applications

Twin screw pump has strong self priming ablity, can transport solid particles, gas liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost, It has extra characteristics, that other volume pump do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.

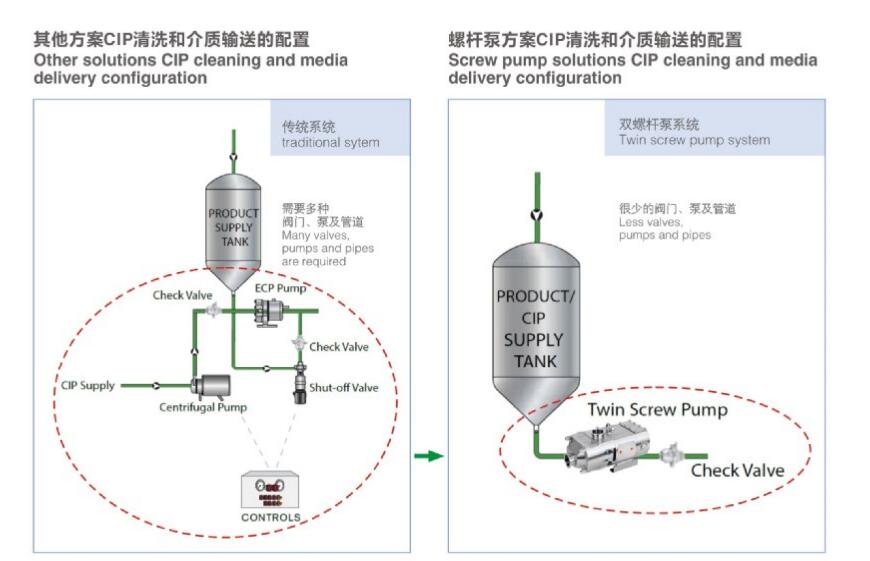

Twin screw pump for CIP Cleaning and media delivery configuration

With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .

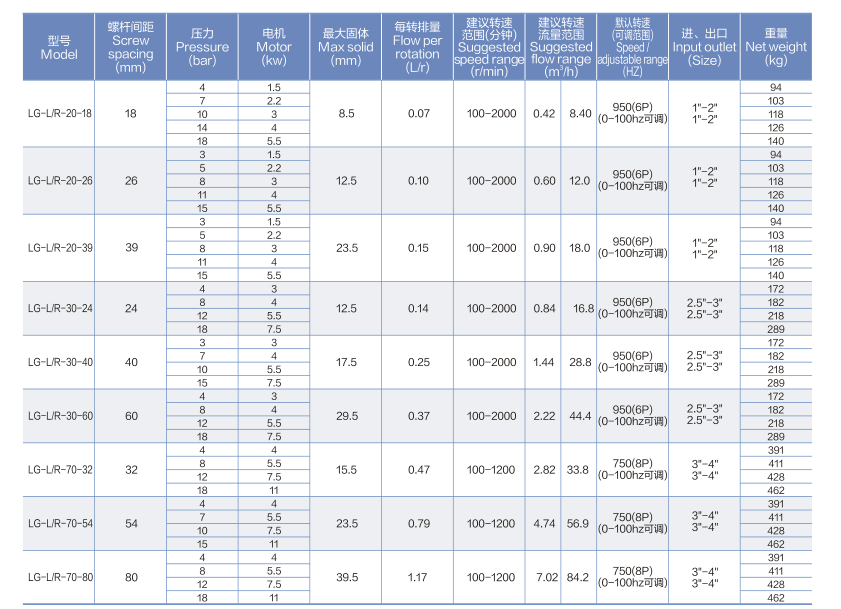

Selection table


Connection way

Donjoy was founded in 1993, with registered capital RMB105.58 million(about 15million USD) We focus on developing high-precision PID valve positioner, Valve Control unit, Valve Position feedback device, intelligent automatic control valve, proportional valve, process control valve, high purity pump, homogeneous mixing pump, cleaning technology, pressure vessel, pipeline safety control technology, high clean pipe fitting&pipeline accessories and integrating r&d, production and sales as an integrated national high-tech enterprises. Donjoy’s products are widely used in bio-pharmaceutical, food and beverage, wine, fine chemicals and other industrial fields. Donjoy’s leading technology and innovation solutions meets growing demand in the industry of bio-pharmaceutical, food and beverage from the whole world, special emerging market.

Raw material, processing technology, welding technology, surface treatment and other technology from Donjoy have achieved advanced level in international market. It also complies with a series of international standards and specifications such as ASME BPE, EHEDG, FDA and 3A , It has passed the EU Pressure Equipment Directive (PED-97/23/EC) and (MD-06/42/EC) issued by the German TÜV organization; the 3-A health standard certification issued by the 3A organization; China Safety Valve Special Manufacturing Equipment (TS) License , China Quality Certification Center (CQC) and Quality Management System Certification (ISO9001:2015) and many other international authoritative certifications.

With advanced technology, excellent quality and perfect after-sales service system, Donjoy was awarded as National High-tech Enterprise, Provincial Famous Trademark, Science and Technology Enterprise, Innovative Enterprise, Patent Demonstration Enterprise, R & D Center Enterprise, AAA Credit Enterprise and many other honorary
