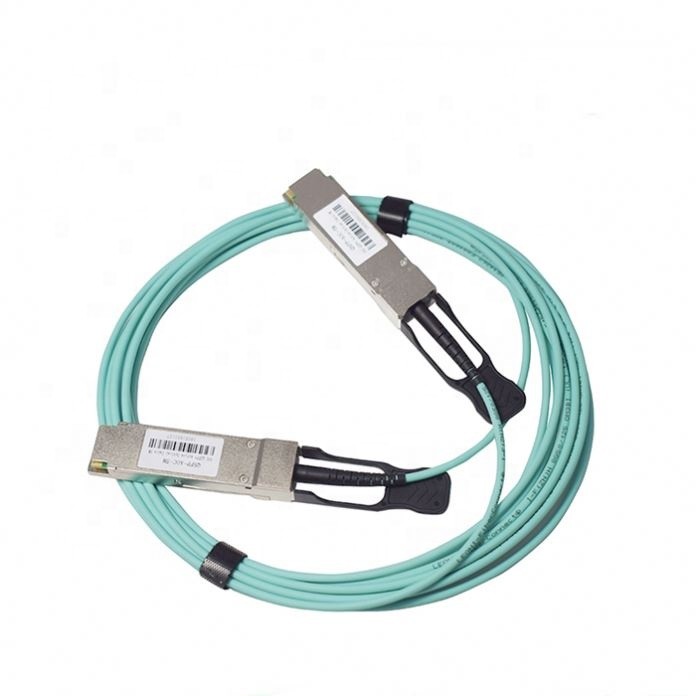

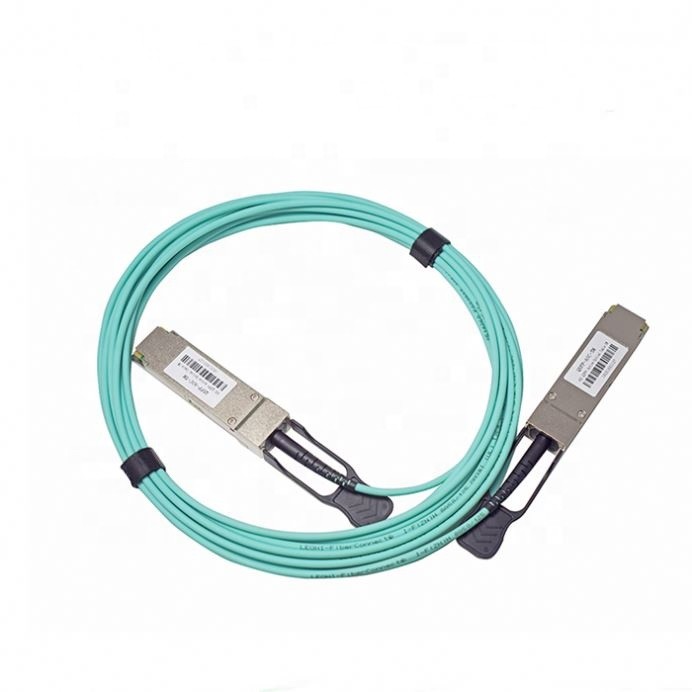

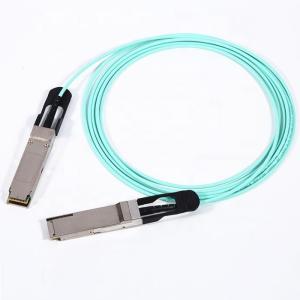

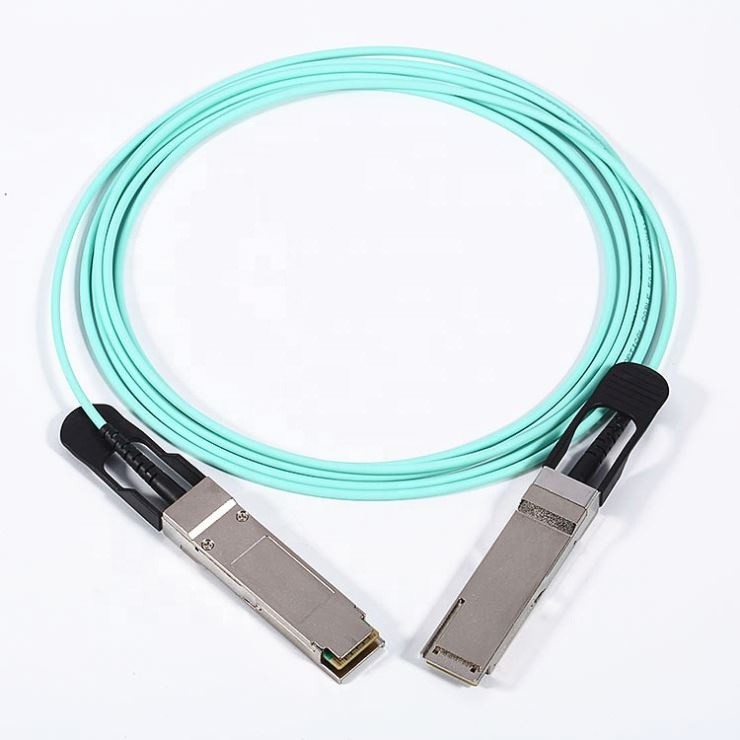

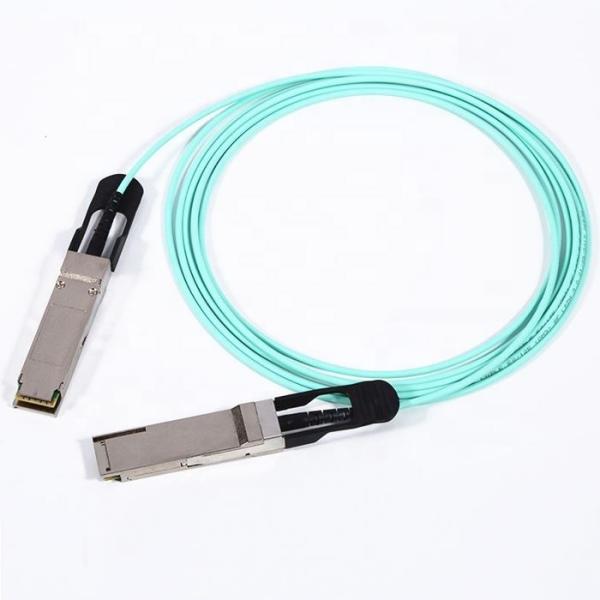

4 Channels 850nm OM3 OM4 MMF SFP+ 10g Aoc Cable

4 Channels 850nm OM3 OM4 MMF SFP+ 10g Aoc Cable

SFP+ 10G SFP+ Active Optical Cable AOC 1-50m optional

Product Description

QSFP + Active Optical Cables (AOCs) are active optical cables of the QSFP + interface. The module has a photoelectric conversion device inside to convert the electrical signals into optical signals and transmit distances up to 100 meters. The products have four channels, each channel transmission rate up to 10Gb / s, rate of 40Gb / s. Its low power consumption, low bit error rate, easy to manage, high-performance features are widely used in short distance high-speed connection such as 10 Gigabit Ethernet, 10 Gigabit switches, 10 Gigabit servers, supercomputers, cloud computing and cloud storage networks.

Features

• Transmission data rate up to 10.3Gbit/s per channel

• compliant with QSFP + MSA &SFF-8436 standard

• Hot pluggable electrical interface

• Differential AC-coupled high speed data interface

• Multi-mode optical fibre cable of up to 100m

• 4 channels 850nm VCSEL array

• 4 channels PIN photo detector array

• Supports serial ID functionality thru EEPROM

• Management Interface and digital diagnostic

• Low power consumption

• 3.3V power supply voltage

• Operating case temperature 0°C to +70°C

• RoHS compliant

Application

• 10Gbs ~ 40Gbs of Ethernet

• data storage and communications industry

• Server and data storage devices

• Switch / router / HBA and so on

• Data center and in-rack connections

Corporate profile

Shenzhen CY COM Product Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling fiber optic telecommunication products. The products we are producing include fiber optic connector, fiber optic patch cord, pigtail, optical fiber adapter, attenuator, FBT/PLC splitter, optical fiber closure, terminal box and ODF. These products are wide used in all kinds of fiber optic telecommunication field, such as telecom, CATV, fiber optic data transmission, LAN ect.

Our factory area covers 2000 square meters,with more then 300 production workers and 200 office stafffs.The annual output of the fiber optic patch cord is 6 million core and 5 million pieces adapters.The product are sold to more then 150 countries and regions in the word.Customers are from the state and regional telecommunication operators,electrice power,railway,military network,oil,media and other fields.

Main partaners

HUAWEI Technology Co., Ltd.

Zhongxing Telecommunication Equipment Corporation（ZTE）

FiberHome Technologies Group

SUNSEA TELECOMMUNCIATIONS CO., LTD

Famous communication enterprises and other domestic and international Communication engineering company,Equipment company and Trading Company

Certificate and Honor

ISO9001:2015; ISO14001:2015; High-tech enterprise cert; Letter patent
