Home > Multi-Function Packaging Machines >

300mm Sanitary Pads Packaging Machine With Plc Control System

Categories Sanitary Pads Packaging Machine
Brand Name: JSX
Model Number: QB-150G
Certification: CE/ISO
Place of Origin: China
MOQ: 1
Price: negotiation
Payment Terms: L/C, T/T
Supply Ability: 15 pcs/month
Delivery Time: 60-90 days
Packaging Details: Standard package
Item: Sanitary pads packing machine
Products: Sanitary pads , Lady's menstrual pads
Packing range: L(50-90)*W(30-150)*H(70-300)mm
Pads in a bag: 7-9 pads in a row
Speed: 55-60 ppm
Control system: PLC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

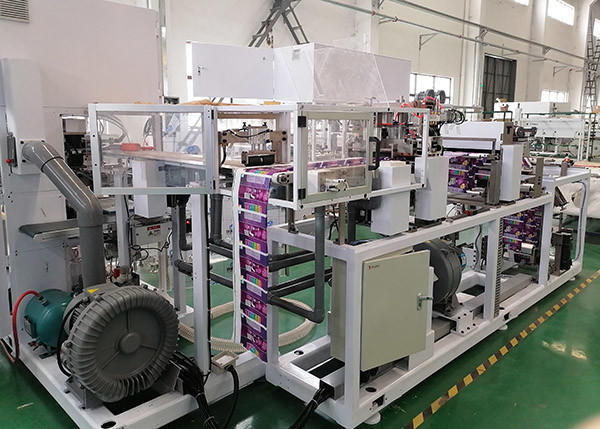

300mm Sanitary Pads Packaging Machine With Plc Control System


Fully Automatic Sanitary Pads Packaging Machine, Wide Package Range Packing Machine


Description:


With the development of Africa, The female has had an increasing consciousness of hygiene products. There is a great potential market in Africa. To help local businesses to grow, JSX QB-150G is a great automatic lady's sanitary pads packing machine. It is designed to pack the pads from the production line. It can have two functions, online and offline models, which meet different customers. Good products have a good package. Through the packing machine, the package has a neat and clear sealing edging. It is one of the popular sanitary pad packing machines.


Characteristic:


1. Fully automatic model to improve the machine's performance and reduce cost


2. Wide package range, ranging from 9 pads to multi-row pantyliners


3. Electrical and technical parts from Imported brand keep high-qualified serve life


4. Servo motor-driving improves packing efficiency


Configuration:


No.NameBrand
1.Service MotorMitsubishi
2.HMIMitsubishi
3.ReducerShimpo
4.Temperature controllerOmron
5.VFDMitsubishi
6.Air cylinderSMC
7.PLCMitsubishi

Specification:


Model:QB-150G
Material:Complex film / PE film
Bag unwinding:Film in roll
Package bag size:L(50-90)*W(30-150)*H(70-300)mm
Machine Dimension:L(1050)*W(1280)*H(1800)mm
Weight:950kg
Power supply:3 Phase, 380V,50HZ
Air Consumption:0.3m³/min
Pneumatic:0.6Mpa
Speed:55-60 bag/min

Machine Packing service:


1. Waterproof and anti-rust, the perfect multi packaging measures of the machine, including PE film wrapping, aluminum paper covering and vacuuming, and wooden case.


2. As your requirements, it can be designed for you.


3. Shipping Port: Shanghai (usually).
