Integrating Sphere Spectrophotometer Colorimeter NR110 Over-the-Counter Medication Color Measurement Instrument

Categories Integrating Sphere Spectrophotometer
Brand Name: 3nh
Model Number: NR110
Certification: CE / FCC/ ROHS / TUV / ISO9001:2015
Place of Origin: P.R.China
MOQ: 1pcs
Price: Negotiable
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5000pcs per month
Delivery Time: 1 working day
Packaging Details: Packed in carton box
Illuminating/Viewing Geometry: 8/d
Measuring Aperture: Φ4mm
Weight: 450g
Repetitive Error: Standard deviation ΔE*ab≤0.08
Color Space: CIEL*a*b*C*h* CIEL*a*b* CIEXYZ
Language: English/Chinese
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Integrating Sphere Spectrophotometer Colorimeter NR110 Over-the-Counter Medication Color Measurement Instrument

Integrating Sphere Spectrophotometer Colorimeter NR110 Over-the-Counter Medication Color Measurement Instrument


Color can dramatically impact perception of medication efficacy and overall user experience. As a result, color becomes a significant factor in consumer behavior and, consequently, the commercial success of medications. This phenomenon is particularly relevant for over-the-counter medication manufacturers. Unlike prescription drugs, which are recommended to patients by doctors, over-the-counter (OTC) medications rely heavily on consumer perception for sales. As a result, OTC medication manufacturers must rely on Integrating Sphere Spectrophotometer Colorimeter NR110 to ensure that their products are as aesthetically pleasing as they are effective.


Product Description



Since 1998, from import to domestic, 3nh Integrating Sphere Spectrophotometer Colorimeter NR110 is an iconic milestone in color test industry. Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.

New Functions

Double Locating: Illuminating locating and cross locating
Double Measurement End Face: Large area measurement and small area measurement
New Integrating Sphere Design: More stable measurement
Equipped with Rechargeable High-Capacity Li-ion Battery

Important Features


1. Double Locating: Illuminating locating and precise cross locating.
2. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
3. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.
4. 4mm Measuring Aperture.
5. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
6. Configure CQCS3 software. Connect PC computer to realize more functions.
7. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
8. Hand-head structure: small and convenient; make the measurement easier.
9. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
10. Spending huge sums on high-end mold. Product consistency approaches 100%.
11. High cost performance: large output, good quality, cheap products.

Application


Integrating Sphere Spectrophotometer Colorimeter NR110 can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in Over-the-Counter Medication Color Measurement , plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.


Specifications



Model NumberNR110
Illuminating/Viewing Geometry8/d
Measuring ApertureΦ4mm
DetectorSilicon photoelectric diode
Locating MethodIllumination Locating & Cross Locating
Repetitive ErrorStandard deviation ΔE*ab≤0.08(Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instruments ErrorΔE*ab≤0.5
Color SpaceCIEL*a*b*C*h* CIEL*a*b* CIEXYZ
Color Difference FormulaΔ E*ab Δ L*a*b*Δ E*C*h*
Light Sources TypeD65
Light Source DeviceLED Blue Light Excitation
Light Source Life5 years, More than 1.6 million measurements
SensorSilicon Photoelectric Diode Array
Measuring Time1.5s
Data Storage100 Standards, 20000 Samples
Data PortUSB
Touch-Screennon
Operating Temperature0~40℃ (32℉~104℉)
Storage Temperature-20℃~50℃ (-4℉~122℉)
Humidity0~85%, No condensation
PC SoftwareCQCS3
Weight450G
Dimension205*68*80mm
BatteryLarge Capacity Li-ion Battery
Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm and Φ4mm Measuring Aperture
Optional AccessoryMicro-Printer, Powder Test Box
CertificatesCE & RoHS & TUV & FCC & ISO9001

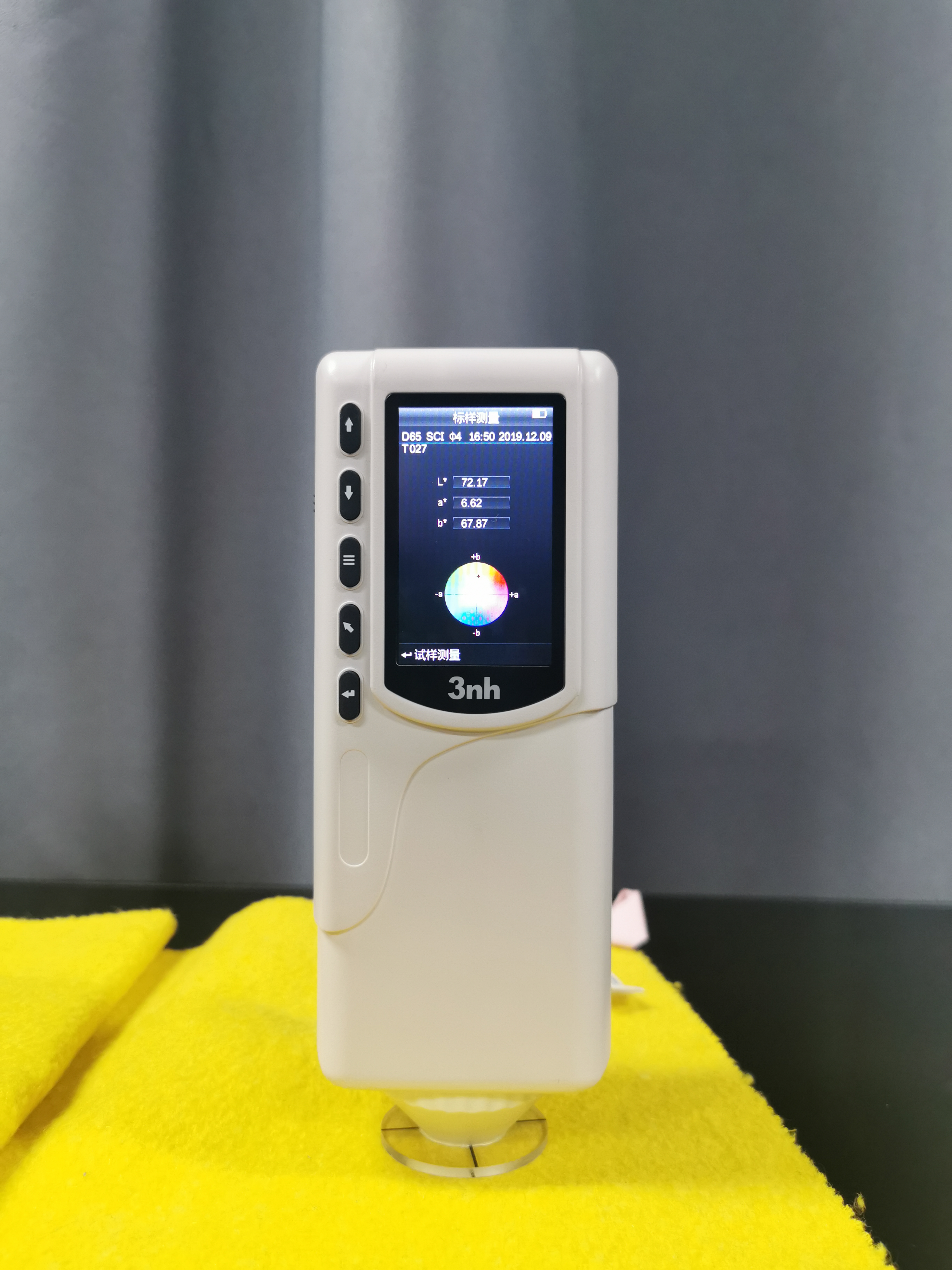

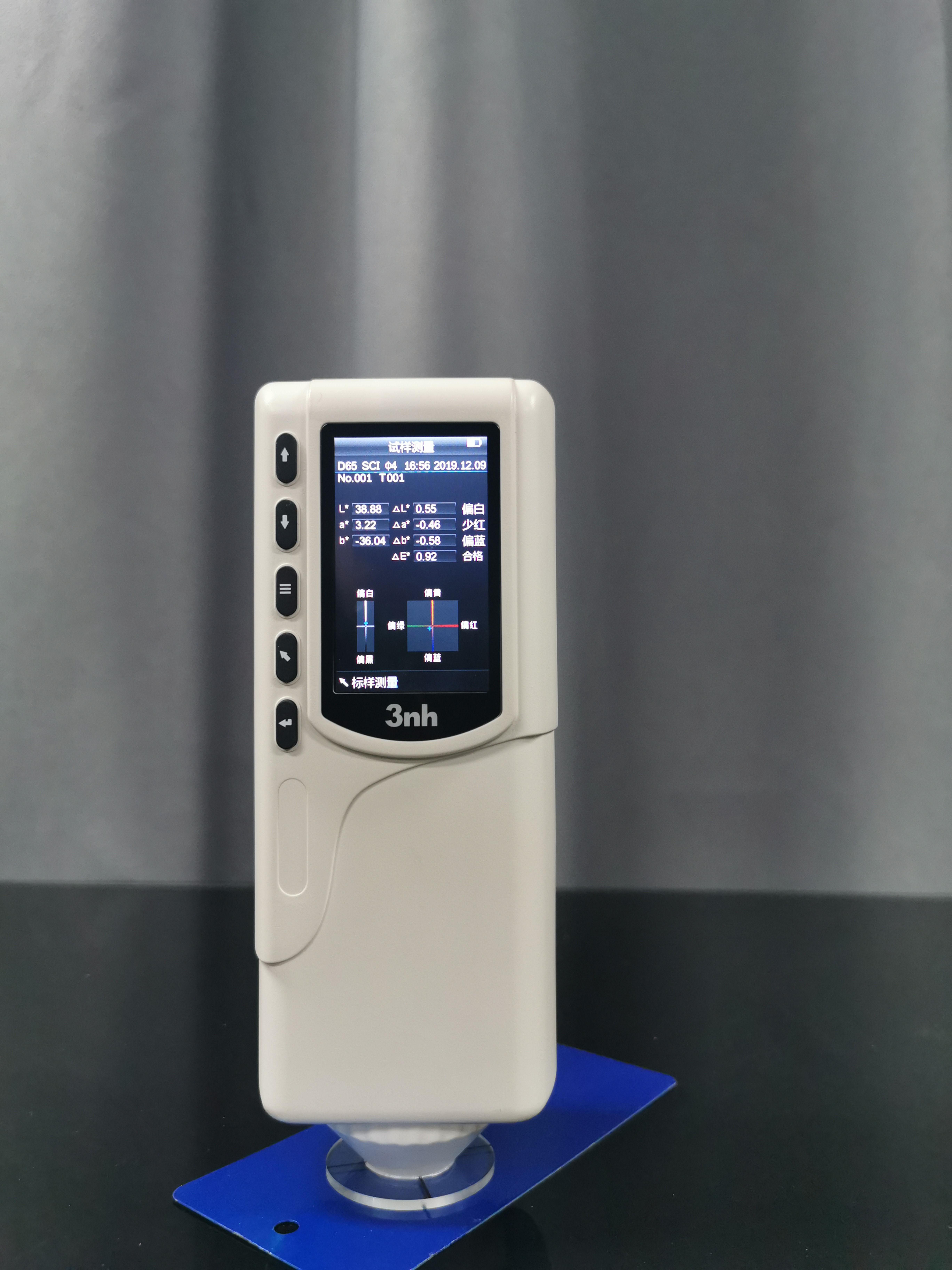

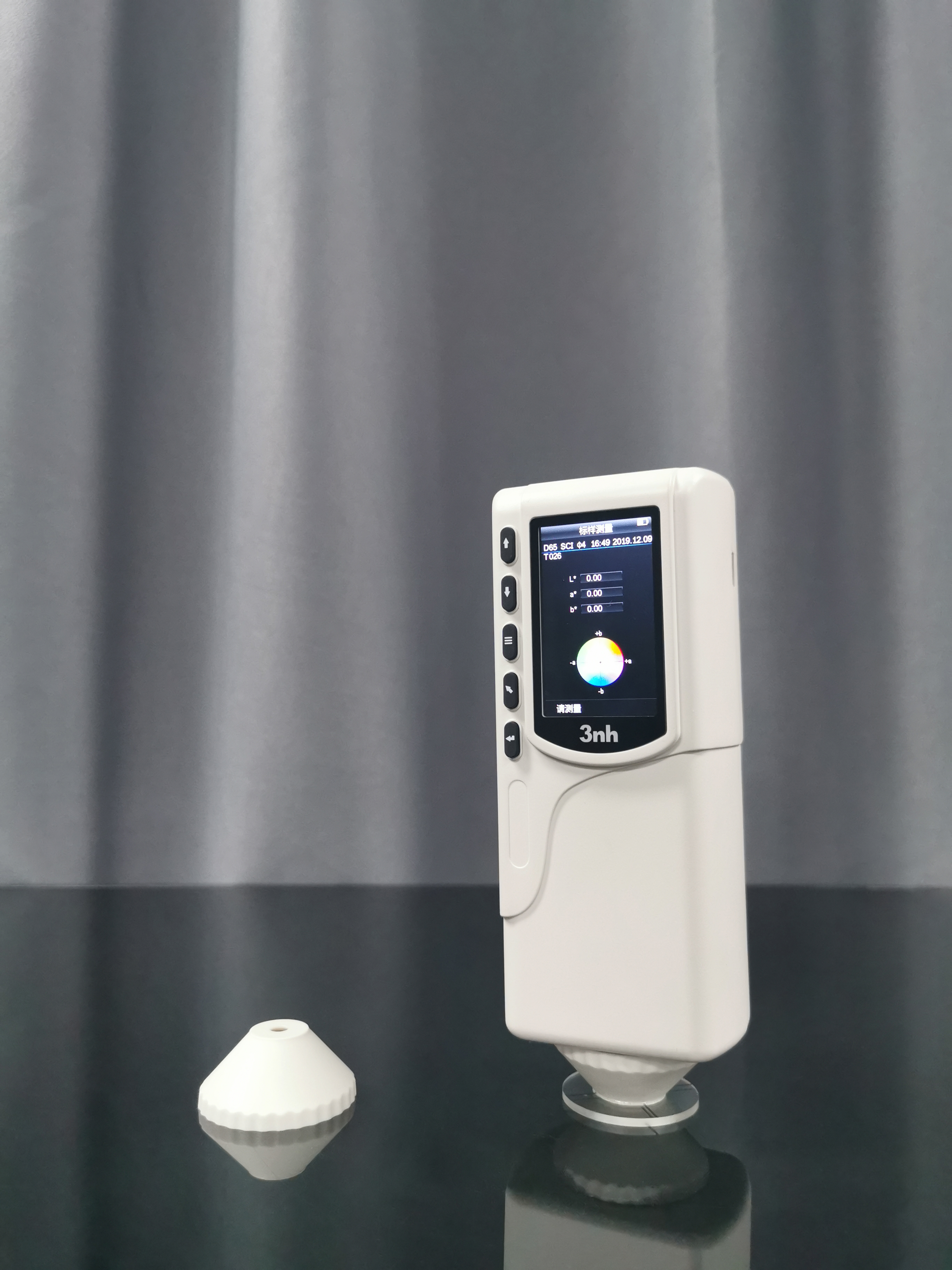

More pictures





FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products


Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
